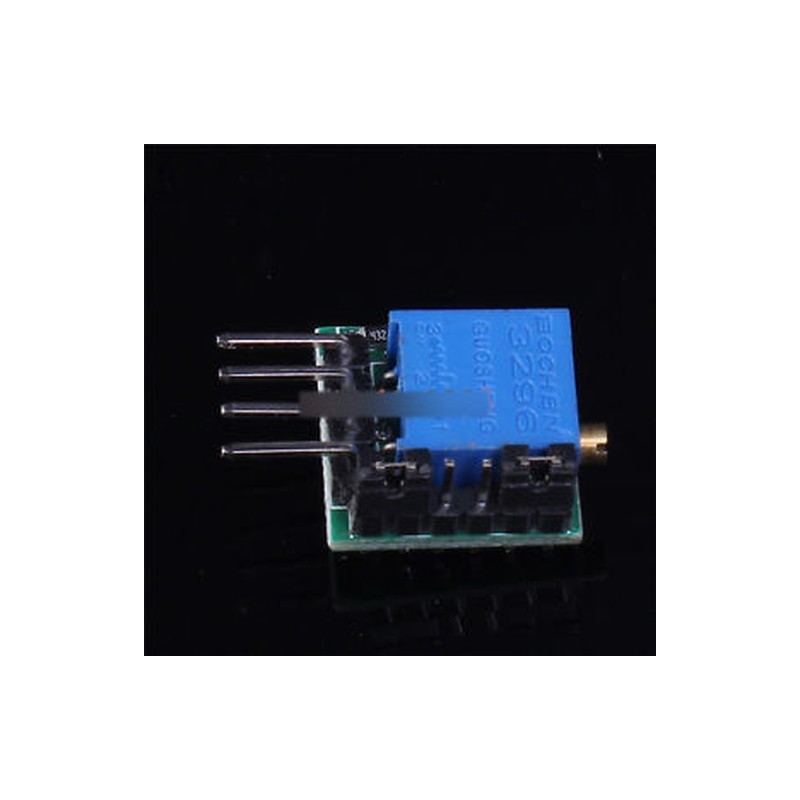

AT41 késleltetési áramkör modul időzítő kapcsoló 1s-40h DC 3-27V késleltető kapcsolóra

AT41 Delay Circuit Module Timing Switch 1s-40h DC 3-27V For Delay Switch
Product Introduction:1.After power on,Vo output port has no output,after Vi port input high level signal trigger,Vo output port has no output;after delay for some time,Vo output port output high level.Above two modes can be shifted by module wire jumper 2.Delay Time Adjustment Range:1s-40h3.Vo output port output high level;driving capacity is up to 1500mA (short time can up to 2500mA)4.Power Supply Voltage:DC 3-27V5.Note:when using module,load negative connects with power negative,load positive connects with module Vo port;that is controlling load positive on/off6.Application:delay switch,timer 7.Size:15*11*8mm8.Pin Space:2.54mm9.Package Included : 2 X AT41 Delay Circuit ModuleMax Operating Current:1)3V:0.27mA 2)5V:0.56mA 3)12V:1.6mA4)24V:4.4mA
Pin Definition:1.VCC:power 2.Vo:output port 3.TG:trigger signal input port (high level)4.GND:power ground Using Method:1.Delay time can be adjusted by poteniometer,range is 1s-20h2.Vo output port level can be set by wire jumer 1)1,2,3 pin are used to set timing time range,1-2 connection timing time is 1s-290s adjustable;2-3 connection timing time become bigger for 256 times,is 256s-20.5h adjustable 2)4,5,6 pin are used to set output port Vo state;4-5 connection:power on initial state has no output;after triggered has output;when timing time is over,there is no output;5-6 connection:power on initial state has output,after triggered there is no output;when timing time is over,it will restore ou
