> >>5PCS USB Nano V3.0 ATmega168 16M 5V Mini-vezérlő CH340G Arduino
Alacsonyabb ár! 5PCS USB Nano V3.0 ATmega168 16M 5V Mini-vezérlő CH340G Arduino Nagyobb
Előző Következő

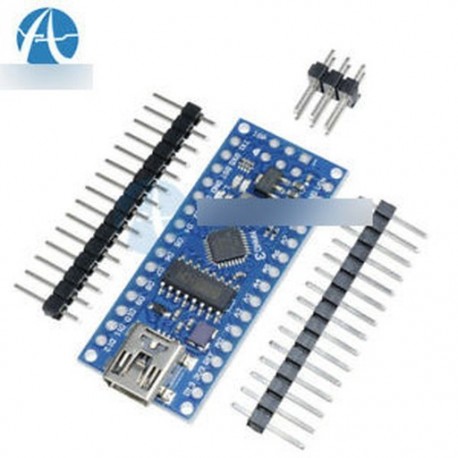

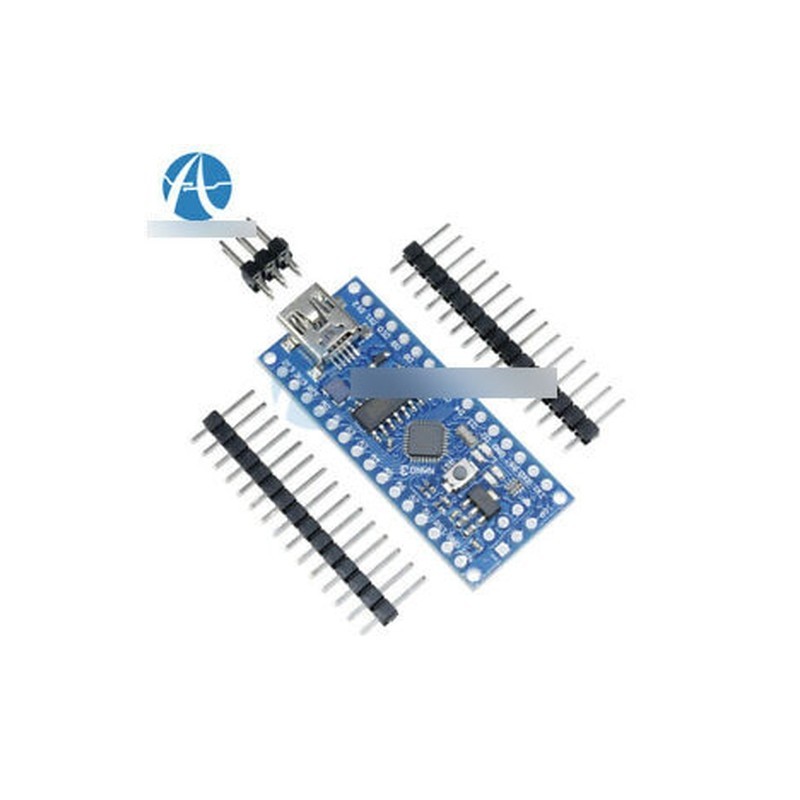

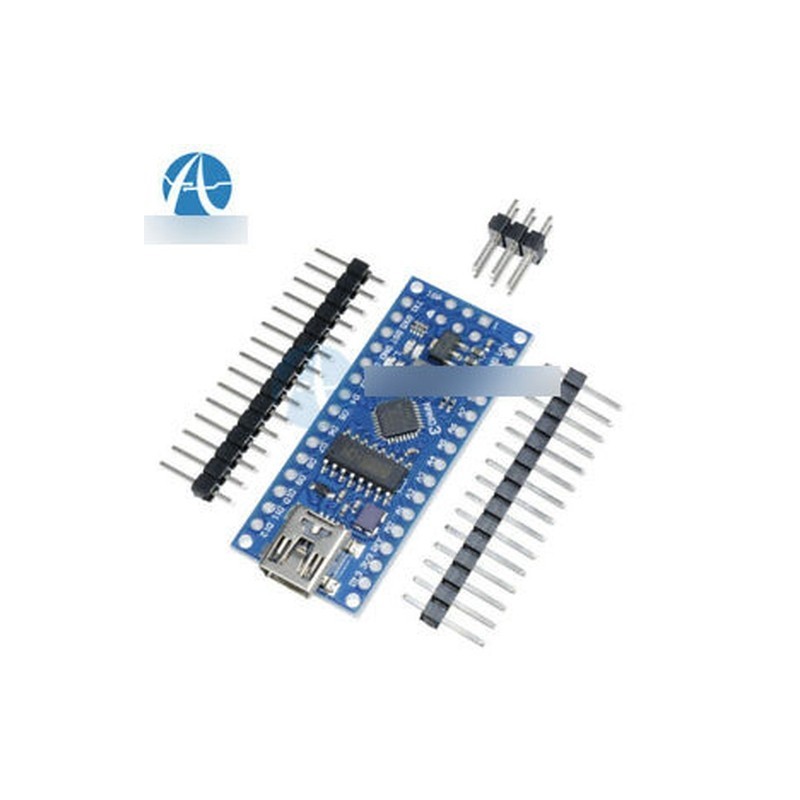

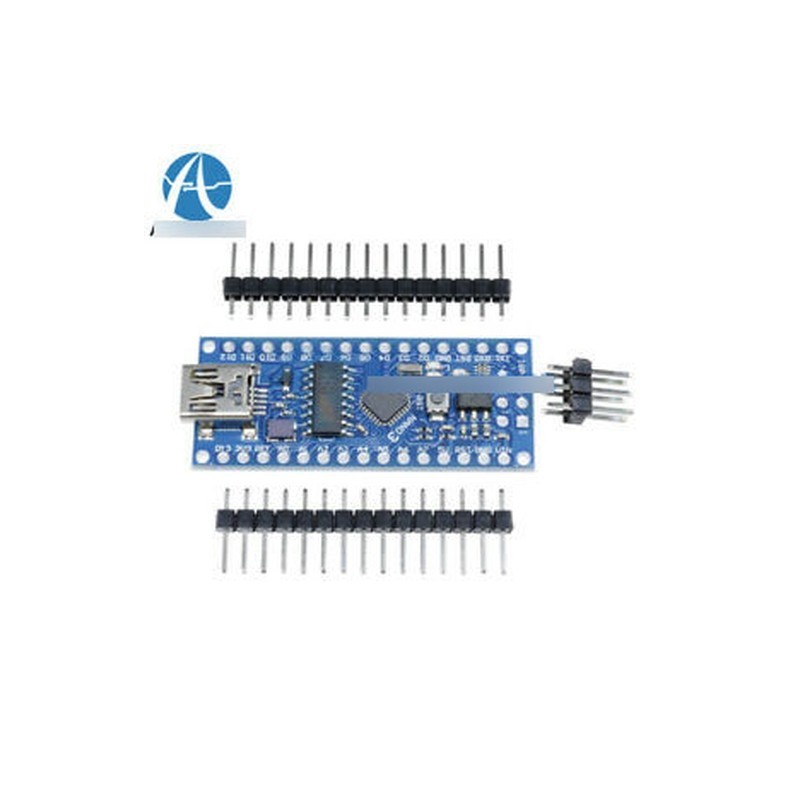

5PCS USB Nano V3.0 ATmega168 16M 5V Mini-vezérlő CH340G Arduino

311902553581

Új termék

5PCS USB Nano V3.0 ATmega168 16M 5V Mini-controller CH340G For Arduino

NEW version - Nano V3 constructed on the ATmega168 minicontroller (16MHz) has the small size and can be used together with model boards for solderless wiring (breadboard). It has similar structure with Arduino Diecimila/Duemilanove, but different size. To reduce the size, components are mounted on both sides of the PCB.
The board uses a chip CH340G as converter UART-USB. Chip CH340G - is a budget solution. With an operation frequency in 12Mhz, yields stable result of a data interchange (for correct installation of drivers on the computer follow the instruction).
Nano V3, can be powered via miniUSB-port (up to 500mA). External power supply 6-12V unregulated to output VIN, or 5V external power source to a regulate output of 5V. The power supply is automatically selected with the maximum voltage value.
* This Nano ATmega168 have PinOut for V3, not V2.
Technical details:
Nano V3 form-factor,
ATmega168 (16Mhz) minicontroller,
CH340G - USB-UART interface,
Input voltage 6-12V,
Output voltage 5V/800mA, 3.3V/180mA (Only in NEW vesrion),
MiniUSB - connection socket,
500mA resetable Fuse on USB port Package Included:
5PCS Nano V3.0 ATmega168 CH340G mini USB compatibile Arduino NANO

Bővebb leírás

-6 / 6 / Gyorsan Fogyó termék

1 777 Ft‎

-58%

4 230 Ft‎

Hozzáadás a kívánságlistához

Egyéb infó

5PCS USB Nano V3.0 ATmega168 16M 5V Mini-controller CH340G For Arduino

NEW version - Nano V3 constructed on the ATmega168 minicontroller (16MHz) has the small size and can be used together with model boards for solderless wiring (breadboard). It has similar structure with Arduino Diecimila/Duemilanove, but different size. To reduce the size, components are mounted on both sides of the PCB.
The board uses a chip CH340G as converter UART-USB. Chip CH340G - is a budget solution. With an operation frequency in 12Mhz, yields stable result of a data interchange (for correct installation of drivers on the computer follow the instruction).
Nano V3, can be powered via miniUSB-port (up to 500mA). External power supply 6-12V unregulated to output VIN, or 5V external power source to a regulate output of 5V. The power supply is automatically selected with the maximum voltage value.
* This Nano ATmega168 have PinOut for V3, not V2.
Technical details:
Nano V3 form-factor,
ATmega168 (16Mhz) minicontroller,
CH340G - USB-UART interface,
Input voltage 6-12V,
Output voltage 5V/800mA, 3.3V/180mA (Only in NEW vesrion),
MiniUSB - connection socket,
500mA resetable Fuse on USB port Package Included:
5PCS Nano V3.0 ATmega168 CH340G mini USB compatibile Arduino NANO
