5 X RFID IC kulcscímkék - Új 13,56 MHz RFID RC522 Közelség Modul Reader IC Térkép S50 Kit készlet ID kulcscímke

A cím elején szereplő szín/minta/méret/típus kerül kiszállításra!
New 13.56 Mhz RFID RC522 Proximity Modul Reader IC Karte S50 Kit Set ID Key Tag

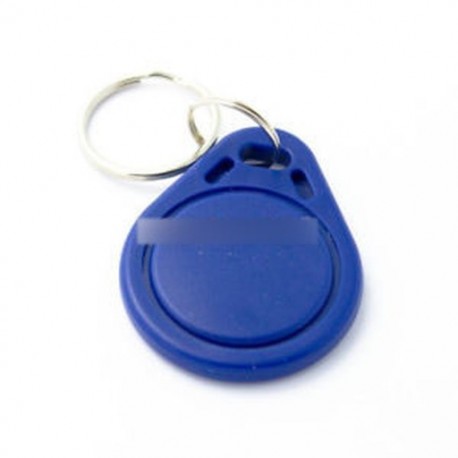

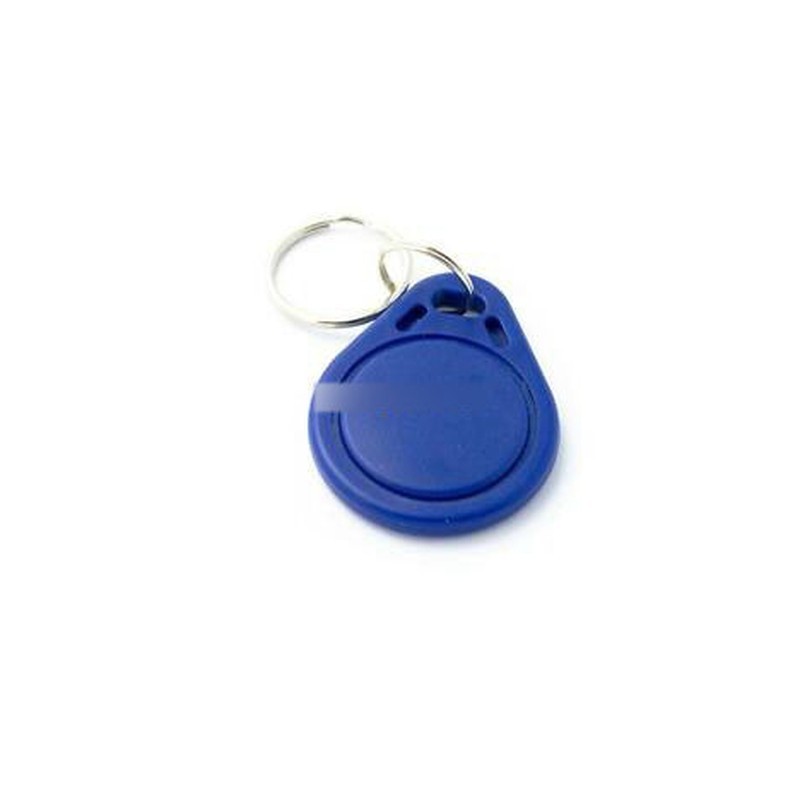

RFID IC Key Tags
Main Chip: Philips 1 S50;
Storage capacity: 8Kbit, 16 partitions, each partition with 2 grounp passwords;
Size: 30 * 40 * 3mm;
Operating Frequency: 13.56 MHz;
Communication speed: 106K Boud;
Read and write distance: 2.5 ~ 10cm;
Read and write time: 1 ~ 2ms;
Operating Temperature: -20 ℃ ~ 85 ℃;
Endurance:> 100,000 times;Typical applications:
enterprise / campus card, bus stored value card, express way fees, parking, district management,attendance systems, patrol system, enterprise systems, access control systems, radio frequency identification field and so on.

Package Included:5 * RFID IC Keyfobs Key Tags Token NFC TAG Keychain 13.56MHz ArduinoThin Smart Card
This card is compatible with NFC capable phones and tablets, it is Smart Card Tags.You can do many tasks use this tag, such as set an alarm, turn phone to silent etc.
If you don't know how to use it,please search YouTube to see.
There are many free applications on internet, so you can program very easy.100% brand new and high quality
Frequency: 13.56 MHz
Size: 85mm x 54mm x 0.9mm
Material: PVC, Waterproof
IC tag is suitable for 13.56MHz ISO14443A S50 card reader and reading distance is 0 - 10cm
(Reading distance depends on readers, not the cards)
User definable access conditions & password for each memory block
1K byte EEPROM memory (768 FREE BYTES availability)
Organized in 16 sector with 4 blocks of 16 bytes each (one block consists of 16 byte)
Write endurance 100,000 cycle
ISO standards :ISO 14443 / 14443A
Prefect support for:
Xperia™ P, Xperia™ S, Xperia™ sola,
HTC One X,
LG Prada 3,
Panasonic Eluga,
Samsung Galaxy Nexus, Samsung Nexus S, Galaxy S 3, Note 2, etc....Package included5 * Thin Smart Card13.56Mhz RFID ModuleModel: RC522
Sleep Current<80uA
Peak current<30mA
Operating Frequency13.56MHz
Read Range0～45mm
InterfaceUART TTL
Baud Rate115200
Data transfer rateMaximum10Mbit/s
Physical CharacteristicsSize50mm X 50mm
Ambient operating temperatureCelsius-20—80
Storage TemperatureCelsius-40—85
HumidityRelative Humidity 5% —95%
AgreementCompliance with ISO14443A standard，support S50、S70
Package included1PCSRC522 UnitThe MF522-AN module the the original Philips MFRC522 chip design circuit card reader, easy to use, low cost, and applies to the user equipment development, the reader and the development of advanced applications, the need for the user RF card terminal design/production. This module can be directly loaded into the various reader molds. Utilizes a voltage of 3.3V, through the SPI interface simple few lines directly with any user CPU motherboard connected communication can ensure that the module is stable and reliable work, distance card reader.
Electrical parameters:
1. Operating current :13-26mA/DC 3.3V
2. Idle current :10-13mA/DC 3.3V
3. Sleep current: <80uA
4. Peak current: <30mA
5. Operating Frequency: 13.56MHz
6. Supported card types: S50, S70
7. Product physical characteristics: size: 40mm X 60mm
8. Environmental Operating temperature: -20-80 degrees Celsius
9. Environmental Storage Temperature: -40-85 degrees Celsius
10.Relative humidity: relative humidity 5% -95%
11.Module interfaces SPI Parameter
12.Data transfer rate: maximum 10Mbit/s
Package included1*RC522 Unit
13.56MHz RC522 Antenna RF Module

MF RC522 is applied to the highly integrated read and write 13.56MHz contactless communication card chip, It launched by the company for the "table" application of a low-voltage, low-cost, small size of the non-contact card chip to read and write, smart meters and portable handheld devices developed better choice. The MF RC522 use of advanced modulation and demodulation concept completely integrated in all types of 13.56MHz passive contactless communication methods and protocols. 14443A compatible transponder signals. The digital part of to handle the ISO14443A frames and error detection. In addition, support rapid CRYPTO1 encryption algorithm, terminology validation products. MFRC522 support series of high-speed non-contact communication, two-way data transmission rate up to 424kbit/s. As new members of the 13.56MHz reader card series of highly integrated chip family, MF RC522 MF RC500 MF RC530 There are a lot of similarities, but also have many of the characteristics and differences. Communication between it and the host SPI mode helps to reduce the connection narrow PCB board volume, reduce costs.
RFID module:
The MF522-AN module the the original Philips MFRC522 chip design circuit card reader, easy to use, low cost, and applies to the user equipment development, the reader and the development of advanced applications, the need for the user RF card terminal design/production. This module can be directly loaded into the various reader molds. Utilizes a voltage of 3.3V, through the SPI interface simple few lines directly with any user CPU motherboard connected communication can ensure that the module is stable and reliable work, distance card reader.
Electrical parameters:
1. Operating current :13-26mA/DC 3.3V
2. Idle current :10-13mA/DC 3.3V
3. Sleep current: <80uA
4. Peak current: <30mA
5. Operating Frequency: 13.56MHz
6. Supported card types: S50, S70
7. Product physical characteristics: size: 40mm X 60mm
8. Environmental Operating temperature: -20-80 degrees Celsius
9. Environmental Storage Temperature: -40-85 degrees Celsius
10.Relative humidity: relative humidity 5% -95%
11.Module interfaces SPI Parameter
12.Data transfer rate: maximum 10Mbit/s
Package included1 x RFID 13.56MHz RC522
