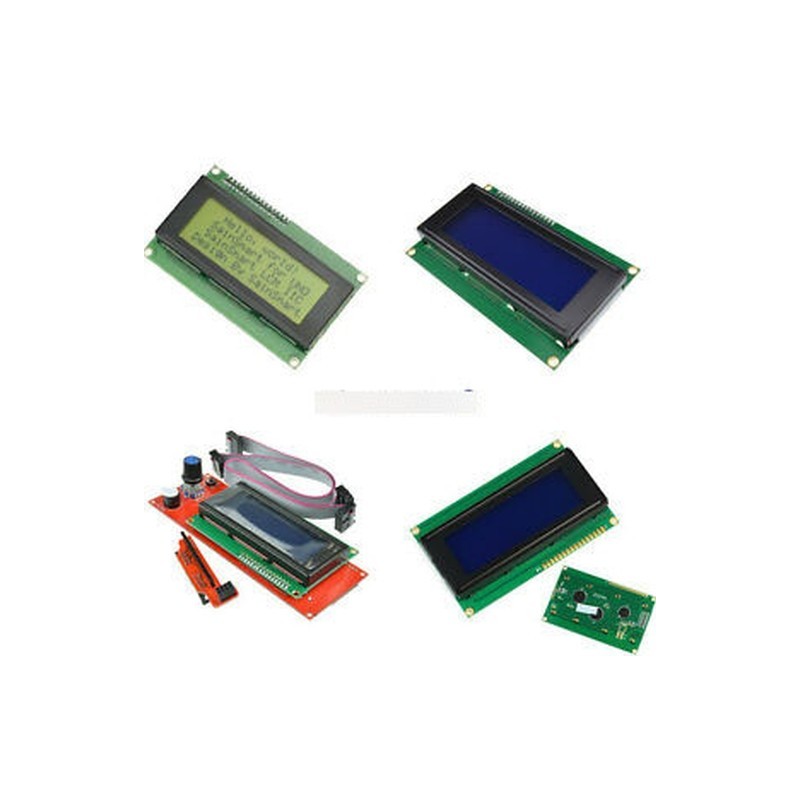

5 V 2004LCD kék kijelző - 3.3 / 5V IIC I2C TWI SPI 20X4 karakteres sárga / kék LCD kijelző modul

A cím elején szereplő szín/minta/méret/típus kerül kiszállításra!
3.3/5V IIC I2C TWI SPI Interface 20X4 Character Yellow/Blue LCD Display Module
Description:3.3V 2004LCD Display Color Options:
Blue Yellow
ERM2004FS-2 is 20 characters wide,4 rows character lcd module,SPLC780C controller (Industry-standard HD44780 compatible controller),6800 4/8-bit parallel interface,single led backlight with white color included can be dimmed easily with a resistor or PWM,fstn-lcd positive,black text on the white color,high contrast,wide operating temperature range,wide view angle,rohs compliant,built in character set supports English/Japanese text, see the SPLC780C datasheet for the full character set.It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held equipment.
Specification
Gross Weight (kg)
0.0800Manufacturer
EastRisingSeries Number
ERM2004-2Part Number(Order Number)
ERM2004FS-2Connection
Pin HeaderDisplay Format
20x4 CharacterSunlight Readable
YesTouch Panel Optional
NoOutline Dimension
98.00(W)x60.0(H)x14.0(T)mmVisual Area
76.00x25.20mmActive Area
70.40(W)x20.80(H)mmCharacter Size
2.95x4.75mmDiagonal Size
NoDot (Pixel) Size
0.55x0.55mmDot Pitch
0.60x0.60mmIC Package
COBIC or Equivalent
AIP31066 , HD44780, KS0066 , SPLC780 , ST7066Interface
6800 4-bit Parallel , 6800 8-bit ParallelDisplay Type
FSTN-LCD GreyResponse Time(Typ)
NoContrast Ratio(Typ)
NoColors
NoViewing Direction
6:00Viewing Angle Range
NoAppearance
BlueBrightness(Typ)
NoBacklight Color
Blue ColorBacklight Current (Typ)
75mAPower Supply(Typ)
3.3VSupply Current for LCM(Max)
2000uAOperating Temperature
-20℃~70℃Storage Temperature
-30℃~80℃
Package included:1 * 3.3V IIC/I2C/TWI/SPI Serial Interface 20X4 Character LCD Module(Blue/Yellow Backlights)
5V 2004LCD DisplayBlue Yellow
1. The module is a low-power consumption character LCD Module with a built-in controller.
2. The module can be easily interfaced with a MCU.
3. Display Format: 20 Characters x 4 lines.
4. It is fantastic for Arduino based project.
5. Supply voltage: 5V.
6. Fully assembled and tested Serial LCD 20x4 Module.
7. White Text, Blue backlight.
8. Analog Interface.
9. Size: 98 x 60 x 12mm.
Package included1 x 2004 204 20x4 Character LCD Display Module 2004 LCD Blue/Yellow Blacklight
I2C 2004LCD DispalyBlue Yellow This is IIC Serial 20X4 LCD module . With this I2C interface LCD module, you will be able to realize data display via only 2 wires.
If you already has I2C devices in your project, this LCD module actually cost no more resources at all. It is fantastic for Arduino based project.
Specification:
Interface: I2C
I2C Address: 0x27(addres can't be changed )
Sofware version :0022
SDA (DATA) -> analog input pin 4
SCL (CLOCK) -> analog input pin 5
Pin Definition : GND、VCC、SDA、SCL
Back lit (yellow with white char color)
Supply voltage: 5V
Pcb Size : 60mm X 99mm
Contrast Adjust : Potentiometer
Backlight Adjust : Jumper
Package included1 x Blue/Yellow Display IIC/I2C/TWI/SPI Serial Interface 2004 Character LCD Module
2004 LCD Display 1.4 Reprap AdapterAfter connecting this panel to your Ramps you don't need your pc any more, the smart controller supplies power for your SD card. Furthermore all actions like calibration, axes movements can be done by just using the rotary encoder on the smart controller
Print your 3D designs without PC, just with a g-code design stored on the SD card.
Firmware: You need Marlin firmware v3 or newer. If you are using older firmware, you must re-flash your board.
Size: 15cm x 5.8cm.
Compatible With RAMPS 1.4 Reprap Mendel
Package Included:
1 x 20*4 2004 LCD Display 3D Printer Controller Adapter RAMPS 1.4 Reprap Mendel2004 LCD Displ
