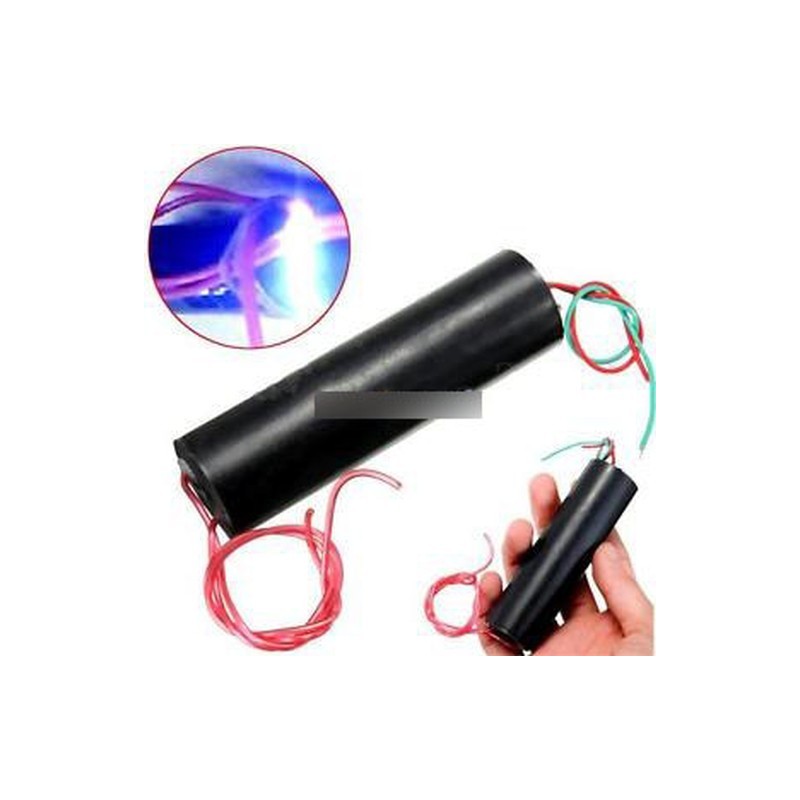

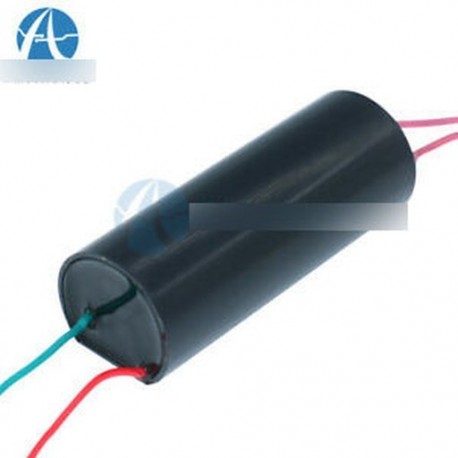

400 kV 56 mm - 400kV Ultrahigh áramfejlesztő DC3V-12V fokozatvilágítás

A cím elején szereplő szín/minta/méret/típus kerül kiszállításra!
20kV/50/400kV/500kV/1000KV/20kV Ultrahigh Power Generator DC3V-12V Step-up Light
20kV/400kV/500kV/1000KV/20000V Ultrahigh Power Generator DC 3V-12V Step-up Light

Description:
400kV 56mm/65mm Generatorinput voltage: DC 3 V to 6 VInput current: 2 A - 5 AHigh pressure type: the type of pulse currentOutput voltage: 400000 v(Please pay attention to safety)High pressure discharge distance between: 10 mm - 20 mmThe output high voltage wire length: 100 mmInput power cord length: 100 mm (the red line is positive)Wiring:Red and green power connection red line:" " green line "-"output : the other side ,same color cablePlease notice:the high-voltage module should avoid the use of electricity in high voltage no-load . (Power must be adjusted to a suitable distance to the high-voltage output line , battery capacity is proportional to the distance and the use of the high-pressure arc ( not a voltage as high as possible , you must provide enough current ) . Experimental test of the arc distance from short to long , Do not exceed the maximum arc distance electricity, energy can not be released due to high pressure , can easily damage the module. )Work: intermittent , continuous work does not allow more than 1 minute and the output side does not allow shorting . Improper voltage and long working hours easily damaged modulePackage included:1 x DC 3v-6v to 400kV 400000V Boost Step-up Power Module High-voltage Generator
1000kV Generator
Specifications:
Module type: MC-901
Input voltage: 3.7V-7.4V
Input current: 0.5A-1A
Input wire length: 9 cm
High voltage type: pulse DC type
Output voltage: 800KV-1000KV (please pay attention to safety when using)
Output current: 0.5A-1A
Output length: approximately16 cm
High voltage bipolar discharge distance: 1.5 cm -2 cm
Size:88x26mm(LxD)
Module use note:
1, high voltage module should avoid the use of high voltage no-load, power must be
adjusted before the high voltage line end of the right distance, high voltage wire drawing
distance and the use of battery voltage and capacity is proportional to.
2, the test arc distance from short to long experiment, when the power is prohibited
beyond the longest arc distance, due to the high pressure energy can not be released,
very easy to damage the module.
3, the power of the module, the internal heat is not heat, so not a long time to work.
Package include1X 1000kV High voltage inverter500kV GeneratorPeripheral circuit is simple (just plug in switches, batteries can be) the discharge intensity violent.
Module Model: MCY-12-1
Physical volume: Length 70X 32mm diameter
Input voltage: 6V-12V
Input Current: 0.5A-1A
Input line length: 23 cm
High voltage type: DC type pulse
Output voltage: about 500KV (please pay attention to safety when used)
Output Current: 0.5A-1A
Output line length: about 92 cm
High voltage bipolar discharge distance: 2 cm -5 cm
Features:
This module is a science of small production with high voltage inverter transformer / booster finished module
After the input terminal DC6V-12V voltage can get tens of thousands of volts of direct current high voltage at the output,It can be used for high school science experiment, electronic equipment, negative ion generator, high voltage source when using scientific small production,Module uses the Tesla coil principle is made,
the output high voltage pulse current, small size, high efficiency
Precautions for use:
1, to avoid the use of electricity at high voltage load, must adjust the proper distance
between the front end of the high-voltage power-
2. to test the arc distance from short to long experiment, when power is strictly prohibited exceed
the maximum arcing distance, energy can not be released due to high pressure, easy to damage the module.
3, power module, the internal should not heat, so we can not work long hours.
4, determine whether the battery capacity can drive maximum power output of the battery
voltage measurement approach is arcing time. If 6V or so you can output the maximum power.
5, two small-capacity lithium series is 7.2V, measured in arc-state voltage has dropped to about 4V,
the capacity of the smaller voltage pull lower. It is proposed to use lithium 2000MA above,
the best conditions with more battery 4000MA.
Package includes:1x DC12V DC pulse high-voltage module20000V Generator
Output voltage: 15000V-20000V adjustable
Rated power: 5W
Mounting hole diameter: 5mm
Hole center distance: 112mm
Size: 60*70*30mm
Note: Small red and black line is input, red is 12V power supply positive input, black is negative input, thick red line is high voltage positive output, thick black line is high voltage negative output.
Package Included 1PCS x DC 12V to 20000V High-Voltage Electrostatic Generator Negative Ion Generator20KV GeneratorMaterial: Metall, Kunststoff
Farbe: schwarz und
Groesse: 19 x 20 x 18 mm (L x B x H)
Gewicht: 19g
Eingangsspannung: DC3.6V-6V
Eingangs-Strom: 1.5A
Ausgangsspannung: DC20KV (Bitte achten Sie auf Sicherheit, wenn verwendet)
Ausgangsstrom: 0,05A
Input Line Laenge: ca. 110 mm (rot ist positiv)
Ausgangsleitungslaenge: ca. 110mm
Hochspannungs-Bipolar-Entladungsabstand: 5mm
Hohe Art: Impulsstrom
Struktur: Hoch- und Niederspannungs integrierte
Package included:1 x 20 kV-Boost-Step-up Power Module
