> >>2S 3A 7.4 8.4V 2 cellás Li-ion 18650 lítium Lipo akkumulátor BMS védelmi panel PCB
Alacsonyabb ár! 2S 3A 7.4 8.4V 2 cellás Li-ion 18650 lítium Lipo akkumulátor BMS védelmi panel PCB Nagyobb
Előző Következő

2S 3A 7.4 8.4V 2 cellás Li-ion 18650 lítium Lipo akkumulátor BMS védelmi panel PCB

311868262107

Új termék

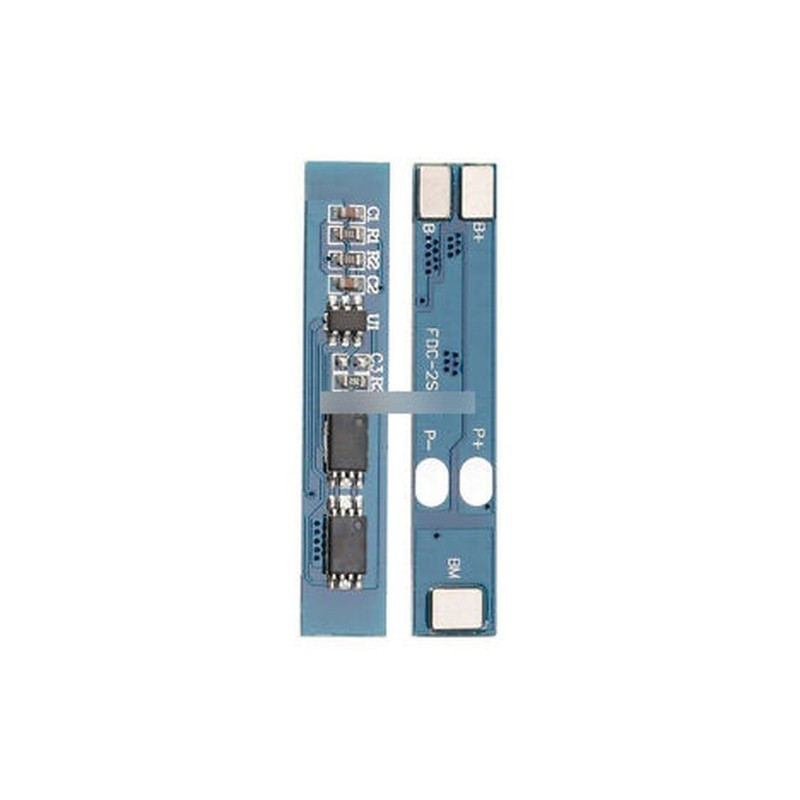

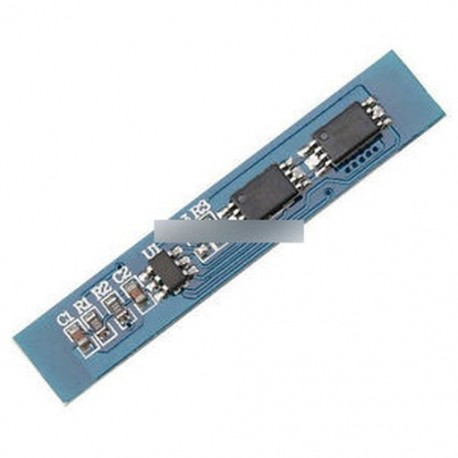

2S 3A 7.4 8.4V 2 cell Li-ion 18650 Lithium Lipo Battery BMS Protection Board PCBDescription
Short circuit protection
Overcharge protection
Over-discharge protection
Overcurrent protection
Overcharge Detection Voltage: 4.25-4.35V±0.05V
Over Discharge Detection Voltage: 2.3-3.0V±0.05V
Maximum Working Current: 3A
Transient Current: 5A
Operating Temperature: -40-50 degree
Internal Resistance: Less than 45m Ω
B B-: The interface of battery core
P P-: The connector of battery board
MB: The connection point between the batteries
B : Battery V Positive
B-: Battery V- Negative
P : Output / Charging V
P-: Output / Charging V-
Size: Approx. 36x6x1mm/ 1.42" x 0.24" x 0.04"Package Included:
1PC*2S Li-ion Lithium Battery 18650 Charger P

Bővebb leírás

-9 / 10 / Gyorsan Fogyó termék

121 Ft‎

-58%

289 Ft‎

Hozzáadás a kívánságlistához

Egyéb infó

2S 3A 7.4 8.4V 2 cell Li-ion 18650 Lithium Lipo Battery BMS Protection Board PCBDescription
Short circuit protection
Overcharge protection
Over-discharge protection
Overcurrent protection
Overcharge Detection Voltage: 4.25-4.35V±0.05V
Over Discharge Detection Voltage: 2.3-3.0V±0.05V
Maximum Working Current: 3A
Transient Current: 5A
Operating Temperature: -40-50 degree
Internal Resistance: Less than 45m Ω
B B-: The interface of battery core
P P-: The connector of battery board
MB: The connection point between the batteries
B : Battery V Positive
B-: Battery V- Negative
P : Output / Charging V
P-: Output / Charging V-
Size: Approx. 36x6x1mm/ 1.42" x 0.24" x 0.04"Package Included:
1PC*2S Li-ion Lithium Battery 18650 Charger P
