2PCS XL4015 DC-DC leállítható állítható tápegység modul lítium töltő 5A

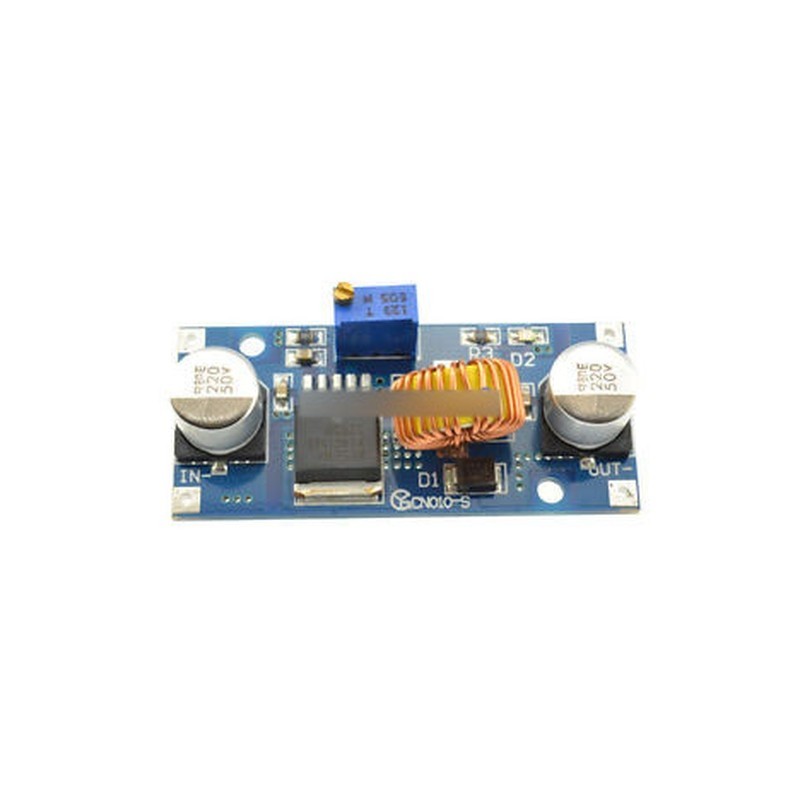

2PCS XL4015 DC-DC Step Down Adjustable Power Supply Module Lithium Charger 5A

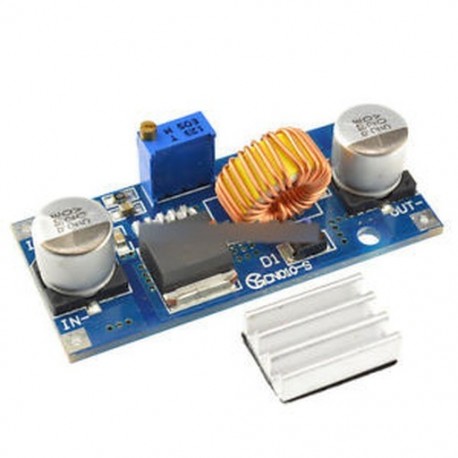

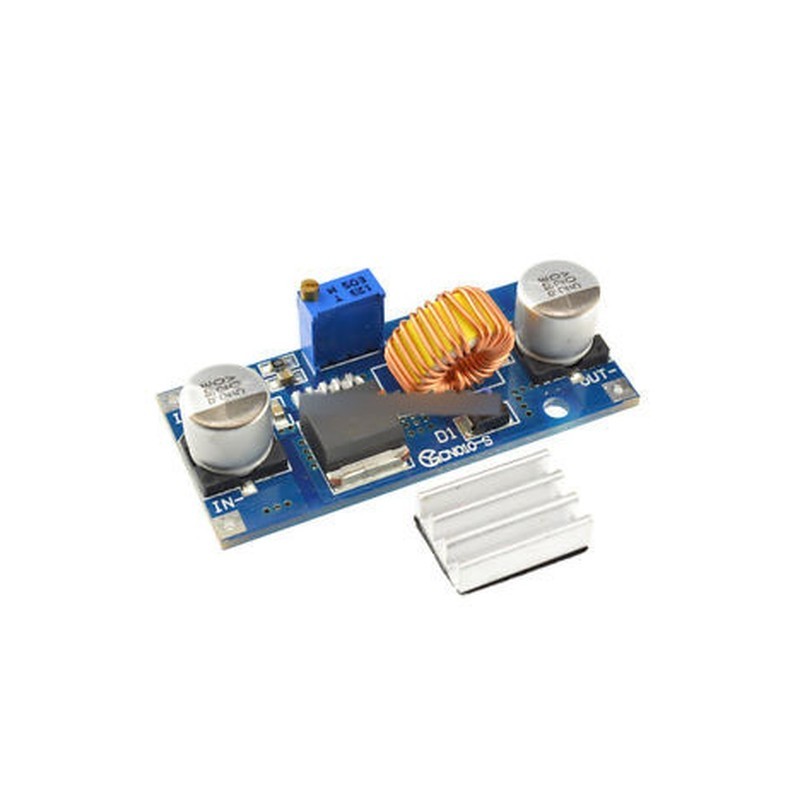

FeaturesThe DC-DC module based on LM2596 advocate current to 3.0A, but only to 1.8A.However, being introduced module adds a heatsink, using high-power devices.This module can easily reach 4A, 50W, add heat sink circumstances can reach 75W, has a high price!!
Module highlights: 5A high power、high efficiency and low ripple with power indicator !!!1、Input voltage range4～38VDC(Note:input voltage not exceeding 38V)
2、Output voltage range1.25-36VDC adjustable
3、Output current: 0-5A, recommended for use in 4.5A.
4、Output power:75W
5、Working temperature: -40~ 85 degrees
6、Operating frequency: 180KHz
7、Efficiency:96% （max)
8、Short circuit protection: yes(limit current 8A).
9、Over temperature protection
10、Input reverse polarity protection: None (if required, high current diode in series with the input).
11、L x W x H = 54 * 23 * 18mm
Application:The DC/DC buck module applications the input voltage is higher than the output voltage of the buck field, such as battery, power transformer, DIY adjustable regulated power supply, 24V Vehicle notebook power supply,industrial equipment buck.12V buck to 3.3V, 12V buck to 5V, 24V buck to 5V,24V buck to 12V, 36V buck to 24V etc.
Package included 2 x 5A XL4015 DC-DC Step Down Adjustable 4-38V Power Supply Module LED Lith
