> >>2db LM2596HVS LM2596HV DC-DC állítható lépcsőfok átalakító teljesítménymodul
Alacsonyabb ár! 2db LM2596HVS LM2596HV DC-DC állítható lépcsőfok átalakító teljesítménymodul Nagyobb
Előző Következő

2db LM2596HVS LM2596HV DC-DC állítható lépcsőfok átalakító teljesítménymodul

400691042174

Új termék

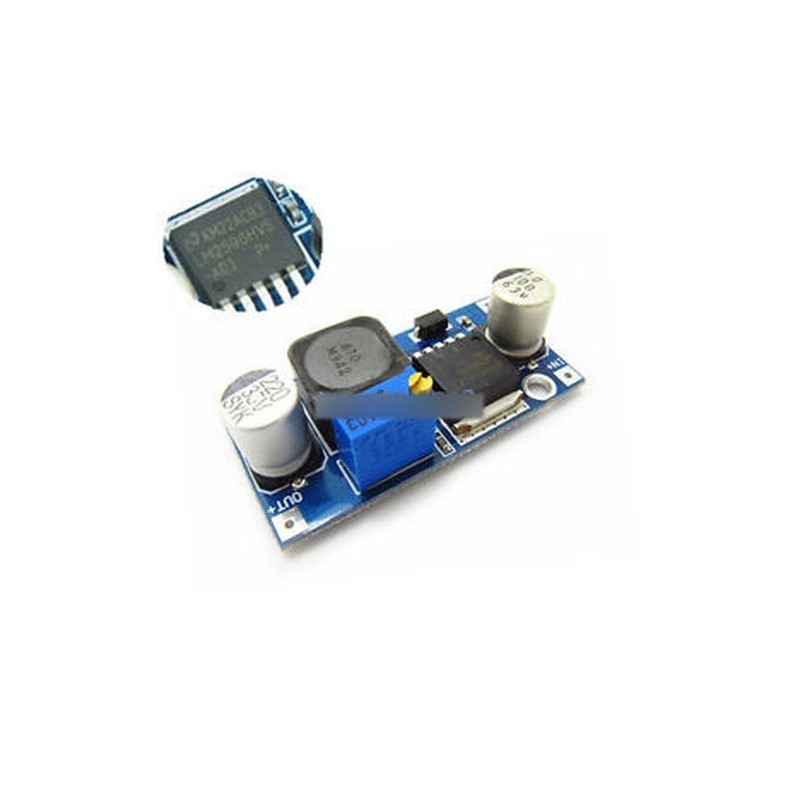

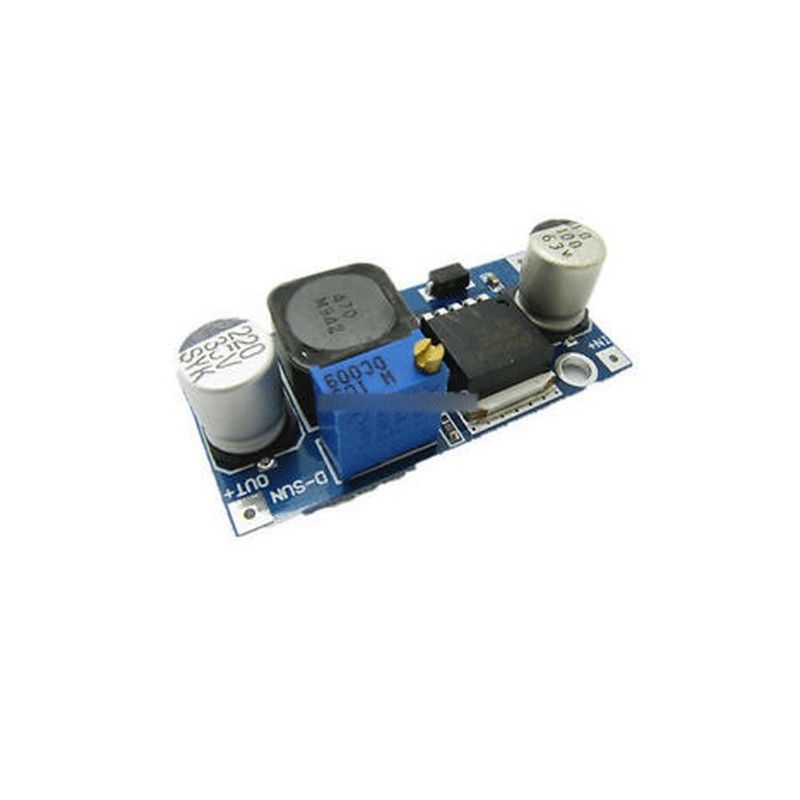

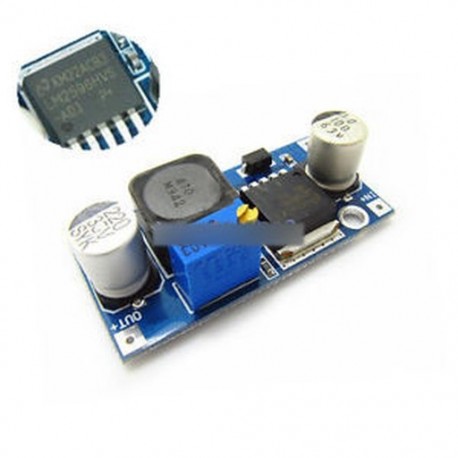

2PCS LM2596HVS LM2596HV DC-DC Adjustable Step Down Buck Converter Power Module
It's LM2596HVS Not LM2596S Chip,please know itType / name:LM2596HVS DC-DC step-down module
Input Voltage:4.5V ~ 53V
Output Voltage:3V ~ 40V
Output Current:3A (max)
Conversion efficiency:92% (the highest)
Output Ripple:<30mV
Switching frequency:150KHz
Operating Temperature:-45 ℃ ~ 85 ℃
Size:43mm * 21mm * 14mm (L * W * H)
IN-IN input Positive Input Negative!Positive output OUT OUT-output negativeInput voltage range: DC 4.5V to 53V (input voltage must be greater than the output voltage to 1.5V or more high. Could not boost)Output voltage range: DC 3V to 40V voltage is continuously adjustable, high efficiency (up to 92% ) the maximum output current of 3A.Measured 12V input, 5V output current is 1A load regulation rate of less than 1% Note: This is the step-down module, the input voltage must be higher than the output voltage.Output current is greater than 2.5A (or output power greater than 10W) to work long hours, please add heat sink.
Package Included:2PCS* DC-DC LM2596HVS LM2596HV Adjustable Step Down Buck Co

Bővebb leírás

-6 / 8 / Gyorsan Fogyó termék

320 Ft‎

-61%

820 Ft‎

Hozzáadás a kívánságlistához

Egyéb infó

2PCS LM2596HVS LM2596HV DC-DC Adjustable Step Down Buck Converter Power Module
It's LM2596HVS Not LM2596S Chip,please know itType / name:LM2596HVS DC-DC step-down module
Input Voltage:4.5V ~ 53V
Output Voltage:3V ~ 40V
Output Current:3A (max)
Conversion efficiency:92% (the highest)
Output Ripple:<30mV
Switching frequency:150KHz
Operating Temperature:-45 ℃ ~ 85 ℃
Size:43mm * 21mm * 14mm (L * W * H)
IN-IN input Positive Input Negative!Positive output OUT OUT-output negativeInput voltage range: DC 4.5V to 53V (input voltage must be greater than the output voltage to 1.5V or more high. Could not boost)Output voltage range: DC 3V to 40V voltage is continuously adjustable, high efficiency (up to 92% ) the maximum output current of 3A.Measured 12V input, 5V output current is 1A load regulation rate of less than 1% Note: This is the step-down module, the input voltage must be higher than the output voltage.Output current is greater than 2.5A (or output power greater than 10W) to work long hours, please add heat sink.
Package Included:2PCS* DC-DC LM2596HVS LM2596HV Adjustable Step Down Buck Co
400691042174 - ali110 (280)
