12V-36V kefe nélküli motorvezérlés - DC 5V-12V / 12V-36V 500W kefe nélküli motorvezérlő csarnok motorvezérlő kártya

A cím elején szereplő szín/minta/méret/típus kerül kiszállításra!
DC 5V-12V/12V-36V 500W Brushless Motor Controller Hall Motor Driver BoardDescription:
5V-12V Brushless Motor Controller100% brand new and high quality
Material: Plastic and Electrical components
Color: Green and Black
The driver board can drive hard disk brushless motors ,CD-ROM brushless motor and so on ， the micro 3-wire or 4-wire
without hall brushless motor ,
It's have reverse voltage protection , Over current protection , Phase inversion control
Driver voltage : DC5-12v
Working voltage : ≤1.2A
Speed adjust :0% -100%
Note : Brushless motor line of receiving terminal drive plate must be pressed sturdiness, poor contact will lack of phase
operation and burn out the chip.Board terminals fixed screw clearance, please use coarser line connected to the board.
How to identify four line motor public port: use the resistance of the multimeter * gears test this four terminal,One of the
terminals and the other three terminal resistance value of the minimum and equal
So it's COM terminal
Size:6*4.5cm/2.36"*1.77"
Quantity: 1Pc
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package Included:

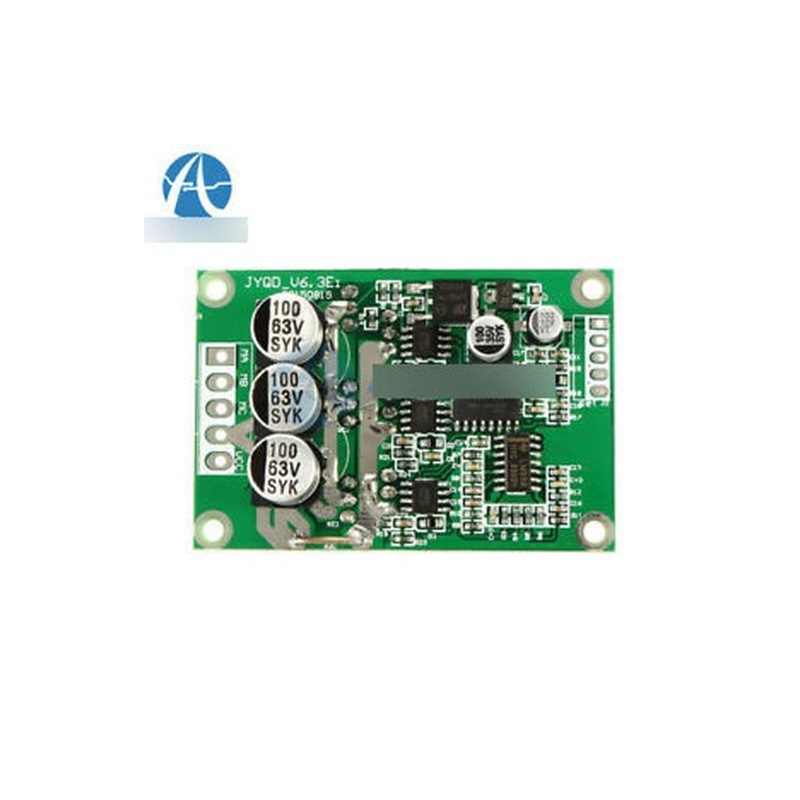

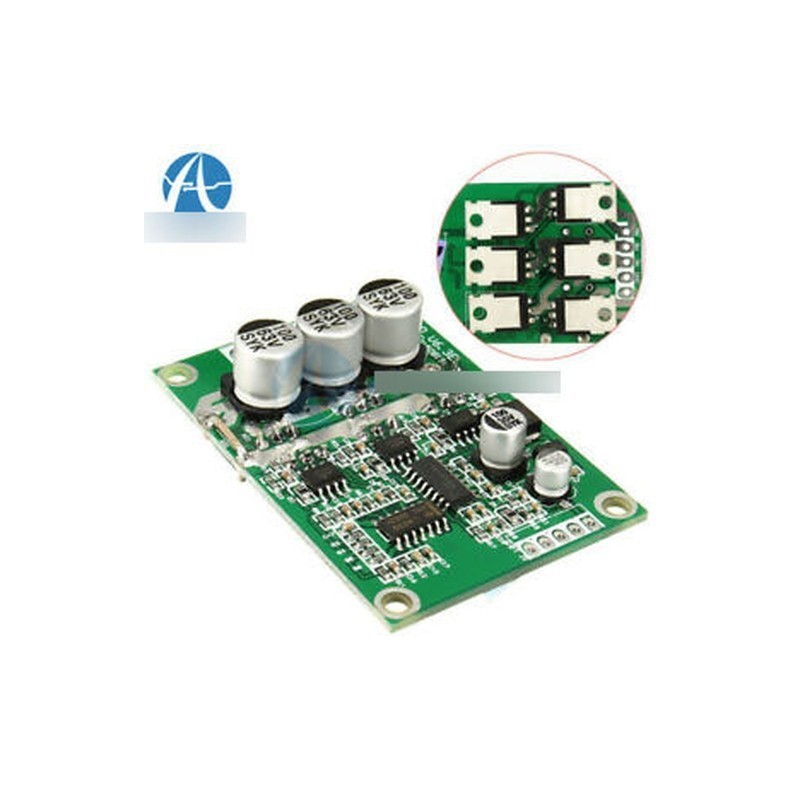

1PC*5V-12V DC Brushless Motor Driver Board Controllerpeakerphone Speaker Visor Clip12V-36V Brushless Motor ControllerDrive plate type: JYQD_V6.3E1
Voltage range: 12V-36V
Peak current: 20A
Drive power: ≤ 500W (related working voltage)
Size: 63x43x17mm
Speed control function: voltage speed regulation or single chip
microcomputer control PWM speed regulation

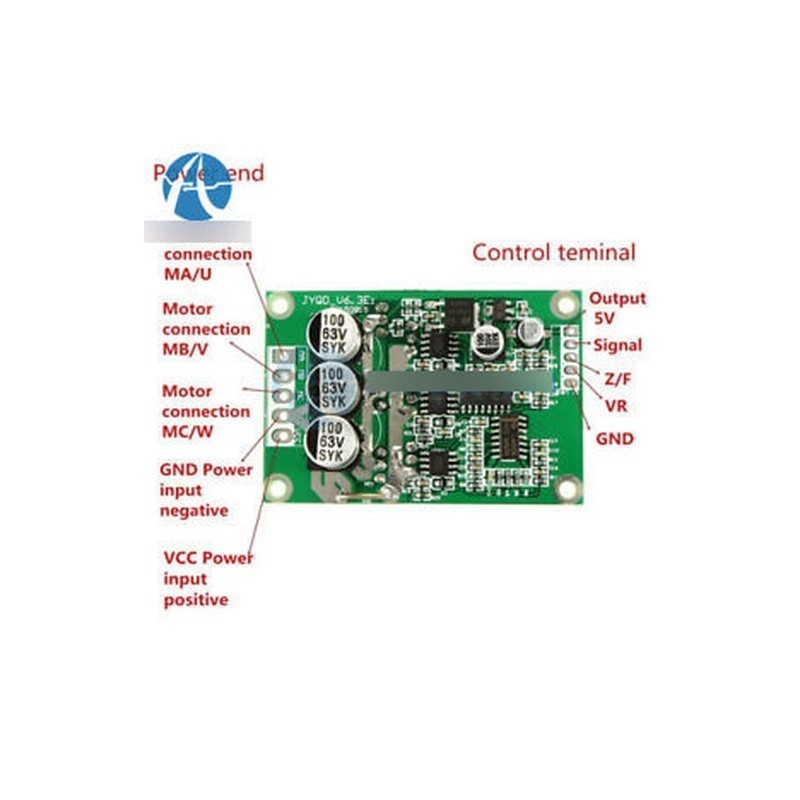

Control terminal connection:
1, GND
2, VR speed control port connection method can be controlled by voltage regulation control or PWM control speed voltage regulation can be adjusted by the adjustable resistance (20K 3 pin bit VR port side of the port side of the 5V port to connect to the GND port through the regulation of voltage control)
3, ZF positive reverse port connection method to connect 5V a direction to the direction of GND
4, Singnal speed pulse output port output of a circle of pulse = motor pole number x 3
5, 5V control terminal 5V voltage output port
Power end connection:
1, VCC power positive input port (12V-36V)
2, GND power input port
3, MC brushless DC motor without a sense / no Holzer motor three line W
4, MB brushless DC motor without a sense / no Holzer motor three line V
5, MA brushless DC motor without a sense / no Holzer motor three line U
Package Included:
100% Brand New (High Quality)
1PC*12V 24V 36V 500W Brushless Motor Controller Motor Balanced Car Driver Board
