12864 LCD vezérlő adapter - 1602 2004 12864 LCD kijelzővezérlő adapter Arduino 3D nyomtatóvezérlő

A cím elején szereplő szín/minta/méret/típus kerül kiszállításra!
1602 2004 12864 LCD Display Controller Adapter Arduino 3D Printer Controller12864 LCD Controller Adapter

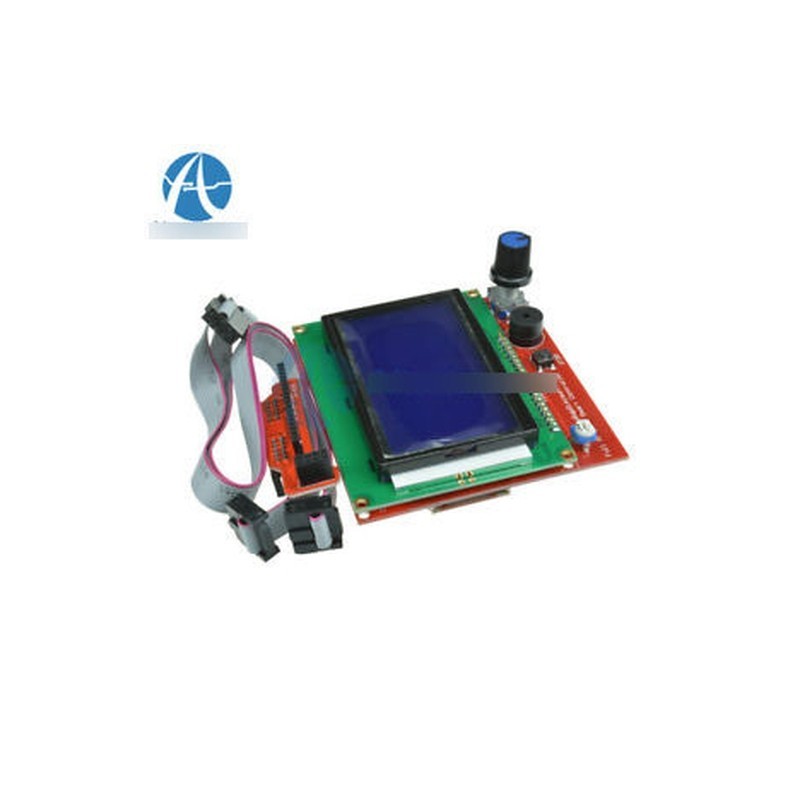

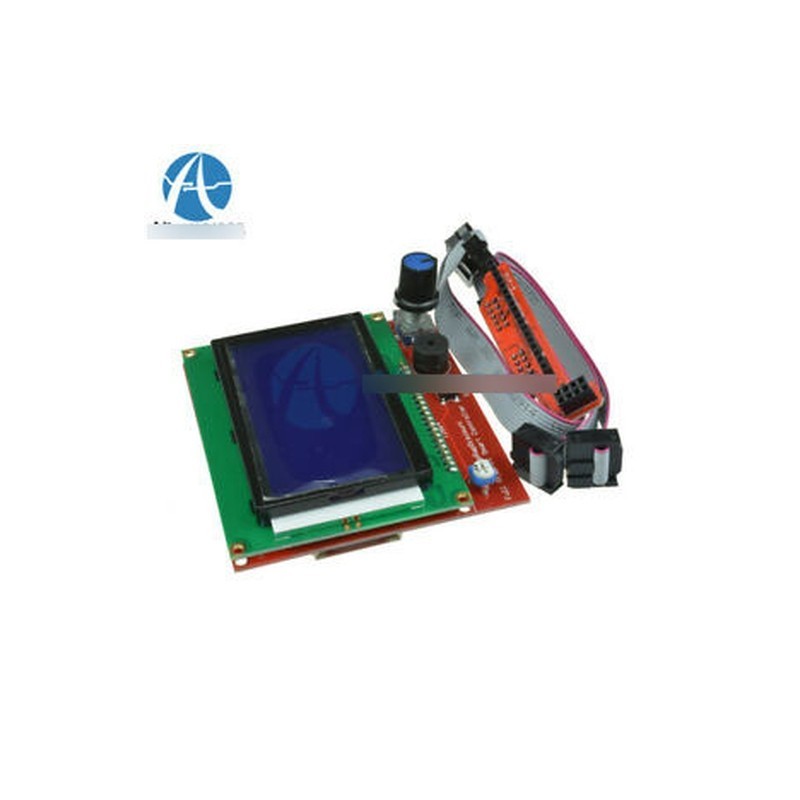

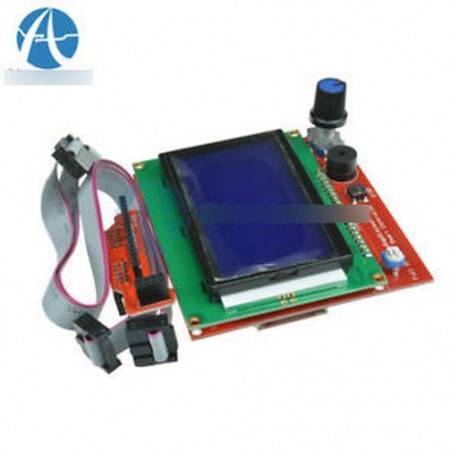

Specification: This full graphic Smart Controller contains a SD-Card reader, an rotary encoder and a 128 x 64 dot matrix LCD display.
You can easy connect it to your Ramps board using the "smart adapter" included. After connecting this panel to your Ramps you don't need your pc any more,
the Smart Controller supplies power for your SD card. Further more all actions like calibration,
axes movements can be done by just using the rotary encoder on the Smart Controller. Print your 3D designs without PC,
just with a g-code design stored on the SD card.Schematics LCD Connect Schematics
RepRapDiscount Full Graphic Smart Controller Schematics
Smart Adapter Gerber Files
RepRapDiscount Full Graphic Smart Controller Gerber Files Package Included: 1 x 12864 Display LCD 3D Print Controller Adapter For RAMPS 1.4 Reprap Mendel
2004/12864 LCD AdapterProduct description:This smart adaptor will make it possible to connect your
LCD 20*4 or LCD12864 controller display with the controller board Rambo.
Ran your printer without computer now! Package Included:1 x RepRap Rambo LCD 2004 12864 Display Adaptor For 3D Printer Controller Board 1602/2004/12864 LCD Adapter
DescriptionThis is a brand-new design.Uses MCP23017 chip, it is compatible with 1602 and 12864 liquid crystal screens, through this module is switched, use I2C communication, only need two MCU I/Os to be able to realize the liquid crystal to drive the display. The potentiometer on the module can achieve contrast adjustment. You can also unplug the jump cap to turn off the backlight or adjust the brightness through PWM. We provide wiring diagram and arduino sample code, isn't it great!
Supply voltage: 5V
the backlight and contrast is adjusted by potentiometer
Compatible for 1602 LCD 2004 LCD 12864LCD
Package Included:
1*Arduino 5V 1602/2004/12864 IIC/I2C LCD Serial Interface MCP23017 Expander Module
