12.5mm 300Rpm 6 vezetékek CIRCUITSx2A kapszula csúszógyűrű AC 240V monitor robothoz

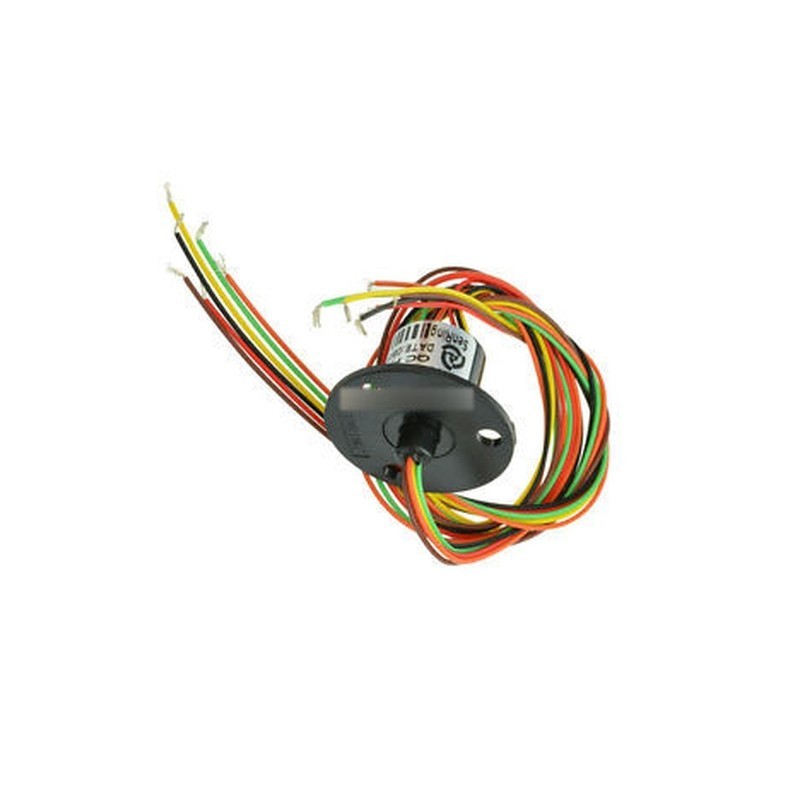

12.5mm 300Rpm 6 Wires CIRCUITSx2A Capsule Slip Ring AC 240V for Monitor Robotic
Feature:
- The Capsule slip ring is a standard, off-the-shelf series product, that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.Using a 90 degree V-groove ring design for each ring, provides smoother running, lower torque low contact wear rates than competitive slip ring. provides 6, circuit configurations.
- Used advanced technology to design, lower consumption.
- Compact design allows tremendous flexibility in dealing with system size restrictions: 12.5mm outside diameter, and 15 mm length.
- Can combine signal and power in same slip ring,completely satisfy 360 degrees of rotation
- Precision module provides long time maintenance –free operation(no cleaning or lubrication required);Specification:
- Voltage: 240 VAC/DC
- Current: 2A per circuits
- Speed: 0-300 Rpm
- Circuits: 6
- Housing Material: Engineering Plastics
- Work Humidity: 60% RH or higher
- Work Temp.: -40℃~ 80℃
- Contact material: Gold plated ring-Gold plated brush
- nsulation resistance: 1000 Mω @ 500 VDC
- Lead size: 225mm 30# AWG Teflon wire
- Dielectric strength: Between each circuit and all other circuits , ≥ 500 VAC @ 50Hz
- Electrical noise: ≤10mω
- Work life: Depending on speed and working environment, ≥50,000,000 runs ref
- Outside dia: 12.5mm
- Flange dia.: 24mm
- Length: 15mm
- CE, ROHS passedApplications:
- CCTV Monitoring System
- Electrical test equipment
- Medical equipment
- Robotics
Package included 1PCS x 300Rpm Capsule Slip Ring 6 Circuits Wires 22mm 2A AC 2
