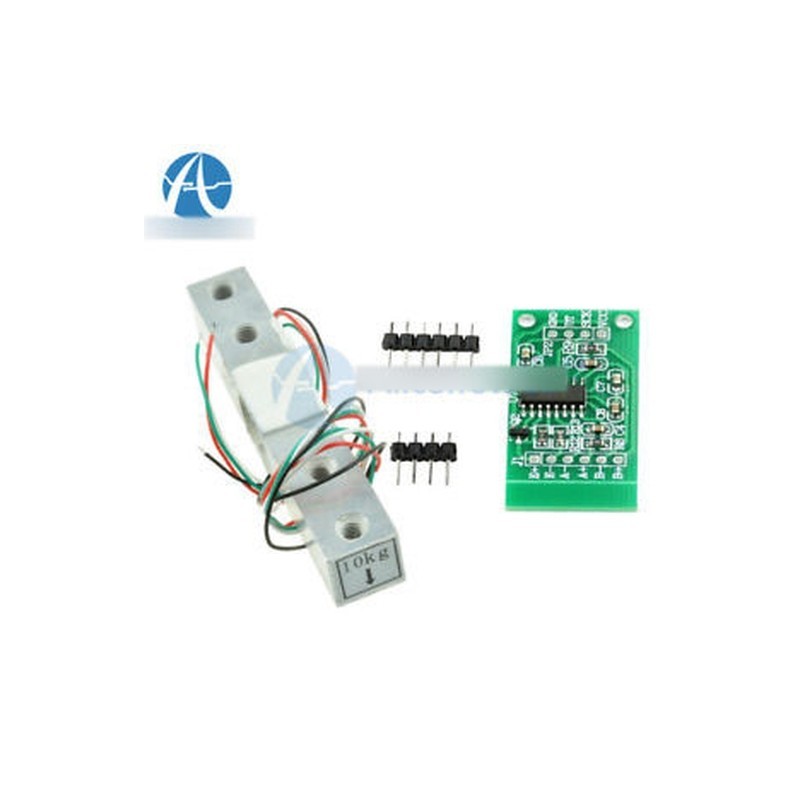

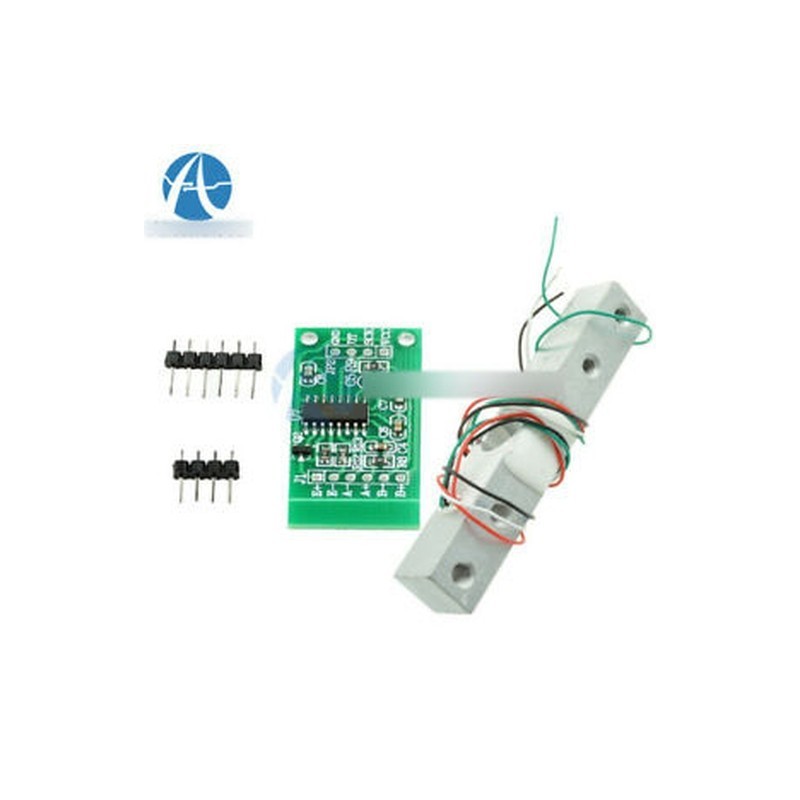

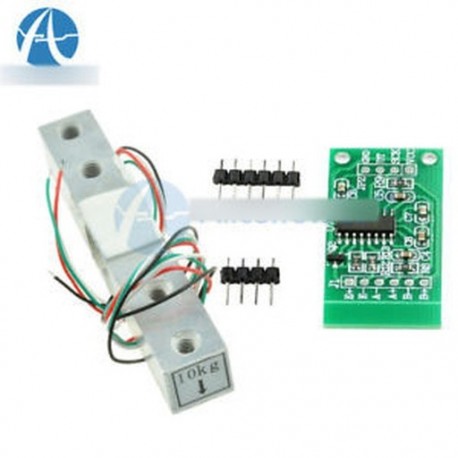

10KG méretarányú terheléscellás súlymérő érzékelő HX711 mérőérzékelő AD modul

10KG Scale Load Cell Weight Weighing Sensor HX711 Weighing Sensors AD ModuleKitchen Scale Load Weighing Sensor

Size:80x12.7x12.7mm
Connection: red wire to E,black wire to -E,Green wire to S, White wire to -S


HX711 Weighing Sensors AD Module

The module uses 24 high-precision A / D converter chip hx711, is designed for high-precision electronic scale and design, with two analog input channels, the internal programmable gain amplifier integrated multiplier 128. The input circuit can be configured to provide a bridge voltage electrical bridge (such as pressure, weight) sensor model is an ideal high-precision, low-cost sampling front-end module.
*Two selectable differential input channels
*On-chip active low noise PGA with selectable gain of 32, 64 and 128
*On-chip power supply regulator for load-cell and ADC analog power supply
*On-chip oscillator requiring no external component with optional external crystal
*On-chip power-on-reset
*Simple digital control and serial interface: pin-driven controls, no programming needed
*Selectable 10SPS or 80SPS output data rate
*Simultaneous 50 and 60Hz supply rejection
*Current consumption including on-chip analog power supply regulator: normal operation < 1.5mA, power down < 1uA
*Operation supply voltage range: 2.6 ~ 5.5V
*Operation temperature range: -40 ~ 85℃
*Size 35mmx20mmPackage Included:
1 X Scale Load 10KG
1X HX711 Weighing Sensors
