1 - ESP8266 Wifi WeMos D1 Mini ESP 12F 12E DHT22 AM2320 CP2104 CH340 NodeMCU-hoz

A cím elején szereplő szín/minta/méret/típus kerül kiszállításra!
ESP8266 Wifi WeMos D1 Mini ESP 12F 12E DHT22 AM2320 CP2104 CH340 For NodeMCUDescription:
NunberPictureDetails

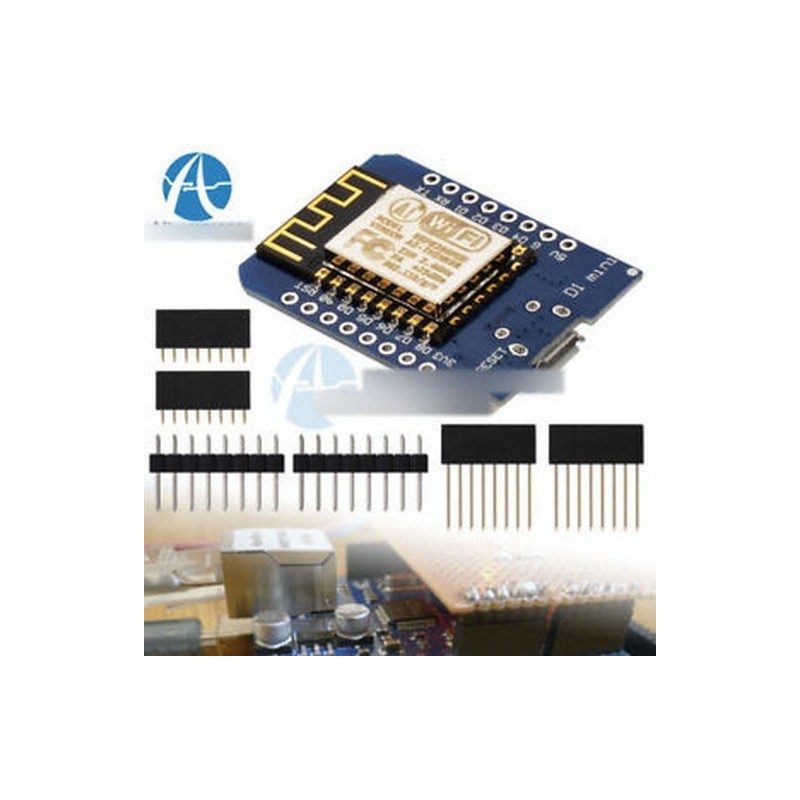

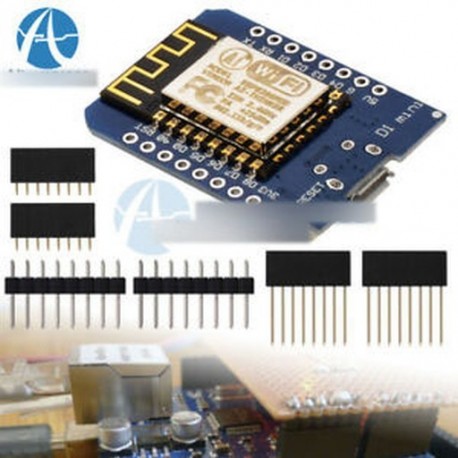

1D1 mini, it is a mini NodeMcu Lua WiFi board based on ESP-8266EX.
11 digital input/output pins, all pins have interrupt/pwm/I2C/one-wire.
ESP8266 has I/O Pin.
No need to download restting.
A great set of tools to develop ESP8266.
Supported(except D0)
1 analog input(3.3V max input)
A Micro USB connection.
2NEW Relay Shield for Arduino WeMos D1 Mini ESP8266 Development Board
3
16M bytes(128M bit) Flash
External antenna connector
Built-in ceramic antenna
New CP2104 USB-TO-UART IC
Same size as D1 mini, but more light4You can use D1 mini without usb cable, it's really wireless now.
Put D1 mini anywhere, using this battery shield and a lithium Battery.
Boost, just connect lithium Battery to this shield, power supply for the entire D1 mini system.
Charging, when the battery run out, you do not need to unplug the battery, just using usb port to charging.
1. Connect to lithium Battery (normal 3.3-4.2V)
2. Charging port (normal 5V)
3. Green LED, lights when charging is completed
4. Red LED, lights when charging
5Based on ESP-8266EX
Arduino compatible, using Arduino IDE to program
11 x I / O pins
1 x ADC pin (input range of 0-3.3V)
Support OTA wireless upload
Onboard 5V 1A Switching Power Supply (highest input voltage 24V)
After installing the hardware package,
6 WeMos D1 ProtoBoard Shield formini double side perf board for Arduino New
7Dual bases for all Wemos D1 Mini modules and shields
Duplicates I/O and power
Warning: all I/O are designed to be 3.3V compliant only.
8Screen Size: 64x48 pixels (0.66” Across)
Operating Voltage: 3.3V
Driver IC: SSD1306
Interface: IIC(I2C)
IIC Address: 0x3C or 0x3D
Warning: all I/O are designed to be 3.3V compliant only.9
Brand Name: WeMos
Model Number: Micro SD Shield
Install Style: Plug-in
10Brand Name: WeMos
Model Number: One Button Shield
Install Style: Plug-in
11 Based on the ESP-8266EX.
Arduino Compatible, you can use it on Arduino IDE.
NodeMcu Compatible
11 Digital I/O pins
1 Analog Input pin
OTA -- Wireless Upload(Program)
On board switching power supply -- Max 24V input, 5V 1A output12
Model Number: DHT22 Shield
Install Style: Plug-in
131.Long female pins x2
2.Short female pins x2
3.Normal pins x 2
4.WS2812B RGB Shield x 1
14ESP8266 NodeMCU LUA WeMos D1 R3 Development Board WiFi ESP-12F NodeMCU
15
the 14 items as the pictures ATmega328 board compatible Arduino Pro MiniATmega328 board compatible Arduino Pro Mini
Package included:1Pcs(Depends on the number you choose)Pls note,The number 15 item is an package included all 14 items an ATmega328 board compatible Arduino Pro Mini.Payment
