1 csatornás infravörös kapcsoló relé vezetési modul 12V távvezérlő

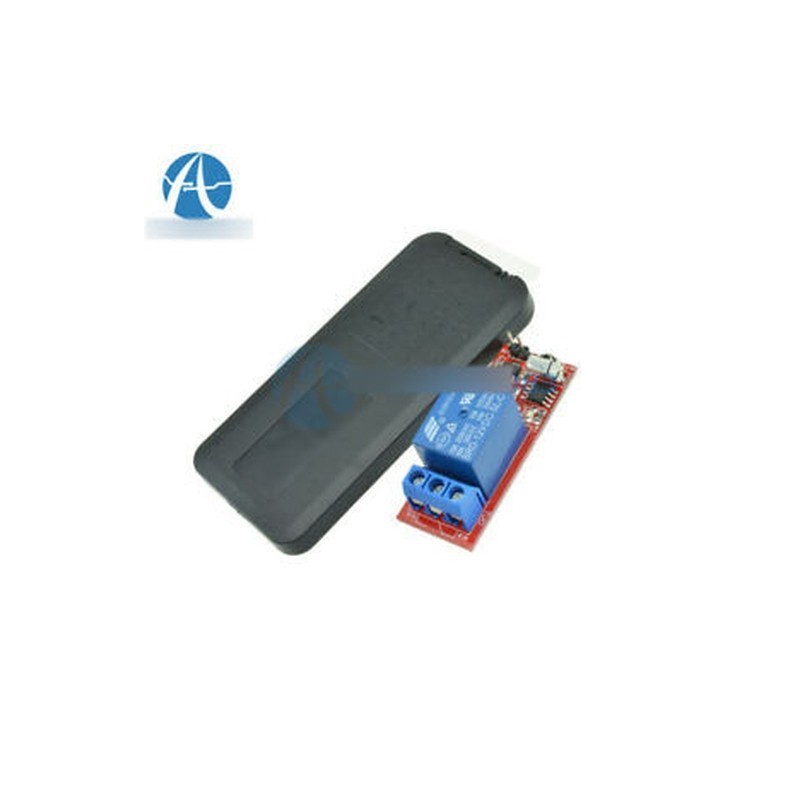

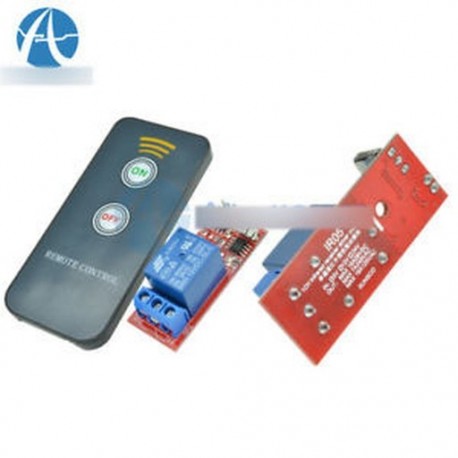

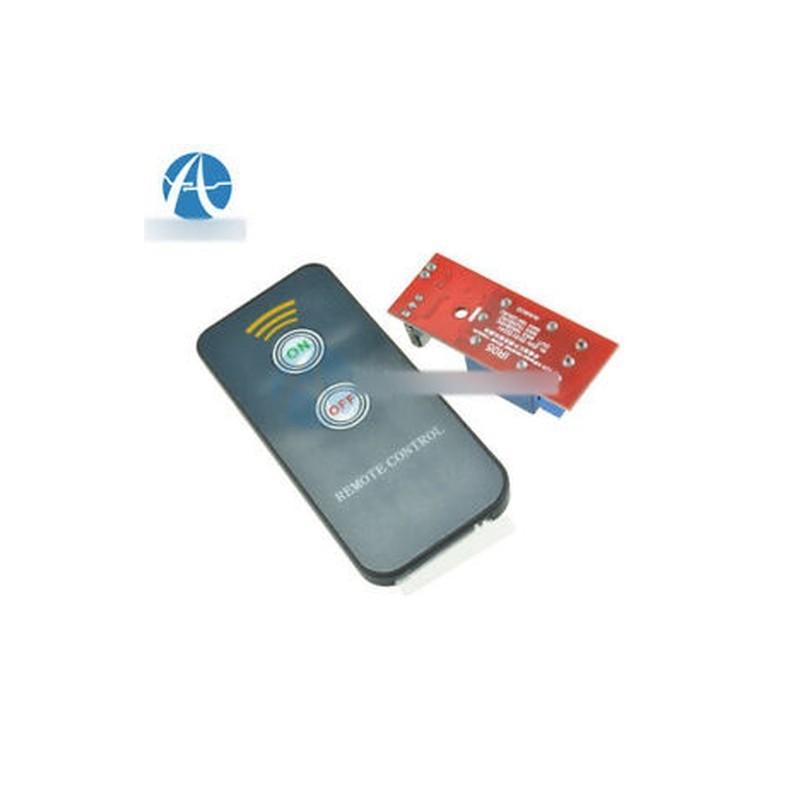

1 Channel Infrared Switch Relay Driving Module Board 12V Remote ControllerFeatures:Operating Voltage: DC 12V
Remote Distance: 8m
LED indicator
With 3mm fixed screw holes, it's easy to install.
Module Interface: VIN power supply anode 9-13V, GND- power supply cathode
The middle of three ports is public, it can be normally open and normally closed output with the others. The circuit is insulated before the relay's output and input.
Remote Controller make use of UPD6122 chip and NED coding format,
frequency is 38K.
Remote Controller User Code: OxOOFF
Key Value: "ON"---40, "OFF"---19
Battery: CR2025(Batteries are not included.)
Specification:
Weight: 33g
Relay Size: 5(L)x2(W)x1.8(H)cm
Remote Controller Size: 4(L)x0.7(W)x8.5(H)cm Package Included:1PC x 1 Channel Infrared Switch Relay Driving Module Board 12V Remote Controller
