NRF52832 BLE 4.2 Bluetooth modul alacsony fogyasztású Bluetooth külső antenna IPEX támogatása több protokoll

NRF52832 BLE 4.2 Bluetooth modul alacsony fogyasztású Bluetooth külső antenna IPEX támogatása több protokoll
NRF52832 Bluetooth Module BLE 4.2 Low Power Bluetooth External Antenna IPEX Support Multi-Protocol


Module Introduction:
XL52832-D01 Sampling NORDIC latest generation Bluetooth 4.2 chip NRF52832 design and manufacture, the module comes with onboard antenna and supports external IPEX antenna interface,
Therefore, the IO chip leads. A new generation of XL52832 joined a lot of new features. Such as the Cortex-M4F core, it has more powerful computing power and floating-point arithmetic.
nrf52832 can support multiple protocols, Bluetooth Smart (Low Energy), ANT / ANT and proprietary 2.4GHz multiple protocols, so you can connect nRF51, nRF24AP and nRF24L like products.

Product Information:
Frequency range: 2360-2483MHZ
Output power: 4dBm
Receiver sensitivity: -96 dBm Bluetooth
Modulation method: GFSK
Kernel: Cortex-M4F

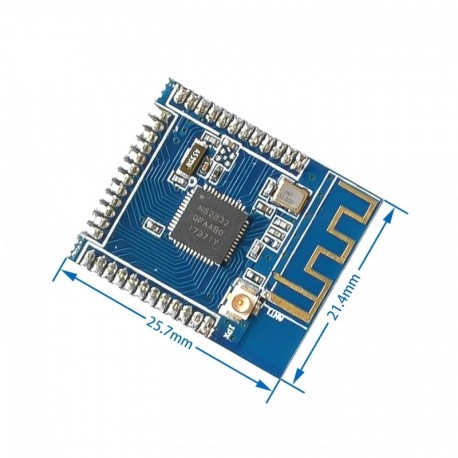

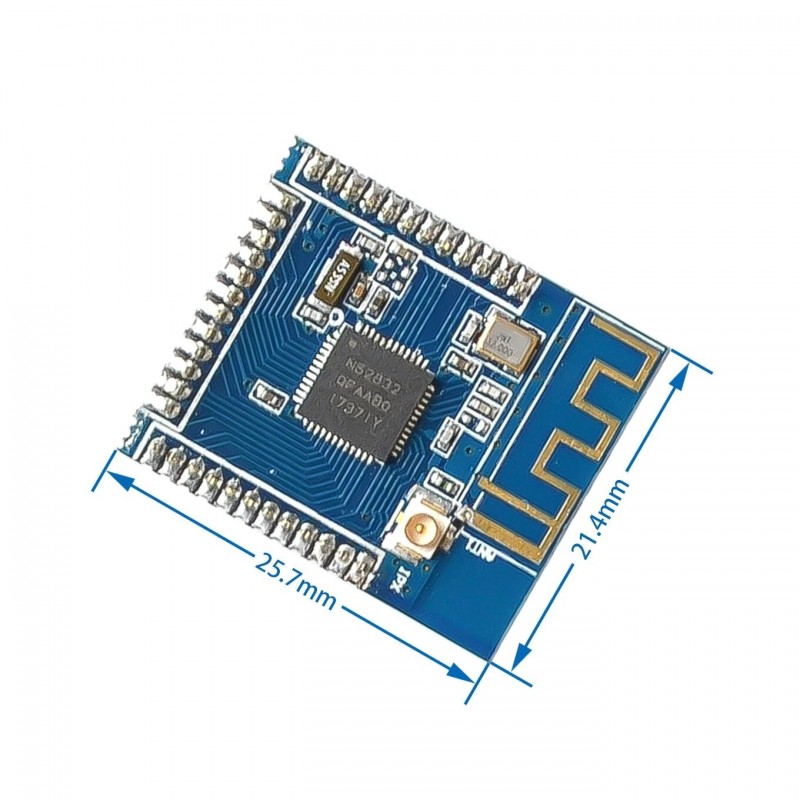

Module Size: 21 * 25mm Interface spacing 1.27mm
Emission current: 5.3mA@OdBm
Receiving current: 5.3mA@1MBPS
Deep sleep: 0.4uA
RAM / FLASH: 64k / 512k
