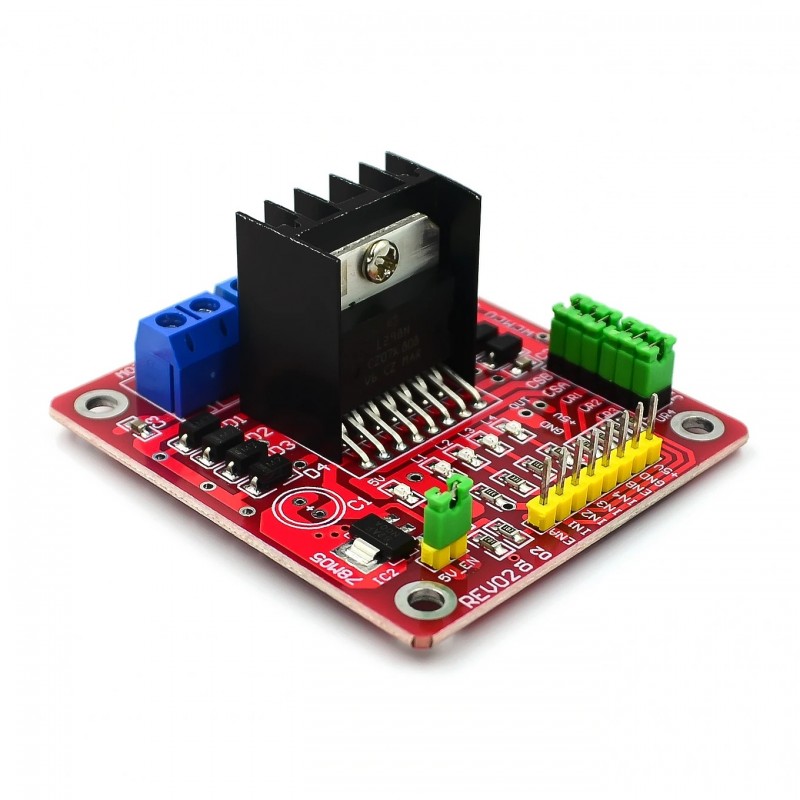

L298N Dual Bridge DC léptetővezérlő vezérlő motor meghajtó modul kártya

L298N Dual Bridge DC léptetővezérlő vezérlő motor meghajtó modul kártya
L298N Dual Bridge DC stepper Controller Control Motor Driver module Board for
1.L298N module is a
2. Shorting cap (blue, yellow, or black) 7, do not specify the color
Pin with black and yellow
Unless otherwise specified, the board terminals, pin color sent at random, can not be specified.

Robot motor driver board peripheral L298n

Product description:
The L298N driver module, using ST's L298N chip can directly drive two 3-30V DC motor, and provides a 5V output interface can 5V single-chip circuitry to supply, support 3.3VMCU control, you can easily control the DC motor speed and direction can be controlled two-phase stepper motor, smart car is essential.

Product parameters:

A driver chip: L298N dual H-bridge driver chip

2 drive section terminal supply area VMS: 5 V ~ 35 V

3 drive section peak current Io: 2A / Bridge

4 logical part of the terminal supply area Vss :4.5-5 .5 V

5 logical part of the operating current range: 0 ~ 36mA

6 Control signal input voltage range: 4.5-5.5V HIGH LOW 0V
7 Maximum power consumption: 20W
