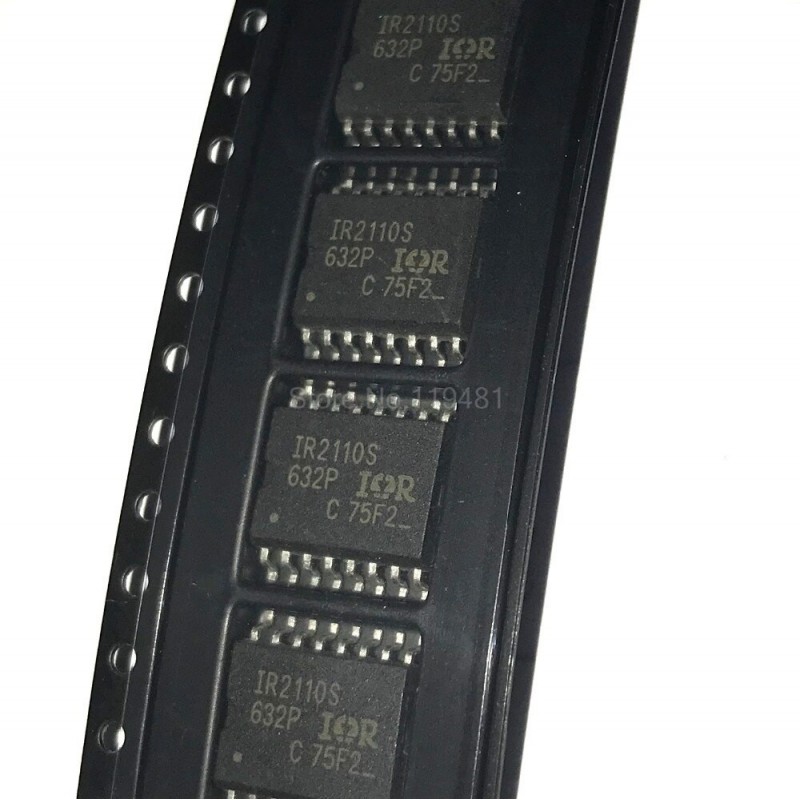

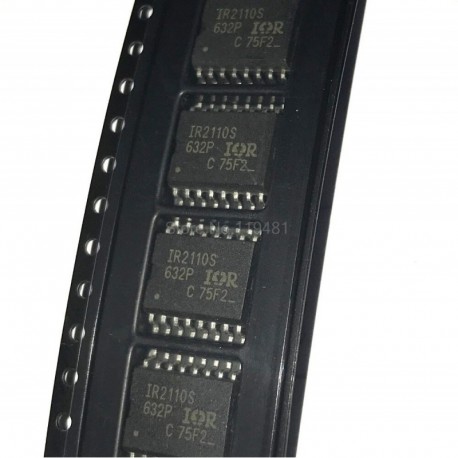

> >>IR2110S SOP16 IR2110 IR2110STRPBF 2110 meghajtó 500V 2.5A 2-OUT Hi / Lo oldalsó nem inv-16 16 tűs SOIC WT / R
Alacsonyabb ár! IR2110S SOP16 IR2110 IR2110STRPBF 2110 meghajtó 500V 2.5A 2-OUT Hi / Lo oldalsó nem inv-16 16 tűs SOIC WT / R Nagyobb

IR2110S SOP16 IR2110 IR2110STRPBF 2110 meghajtó 500V 2.5A 2-OUT Hi / Lo oldalsó nem inv-16 16 tűs SOIC WT / R

4001352932824

Új termék

IR2110S SOP16 IR2110 IR2110STRPBF 2110  Driver 500V 2.5A 2-OUT Hi/Lo Side Non-Inv 16-Pin SOIC W T/R
​
Specifications
EU RoHS
Compliant
Driver Type
High and Low Side
Driver Configuration
Non-Inverting
Number of Drivers
2
Number of Outputs
2
Maximum Rise Time (ns)
35
Maximum Fall Time (ns)
25
Maximum Propagation Delay Time (ns)
150
Absolute Propagation Delay Time (ns)
150
Input Logic Compatibility
CMOS|LSTTL|3.3V(Min)
Minimum Operating Supply Voltage (V)
10
Maximum Operating Supply Voltage (V)
20
Typical Input Low Threshold Voltage (V)
8.2
Typical Input High Threshold Voltage (V)
8.5
High and Low Sides Dependency
Independent
Reference Voltage (V)
500(Max)
Maximum Supply Current (mA)
0.34
Peak Output Current (A)
2.5(Typ)
Maximum Power Dissipation (mW)
1250
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
125
Maximum Turn-On Delay Time (ns)
10
Maximum Turn-Off Delay Time (ns)
10
Special Features
Under Voltage Lockout
Mounting
Surface Mount
Package Height (mm)
2.35(Max)
Package Length (mm)
10.5(Max)
Package Width (mm)
7.6(Max)
PCB changed
16
Standard Package Name
SOP
Supplier Package
SOIC W
Pin Count
16
Lead Shape
Gull-wing

Bővebb leírás

611 Ft‎

-67%

1 850 Ft‎

Hozzáadás a kívánságlistához

Egyéb infó

IR2110S SOP16 IR2110 IR2110STRPBF 2110 meghajtó 500V 2.5A 2-OUT Hi / Lo oldalsó nem inv-16 16 tűs SOIC WT / R
IR2110S SOP16 IR2110 IR2110STRPBF 2110 Driver 500V 2.5A 2-OUT Hi/Lo Side Non-Inv 16-Pin SOIC W T/R
IR2110S SOP16 IR2110 IR2110STRPBF 2110  Driver 500V 2.5A 2-OUT Hi/Lo Side Non-Inv 16-Pin SOIC W T/R
​
Specifications
EU RoHS
Compliant
Driver Type
High and Low Side
Driver Configuration
Non-Inverting
Number of Drivers
2
Number of Outputs
2
Maximum Rise Time (ns)
35
Maximum Fall Time (ns)
25
Maximum Propagation Delay Time (ns)
150
Absolute Propagation Delay Time (ns)
150
Input Logic Compatibility
CMOS|LSTTL|3.3V(Min)
Minimum Operating Supply Voltage (V)
10
Maximum Operating Supply Voltage (V)
20
Typical Input Low Threshold Voltage (V)
8.2
Typical Input High Threshold Voltage (V)
8.5
High and Low Sides Dependency
Independent
Reference Voltage (V)
500(Max)
Maximum Supply Current (mA)
0.34
Peak Output Current (A)
2.5(Typ)
Maximum Power Dissipation (mW)
1250
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
125
Maximum Turn-On Delay Time (ns)
10
Maximum Turn-Off Delay Time (ns)
10
Special Features
Under Voltage Lockout
Mounting
Surface Mount
Package Height (mm)
2.35(Max)
Package Length (mm)
10.5(Max)
Package Width (mm)
7.6(Max)
PCB changed
16
Standard Package Name
SOP
Supplier Package
SOIC W
Pin Count
16
Lead Shape
Gull-wing
4001352932824 - sunshine
