DC5V ~ 27V 5A DC motorvezérlő panel modul megfordítható sebességszabályozó &quot H&quot híd PWM jelvezérlő

DC5V ~ 27V 5A DC motorvezérlő panel modul megfordítható sebességszabályozó "H" híd PWM jelvezérlő

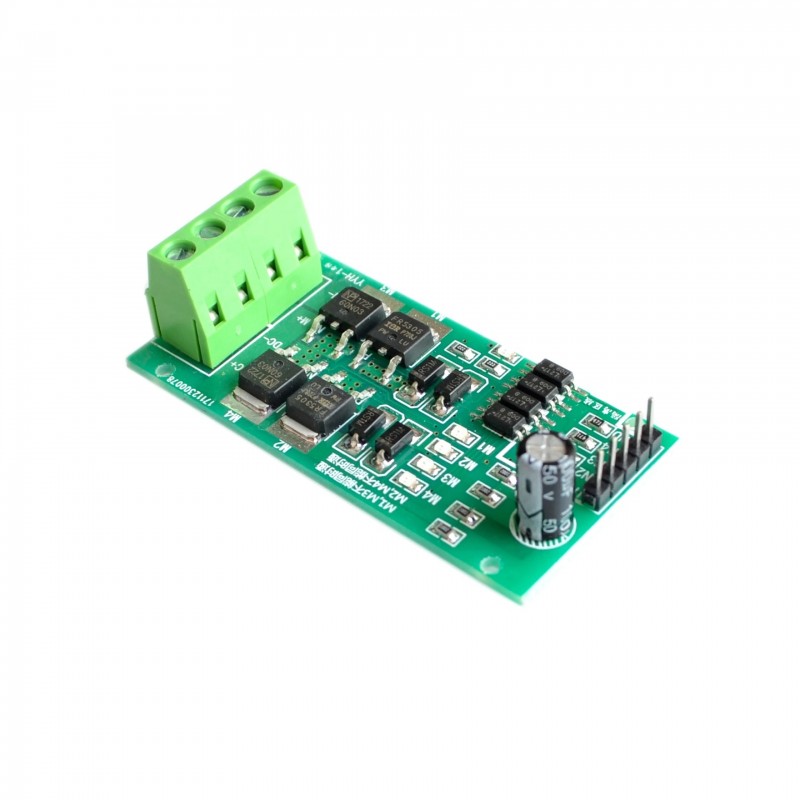

DC5V~27V 5A DC Motor Driver Board Module Reversible Speed Control "H" Bridge PWM Signal Controller

Features:
Input voltage is DC5V~27V, rated output current is 5A.
With 4pcs MOS transistors working indicators.
Signal type: use sinking current driving for signal control.
Support most of singlechip to drive directly.
Support PWM signal frequency within 20KHz.
Optocoupler isolation.
Specifications:
Input Voltage: DC5V~27V
Output Current: 5A, can keep persistent current within 5A
Standby Current: 3mA
Item Size: 60 * 30 * 15mm
Item Weight: 14g
Note:
1. Make sure the input voltage is DC5V~27V; it will burn the driver board if over voltage.
2. Please connect the driver power correctly, recommend you to use a 10A fuse for series connection.
3. Power on after connect the driver board and motor, otherwise it may burn the board for short circuit.
4. Keep the driver board dry, don't short out the electronic components.
