4S 12A 16v Li-ion 18650 BMS PCM akkumulátor védőtábla bms pcm li-ion lipo akkumulátor cellához

4S 12A 16v Li-ion 18650 BMS PCM akkumulátor védőtábla bms pcm li-ion lipo akkumulátor cellához

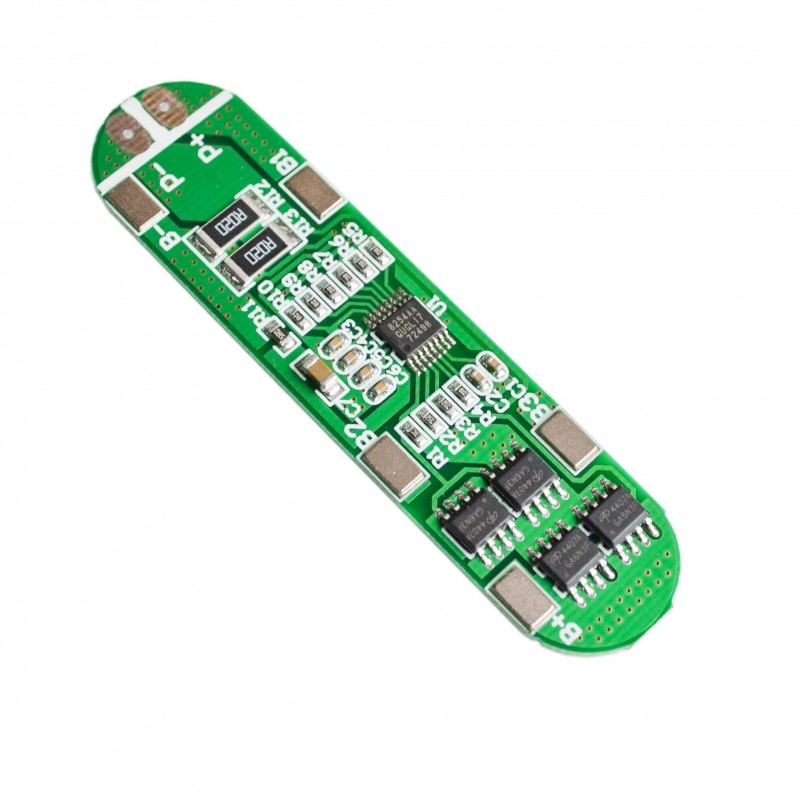

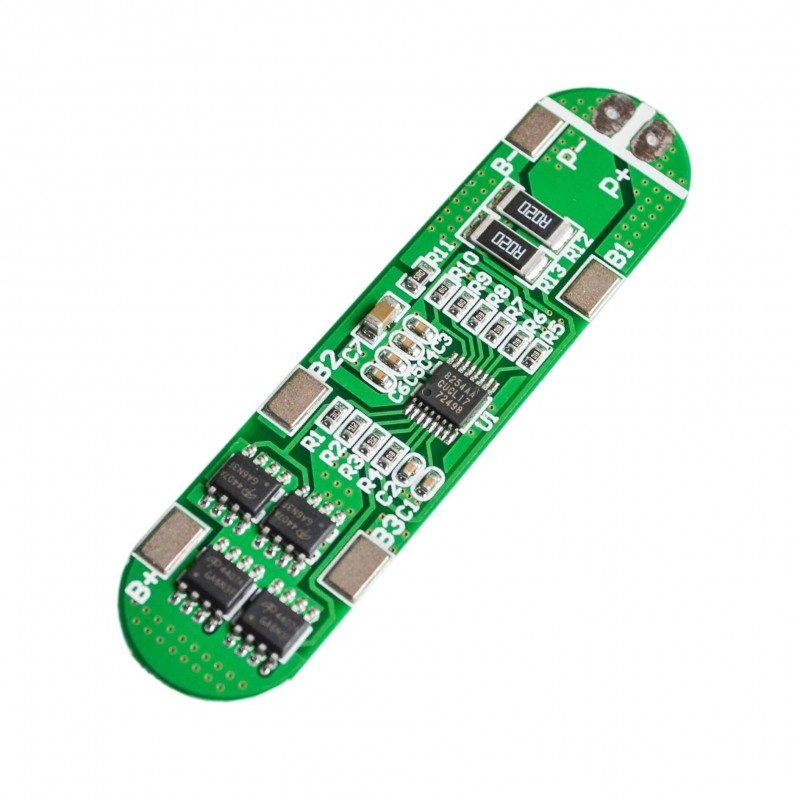

4S 12A 16v Li-ion 18650 BMS PCM battery protection board bms pcm for li-ion lipo battery cell pack
4 series 18650 battery 16.8V 16V 14.8V

14.8V (Li-ion 18650 or li-ion battery rated voltage)
16.8V (Li-ion battery full charge voltage)
14.4V ( Lipo battery pack rated voltage)

The lithium battery protection board is not included the welding tabs.
Features:
1) high-accuracy voltage detection circuit;
2) terminal of the charger using high voltage device;
3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit);
4) MOS transistor can control the battery charge and discharge;
5) low standby current consumption.

Parameter:

Over Charge Voltage:4.25-4.35v±0.05v
Over Discharge Voltage: 2.3-3.0v±0.05v
Max working current:4-5A
Max Peak current:6-7A
Working Temperature:-40--- 50
Storage Temperature:-40-- 80
Small current:6uA
Life cycle:50000hours
Resistance:45m
Short cut Protection:Protectable ,change for repair                                                                                                                        Size:67*16*1.0mm
