15A 6V-90V DC motorvezérlő 6V 12V 24V 36V 48V 72V 90V nagyteljesítményű PWM tápellátás szabályzó kapcsoló

15A 6V-90V DC Motor Speed Controller 6V 12V 24V 36V 48V 72V 90V Large Power PWM Power Regulator Governor Switch Soft Start

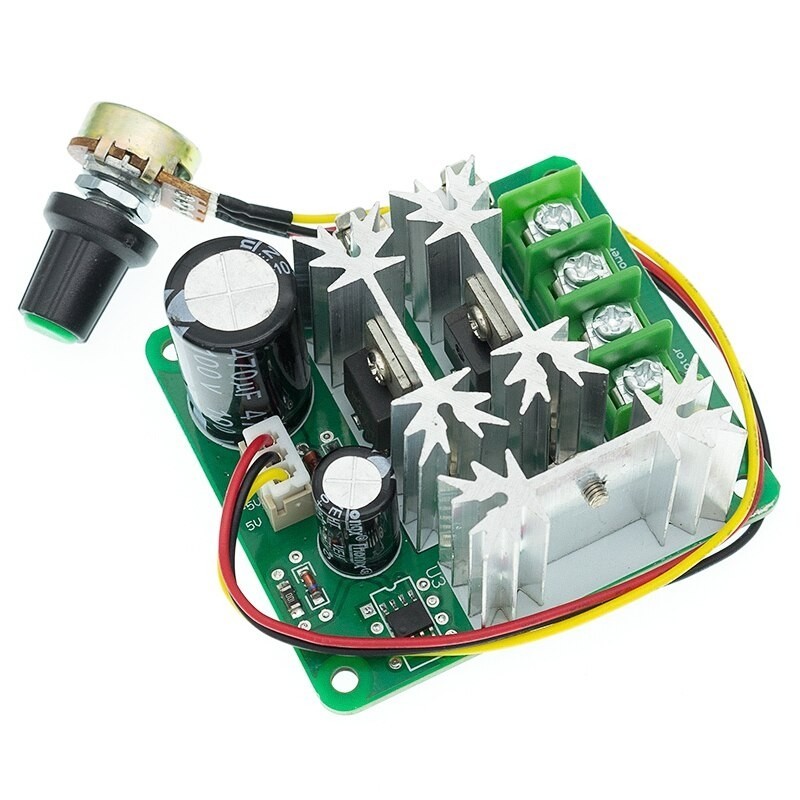

Type: DC 15A 6V-90V motor speed control drive module with regulator governor switch

Function: With power supply reverse polarity protection, over-voltage protection, 15A quick fuse ceramic fuse over-load protection, more safer and reliable.

60V-90V ultra wide working voltage, 0% -100% PWM duty cycle, 0.01-1000W control power, high efficiency, high torque, speed promise.

Rated Current: 8A, Max Current: 15A, Quiescent Current: 0.005A (Standby)

Applications: Suitable for DC motor speed control, external 0-5V signal, PLC speed control etc

Features:

Module Size: 64x59x28mm
Work Voltage: DC 6V-90V
Rated Current: 8A
Max Current: 15A
Quiescent Current: 0.005A (Standby)
Output Voltage: 0% -100% of input voltage
Power Range: 0.01-1000W
PWM Frequency: 16KHz
Knob Potentiometer: ResistanceB10K, Length 20cm, Trepanning 8mm
Fuse Wire: 5x20mm standard size 15A quick fuse ceramic fuse
Voltage Control: 0-5v (Voltage-mode control ,can use PLC to control the motor speed directly)
DC motor speed controller, speed promise, can control 6V 12V 24V 36V 48V 72V 90V large power, with power supply reverse polarity protection, over-voltage protection funcion. The external 0-5v voltage signal of knob interface, can used for PLC to control motor speed directly. If need positive/negative control, can get an external positive/negative switch
