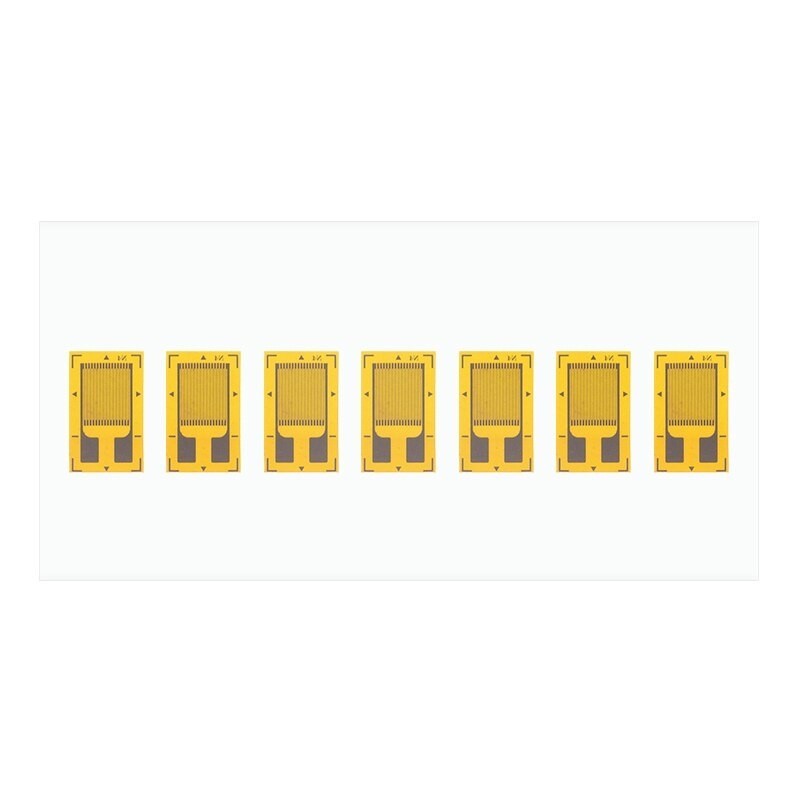

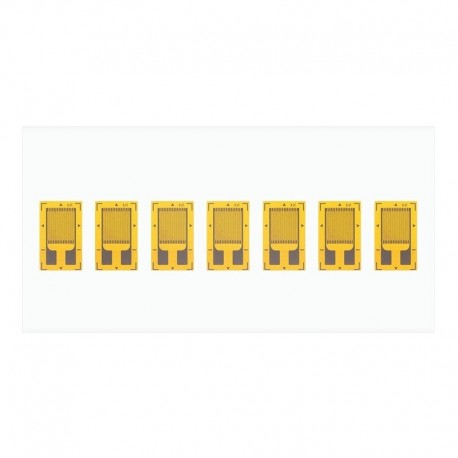

10db / tétel BF350-3AA BF350 Precíziós ellenálló feszültségmérő / feszültségmérő / a nyomásérzékelőhöz
1005002094947922
Új termék
The use of anti-static packaging products, to avoid the potential harm of static electricity
All products are tested for stability, consistency and reliability. Ensure product excellence.
Welcome Guide, our worry-free 6-month refund and friendly customer service.
This product is widely used in product development, student experiments, maintenance, production, etc.
If you have any questions, please contact us
Product Description
Type: BF350-3AA
Resistance: 349.8 ±0.1Ω
Sensitivity coefficient(gauge factor): 2.0 - 2.20
Accuracy class: 0.02
Strain limit: 2.0% (2000 microstrain)
Monolithic size: 7.1mm * 4.5mm
Materials
Conductive material: Constantan, copper-nickel alloy 55% copper / 45% nickel (constant resistance over temperature)
Substrate backing: modified phenolic resin foil
Adhesives
Surface must be polished, remove any oxides, residues before applying adhesive.
Long term adhesives: epoxy glue hot curing adhesive (H-610 or equivalent)
Short term adhesives: Cyanoacrylic glues
1
/ Gyorsan Fogyó termék
Egyéb infó
10pcs/lot BF350-3AA BF350 Precision resistive strain gauge / strain gauge / for the pressure sensor / load cell For Arduino
Product Features
The use of anti-static packaging products, to avoid the potential harm of static electricity
All products are tested for stability, consistency and reliability. Ensure product excellence.
Welcome Guide, our worry-free 6-month refund and friendly customer service.
This product is widely used in product development, student experiments, maintenance, production, etc.
If you have any questions, please contact us
Product Description
Type: BF350-3AA
Resistance: 349.8 ±0.1Ω
Sensitivity coefficient(gauge factor): 2.0 - 2.20
Accuracy class: 0.02
Strain limit: 2.0% (2000 microstrain)
Monolithic size: 7.1mm * 4.5mm
Materials
Conductive material: Constantan, copper-nickel alloy 55% copper / 45% nickel (constant resistance over temperature)
Substrate backing: modified phenolic resin foil
Adhesives
Surface must be polished, remove any oxides, residues before applying adhesive.
Long term adhesives: epoxy glue hot curing adhesive (H-610 or equivalent)
Short term adhesives: Cyanoacrylic glues
