Alacsonyabb ár! Új ELM 327 V1.5 interfész működik az Android nyomatékkal CAN-BUS Elm327 Bluetooth OBD2 / OBD II autódiagnosztikai szkenner

Nagyobb

Előző

Következő

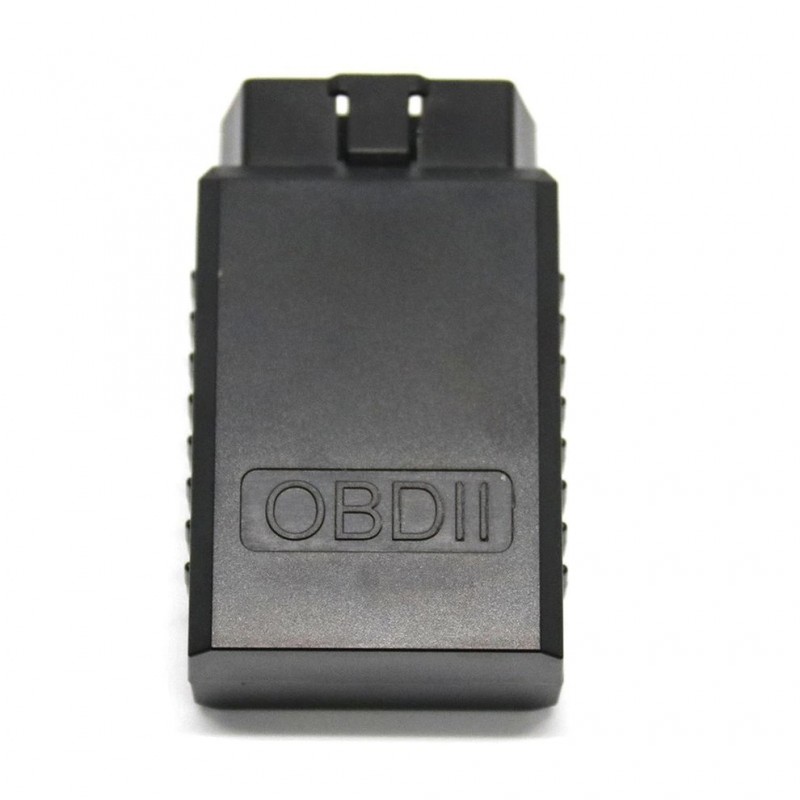

Új ELM 327 V1.5 interfész működik az Android nyomatékkal CAN-BUS Elm327 Bluetooth OBD2 / OBD II autódiagnosztikai szkenner

Cikkszám: 1005001377528470

Feltétel: Új termék

Features:
Read diagnostic trouble codes, both generic and manufacturer-specific.
Display their meaning (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light)
Display current sensor data, including:
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
Description:
Support OBDII Protocols:
SAE J1850 PWM (41.6 kbaud)
SAE J1850 VPW (10.4 kbaud)
for ISO 9141-2 (5 baud init, 10.4 kbaud)
for ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
for ISO 14230-4 KWP (fast init, 10.4 kbaud)
for ISO 15765-4 CAN (11 bit ID, 500 kbaud)
for ISO 15765-4 CAN (29 bit ID, 500 kbaud)
for ISO 15765-4 CAN (11 bit ID, 250 kbaud)
for ISO 15765-4 CAN (29 bit ID, 250 kbaud)
Specifications:
Model: V03H2-1
Bluetooth version: 2.0
Master chip: ST
Software version: V1.5
Support system: For Android/ For Windows
Working voltage: 9V~16V
Working current: 35mA
Standby current: 25mA
Working temperature: -40~85 degree Celsius
Working humidity: less than 60%
Size: 45*25*75mm
Color: Black
Package includes:
1 x Vehicle Diagnosis Tool
Notes:
Due to the difference between different monitors,
the picture may not reflect the actual color of the item.
We guarantee the style is the same as shown in the pictures.

Bővebb leírás

-6 /

7 / Gyorsan Fogyó termék

Nyomtatás

Vásárlói visszajelzések

Egyéb infó

New ELM 327 V1.5 Interface Works On Android Torque CAN-BUS Elm327 Bluetooth OBD2/OBD II Car Diagnostic Scanner tool
Features:
Read diagnostic trouble codes, both generic and manufacturer-specific.
Display their meaning (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light)
Display current sensor data, including:
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
Description:
Support OBDII Protocols:
SAE J1850 PWM (41.6 kbaud)
SAE J1850 VPW (10.4 kbaud)
for ISO 9141-2 (5 baud init, 10.4 kbaud)
for ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
for ISO 14230-4 KWP (fast init, 10.4 kbaud)
for ISO 15765-4 CAN (11 bit ID, 500 kbaud)
for ISO 15765-4 CAN (29 bit ID, 500 kbaud)
for ISO 15765-4 CAN (11 bit ID, 250 kbaud)
for ISO 15765-4 CAN (29 bit ID, 250 kbaud)
Specifications:
Model: V03H2-1
Bluetooth version: 2.0
Master chip: ST
Software version: V1.5
Support system: For Android/ For Windows
Working voltage: 9V~16V
Working current: 35mA
Standby current: 25mA
Working temperature: -40~85 degree Celsius
Working humidity: less than 60%
Size: 45*25*75mm
Color: Black
Package includes:
1 x Vehicle Diagnosis Tool
Notes:
Due to the difference between different monitors,
the picture may not reflect the actual color of the item.
We guarantee the style is the same as shown in the pictures.
