0-10 V-os analóg kimenet univerzális termoelem PT100 bemenet digitális PID hőmérséklet-szabályozó termosztát

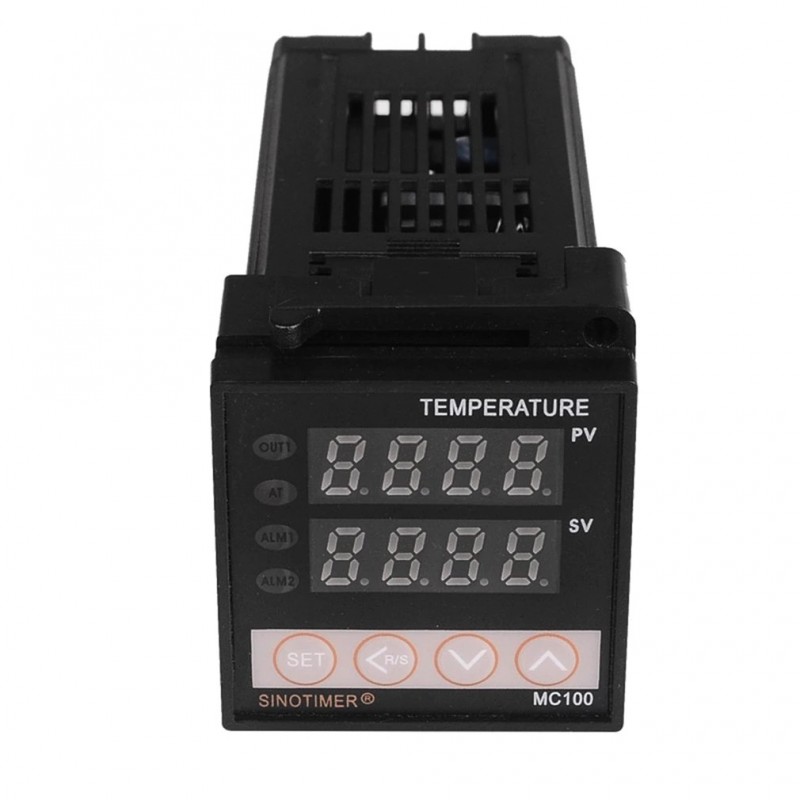

0-10V Analog Output Universal Thermocouple PT100 Input Digital PID Temperature Controller Thermostat For Heat Cool With Alarm
Features:
1. Digital display: This temperature controller supports digital display, which can realize precise temperature control.
2.
Alarm: The temperature controller can send out an alarm when the
temperature is too high, which is safe and guaranteed. The user can
change the alarm modes.
3. Appearance: The appearance of this
temperature controller is black, simple and elegant, and will not damage
the interior decoration.
4. Power supply: It can be powered by 85-265V AC, consumes 5VA, DIN 1/16.
5. High precision: it has precision machining, moderate weight, corrosion resistance and high mechanical strength.
Description:
This is a dual display universal digital programmable temperature controller that supports many type of thermocouple sensor.
Specifications:
Brand: SINOTIMER
Model: MC100
Input Type: Thermocouple: K, E, S, R, J, T, B
RTD: PT100, CU50 (The user can set the input signal type according to the requirement.)
Input Range: 0 ~ 1300'C K (this is the default setting. User can set the temperature range which you wanted.)
Accuracy: /-0.5% or /-1 unit of full input range
Control Modes: PID, ON/OFF
Control Output: 0-10V Analog
Alarm: Alarm 1 (Upper-limit bias alarm, user can change to be other alarm modes.)
Power Consumption: <2 Watt
Power Supply: 85~265V AC, 50/60Hz
Dimensions: MC100 48*48*110mm
Mounting Hole Size: MC100 45*45mm
Package Included:
1* PID Digital Temperature Controller (not include thermocouple)
1* User Manual
Notes:
1. Please allow 0-1 inch error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from real object.
