DIN sínes digitális LCD tápellátás programozható időzítő AC 220V 16A időrelé kapcsoló U7D1

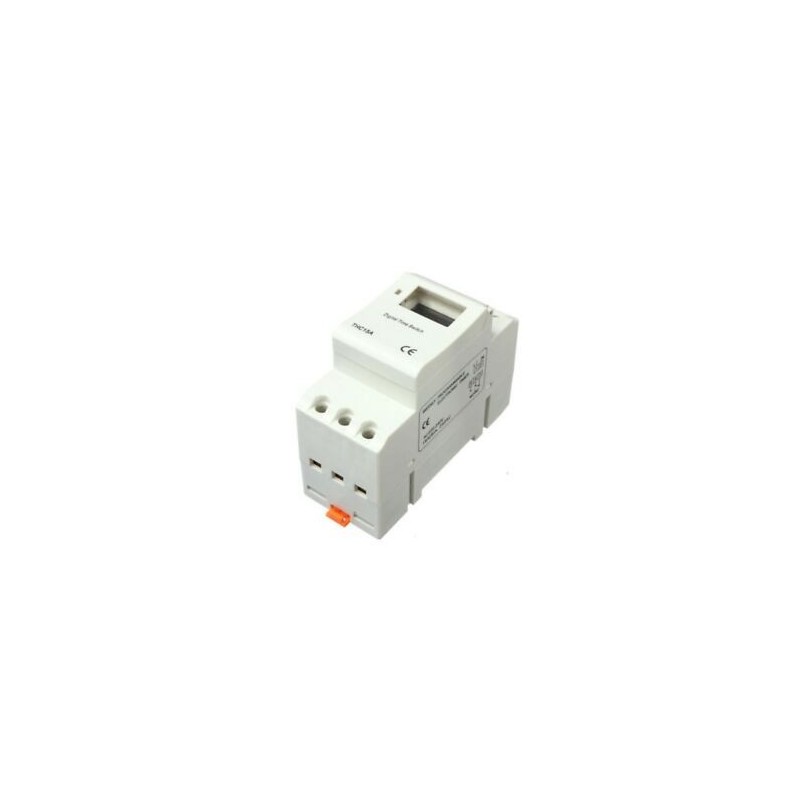

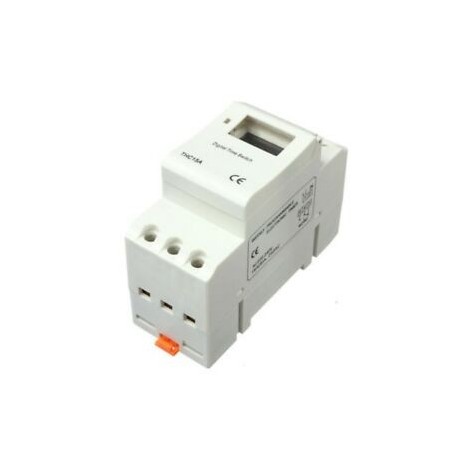

DIN Rail Digital LCD Power Programmable Timer AC 220V 16A Time Relay Switch U7D1

Volatge: 220-240V, 50/60Hz
Number of circuits:1 changeover switch (SPDT)
Error:less than equal 2s/day(25°C)
On / Off operation:8 on and 8 off
Power:4.5VA (max)
Bound:1 min ~ 168 hours
Minimum interval:1min

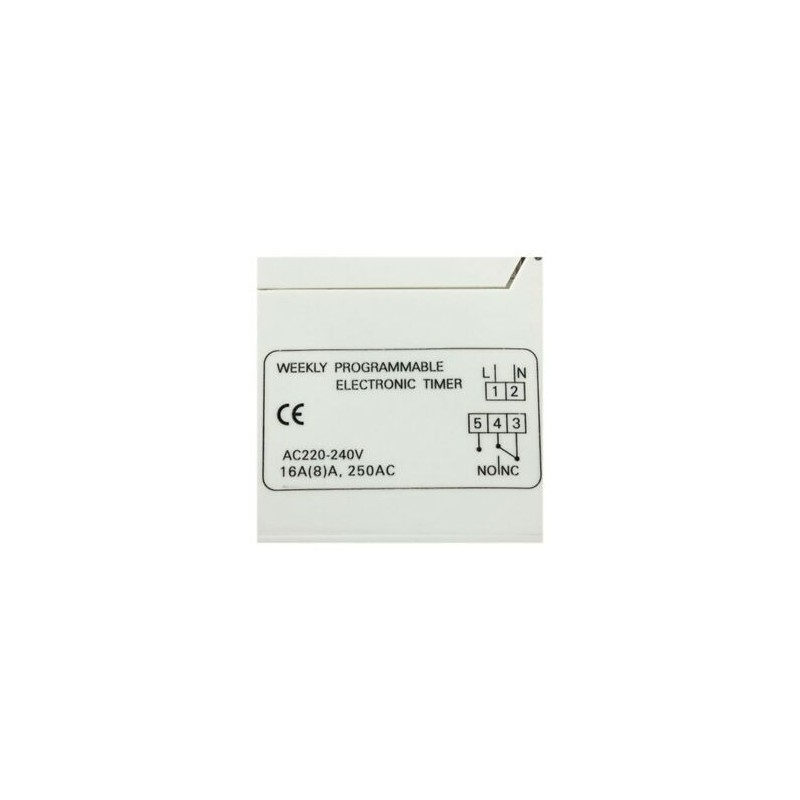

Load capacity:16A(8)A 220-240V AC
Humidity:35-85% RH
Operating temperature:10-55°C
Programming steps:
Steps
1.press" P",Setting 1 on time (display 1 on)
2.press H /M ,Setting hours and minutes
3.press D ,Select same everyday,different everyday,MO-FR,MO-SA,SA-SU,MO WEFR,TU TH SA,MO-WE,TH-SA (if it is same everyday,no need to press this key)
4.press"P",Setting 1 OFF time (display 1 off)
5.press H /M ,Setting hours and minutes turn off time
6.press D ,If you want the same setting everyday,you don`t need to press this key
7.repeat step 2-6,Setting the 2 to17 ON and OFF time
8.press “ ”,Completeset
Full time clock setting:
(1) Press the"clip_image001" and"D " at same time to set the week.
(2) Press the"clip_image001" and"H " at same time to set the hours.
(3) Press the"clip_image001" and"M " at same time to set the mins.
(4) Press the"MANUAL" will display"AUTO ON" or"AUTO OFF"
(5) Press the"MANUAL" can change the status,"ON" is normally open,"OFF" is normally off.
Material: ABS
Package included:
1 x Digital Programmable Timer
1 x User Manual
