Digitális voltmérő feszültség DC 0-32V LED digitális panel a Moto Metrer V4P7 K1Q1-hez

Measuring range: DC 0V--32VMeasurement accuracy: 0.1% Operating Current: RedRed DC2.50-32.0V, Green DC2.70-32.0V, Blue DC3.00-30.0VColor: Blue Features: Ultra-precisionLow start-up voltage, the red minimum 2.5V, green minimum 2.7V, blue minimum 3.0V. Supply voltage is lower than 3.5V, the only decrease in brightness, but does not affect measurement accuracy. Has reverse polarity protection, reverse does not burn. Specification: Input range: DC 2.5V-32V(Max Input: DC 32V. The device can be damaged if input is over 32V) Display: Three 0.36 "digital tubeRefresh rate: about 300mS / timesInput impedance: About 100KOperating Current: Red less than 23mA, Green less than 18mA, Blue less than 13mADimensions:33mm*15mm*10mmpitch of holes:28mmaperture size :2.8mmOperatio...

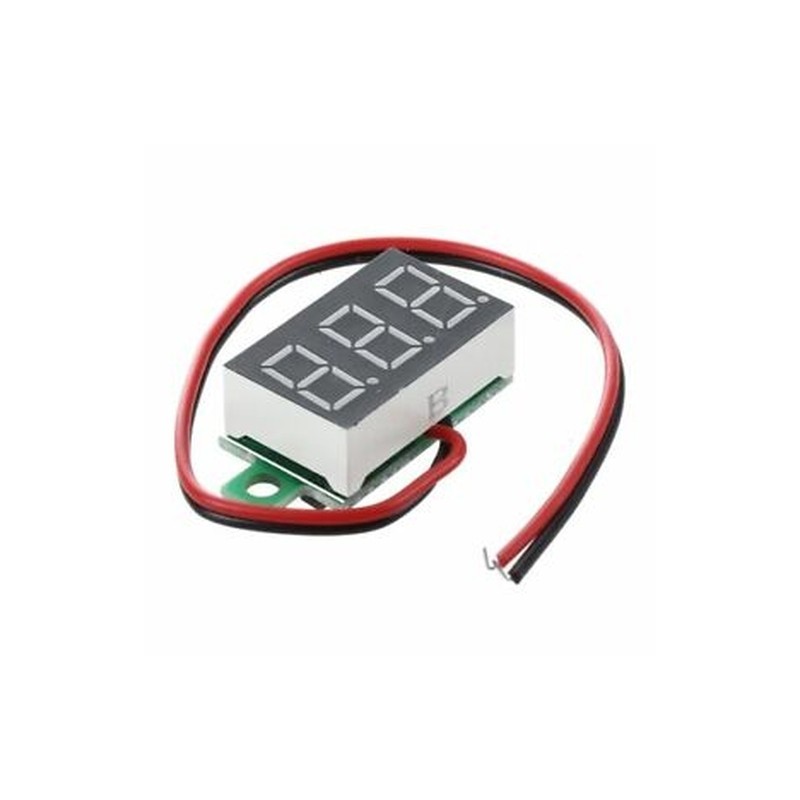

Digital Voltmeter Voltage DC 0-32V LED digital panel for Moto Metrer V4P7 K1Q1
Measuring range: DC 0V--32V
Measurement accuracy: 0.1%
Operating Current: Red
Red DC2.50-32.0V, Green DC2.70-32.0V, Blue DC3.00-30.0V
Color: Blue
Features:
Ultra-precision
Low start-up voltage, the red minimum 2.5V, green minimum 2.7V, blue minimum 3.0V.
Supply voltage is lower than 3.5V, the only decrease in brightness, but does not affect measurement accuracy.
Has reverse polarity protection, reverse does not burn.
Specification:
Input range: DC 2.5V-32V(Max Input: DC 32V. The device can be damaged if input is over 32V)
Display: Three 0.36 "digital tube
Refresh rate: about 300mS / times
Input impedance: About 100K
Operating Current: Red less than 23mA, Green less than 18mA, Blue less than 13mA
Dimensions:33mm*15mm*10mm
pitch of holes:28mm
aperture size :2.8mm
Operation Temp: -10 degree 65 degree
Display Color: Red, Blue, Green
Lead Length: 15cm
Wiring:
Red:power supply
Black:power supply -, measure -
white:measure
Package Include:
1x Digital Voltmeter
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
