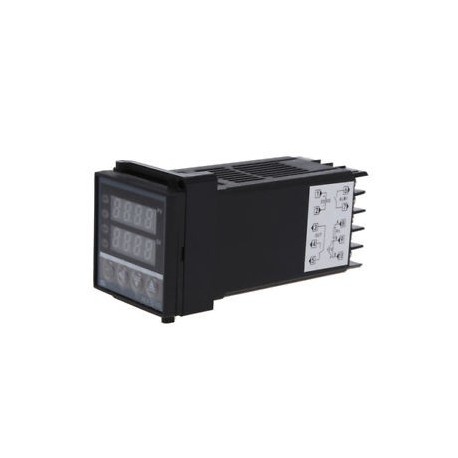

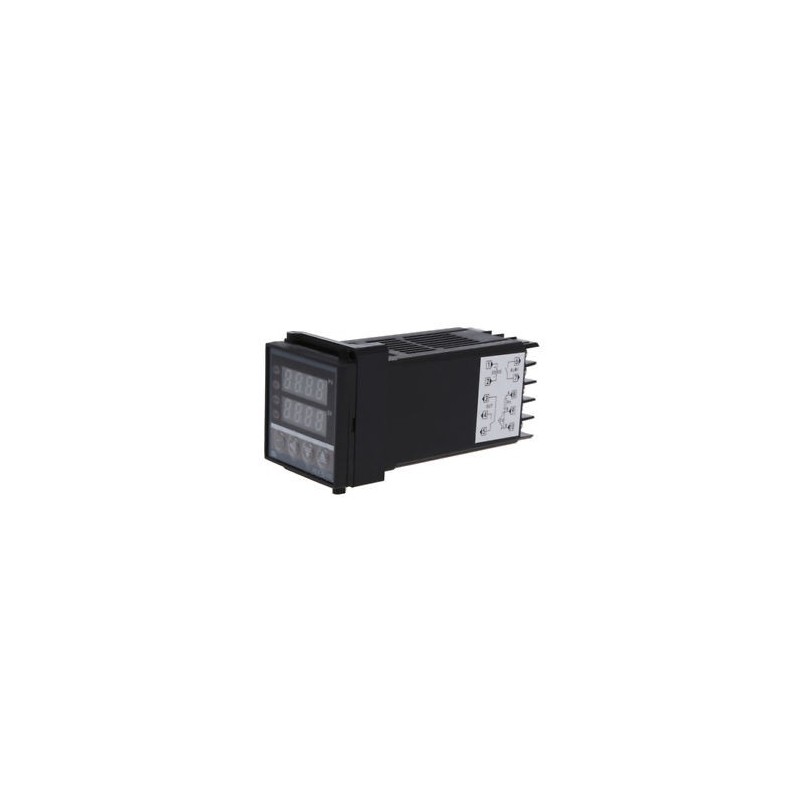

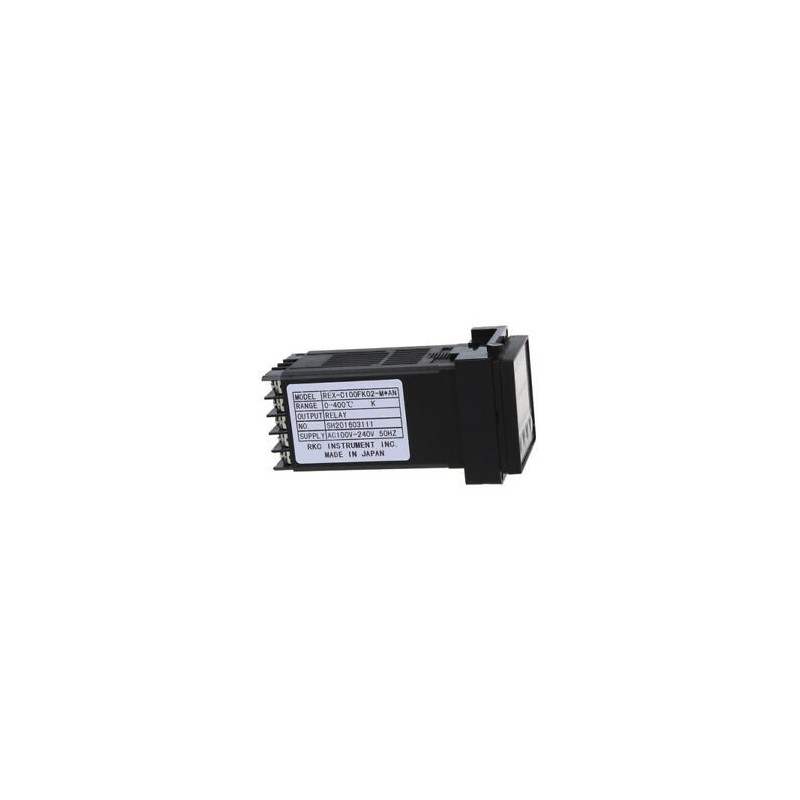

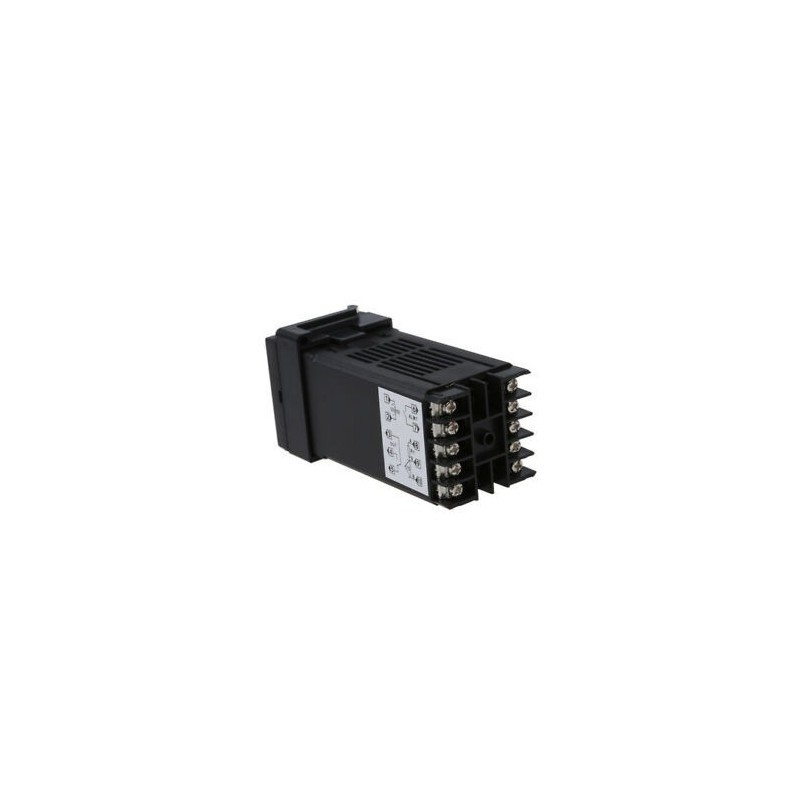

Digital PID 0 to 400? Temperature Control Dual LED REX-C100 K Thermocouple X5Q0
Contact capacity of output: 250V AC 3A (resistive load)
Setting value (SV): identical to measuring range (PV)
Proportional band (P): 0~full range (ON/OFF control when set to 0)
Integral time (I): 0~3600 sec (No integral action when set to 0)
Derivative time (D): 0~3600 sec (No derivative action when set to 0)
Features:
Measuring accuracy: /- 0.5% FS
Cold-end compensation tolerance: /- 2℃（can be modified by software in 0~50℃）
Resolution:14 bit
Sampling cycle:0.5 Sec
Dimensions:48 x 48 x 110 (mm) /- 0.2mm
Process value (PV),Setting value (SV)
Output,alarm and self-tuning can be indicated by:LED
PIN control (including ON/OFF,step-type PID and continuous PID)
Self-tuning control
Relay output:contact capacity 250V AC 3A (resistive load)
Alarm function output:1 way
Heat-reset proportional cycle:1~100 sec
Detective temperature range：0 to 400℃
Insulation resistance:>50M ohm(500V DC)
Insulation resistance:1500V AC/min
Power Consumption:10 VA
Service environment:0~50℃,
environment with no corrosive gas 30~85% RH
Please assure that you are familiar with this product before you buy,because the manual we offer is Chinese.

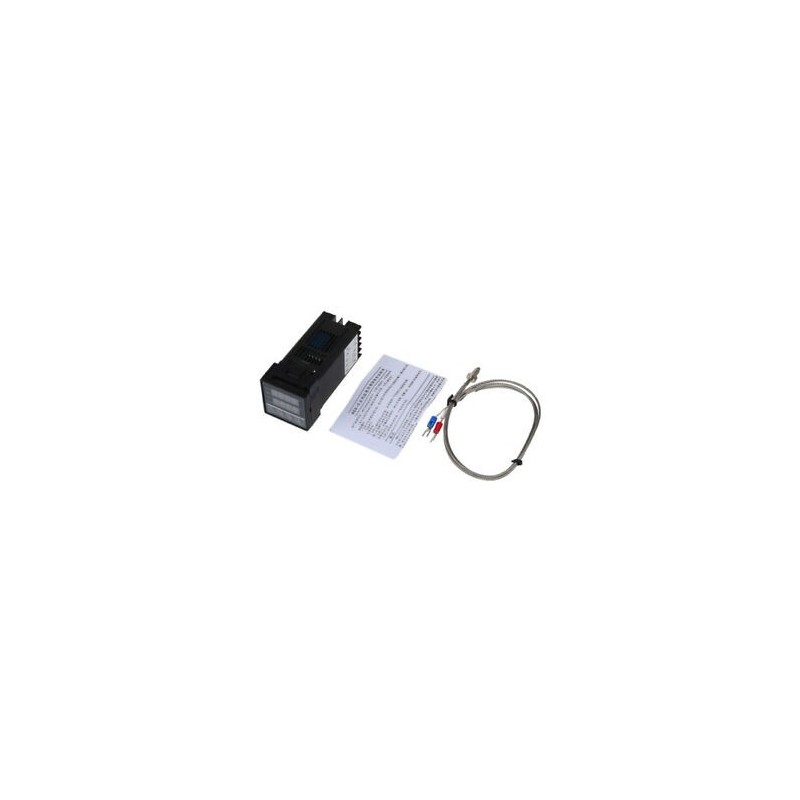

Package Includes:
1 x rex-c100fk02-m-an PID Digital Temperature Control Controller

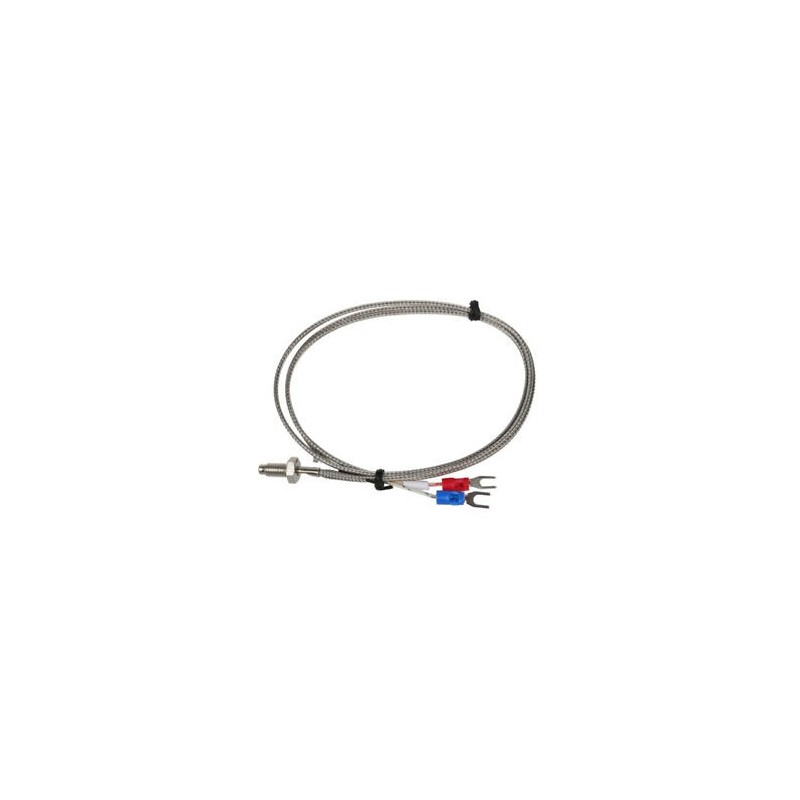

1 x K Type Probe Sensor
