Csomag: 4. csomag - iMAX B6 AC RC töltő 80W B6AC 6A kiegyensúlyozó töltő digitális LCD képernyő Li-ion LiFe Nimh Nicd

This item is for a rapid charger/discharger for all kind of battery of RC hobby, with built in balancer for lipo battery. Battery that can be charged by this charger,Lipo / Li-ion / LiFe / NiMh / NiCad / Pb / Lead Acid
Feature:
1. High-power and high-performance circuit
2. Microprocessor controlled
3. Maximen safety: Delta-peak sensitivity, Capacity limit, processing time limit, tempreture limit, input power monitor
4. Monitoring the voltage of individual cell
5. Can charge Li-ion / LiPo / LiFe 1-6 cells, and Ni-Cd / NiMH 1 -15 cells
6. Dual Power, built-in AC adapter
7. UndefinedLarge range of charge currents
8. Store function, allows safe storage current, and data storage (Store up to 5 packs in memory)
9. Battery break in and cycling
10. Built-in temperature sensor
11. Separate voltage detector for balance charge mode.
Description:
Color: Bright blue
Oeration voltage range : DC 11.0 ~ 18.0 Volt or AC 100V ~ 240V 50/60Hz
Circuit power : AC to DC adaptor (DC 11.0 ~ 18.0V / 5A)
Max. charge power 50W
Max. discharge power 5W
Charge current range : 0.1~5.0A
Discharge current range : 0.1~1.0A
Current drain for balancing Li-Po : 300mAh/cell
NiCd / NiMH battery cell count : 1~15 cell
Li-Ion / Polymer cell count : 1~6 series
Pb battery voltage : 2V~20V
Weight : 546g (Net Weight)
Dimensions : 136 x 141*34mm
Package weight: 778g

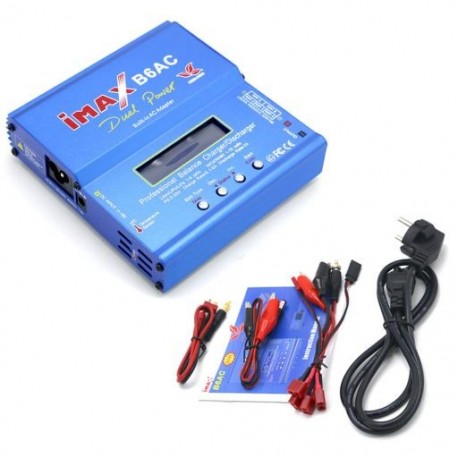

Package include:
1 x imax B6AC charger (80w )
1 x Multi-fuctional extension wire
1 x Universal crocodile clip
1 x JST plug
1 x Manual
1 x AC plug
Please note:
our machine can't support to measure the 1s battery 's voltage andResistance
1.PROGRAM SELECT LIPO BATT : to charge /balance charge/fast charge/storage/discharge/lipo/lion/life batteries
2.USER SET PROGRAM: to set the parameter of charge batteries which you need .
3.PROGRAM SELECT NIMH BATT :to charge/discharge/cycle/nimh/nicd batteries
4.PROGRAM SELECT SAVE DATA : save setting data
5.PROGRAM SELECT PB BATT:to charge/discharge the pb (lead acid ）batteries .
