WS2812B RGB 5050SMD Rugalmas NYÁK Teljes színű LED Pixel Strip Dream Color IP67 Vízálló LED Képernyő LED falhoz Csak

WS2812B RGB 5050SMD Flexible PCB Full Color LED Pixel Strip Dream Color IP67 Waterproof Making LED Screen LED Wall Only DC5V
WS2812B RGB 5050SMD Individual Addressable 16.4FT Flexible Black PCB Full Color LED Pixel Strip Dream Color IP67 Waterproof Making LED Screen LED Wall Only DC5V

Specification:
Input voltage : DC5V
Power : 1 leds chip = 0.3Watt !!!
144 leds=43.2 Watt
150 leds= 45 Watt
300 leds = 90 Watt
LED resource : WS2812B led(5050 SMD RGB LED with built-in improved version of ws2811 ic)
LED: Each LED is separately controlled , it is cutable
IC Type: Improved version ws2812 IC(built inside the 5050 smd rgb led) of IC: (1 IC drives 1 led chip)
Pixels: 30 leds/60leds/144leds per meter
Pitch : 16.6mm(1000/64)
Grey scale : 256
Bits/color: 8-bits/color
FPC size : Width: 10mm, the 144 LEDS/M IS 12MM WIDE  High: 2.5mm
FPC color : BLACK / White
Colors: Full color RGB, dream color changing

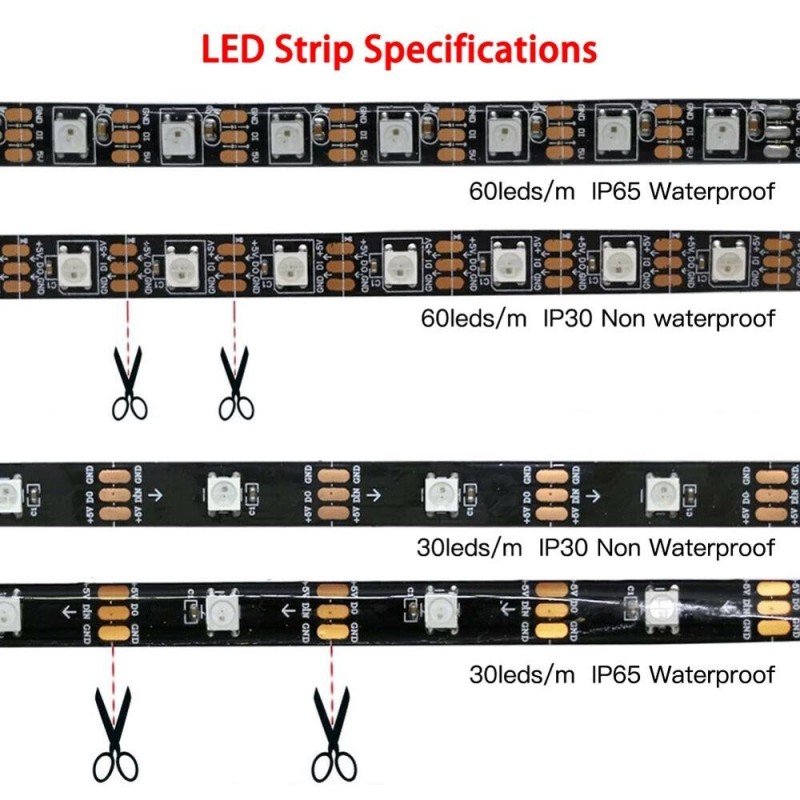

Cuttable: Every LED is cuttable
Lighting angle: 120degree
Life time: 50,000hours
Working mode: External pixel controller and power supply
Connection: VCC : RED; GND:BLACK; DAT:BLUE
Package : In anti-static bag.
IP67 = Waterproof

Package List :

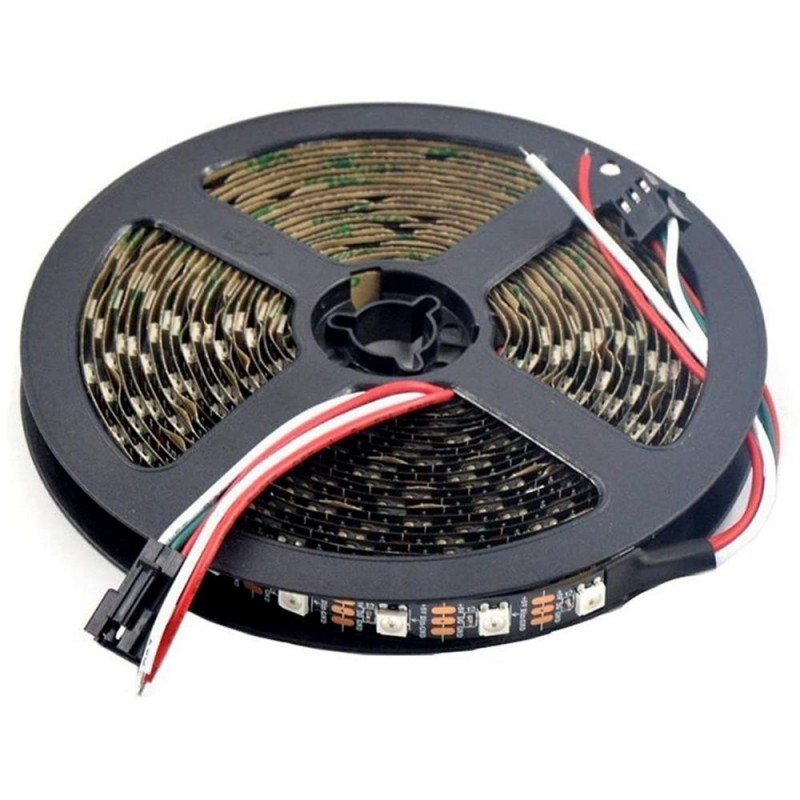

WS2812B Pixels Strip

Note :
WS2812B strip must connect DC5V Pixel Controller and DC5V Power Supply .
Not included controller and power adapt
