Alacsonyabb ár! W1209 - -9-110 ° C DC 12V piros LED W1209 / W1401 Digitális termosztát hőmérséklet szabályozó

Nagyobb

Előző

W1209 - -9-110 ° C DC 12V piros LED W1209 / W1401 Digitális termosztát hőmérséklet szabályozó

Cikkszám: 401615185708/2

Feltétel: Új termék

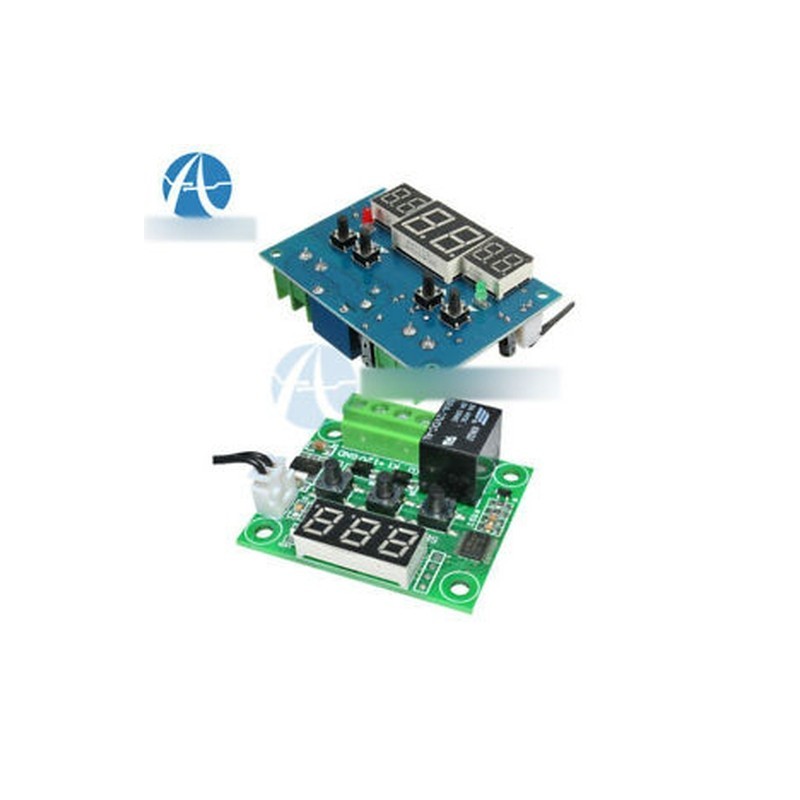

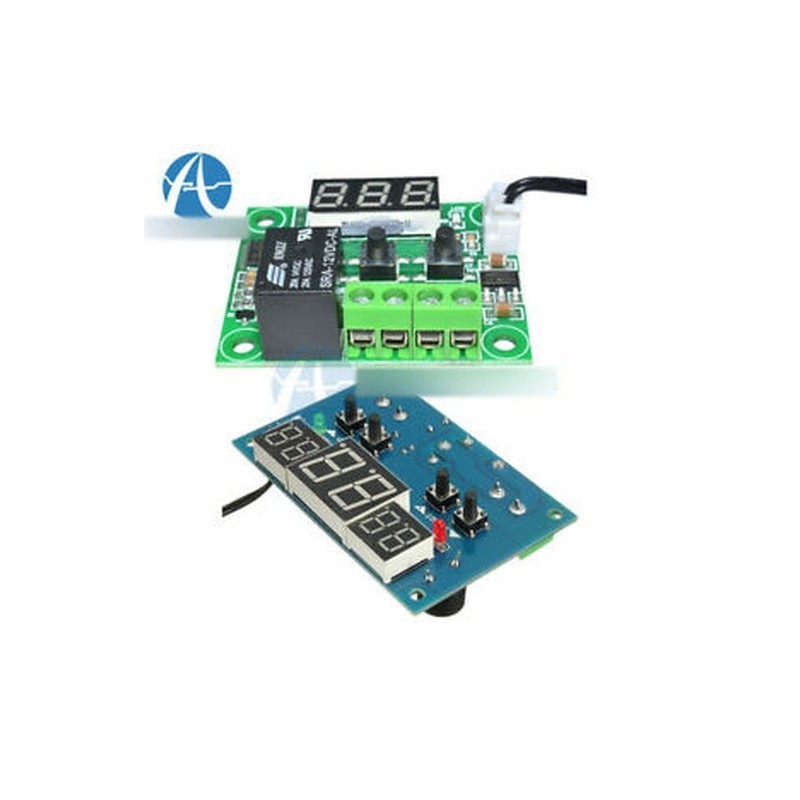

-9-110Â°C DC 12V Red LED W1209/W1401 Digital Thermostat Temperature Controller

W1209:Note :Relayoutputinterface is aswitch,whenit working ,thesetwoportsare connected,
Ifnot work,these twoportsarenotconnected. Pls know it . !!!!!Specifications:Temperature range :-50-110 â„
Dimensions: 48.5 * 40mm
Temperature control mode: ON / OFF
ResolutionWhen temperature is 0.1â„, the resolution is -9.9~99.9, other temperature segment is 1â„
Control accuracy: 0.1 â„
Hysteresis accuracy: 0.1â„
Refresh rate: 0.5S
High temperature protection 0-110â„
Supply voltage: DC 12V
Static current: ≤ 35MA, attract current ≤ 65MA
Output voltage: DC 12V
Output power: 20A relay
Measurement input: NTC (10K 0.5% ) Waterproof Sensor
Environmental requirements: -10 ~ 60 â„ ďĽŚHumidity 20% -85%

How to use:
Connect the power supply and the load, you can supply to the controller,
Is displayed as a measured temperature,
Press the SET button, the display flashes the temperature,
Press - to set the desired temperature,
After setting press SET to confirm return,
The controller automatically performs the relay by setting off!
Lights, LED status descriptions:
Indicator: Off The relay is switched off, Always indicate the relay is closed.
LED: Shows LL is the sensor open, showing ?HH is out of range, the thermostat will be forced to close the relay, the display --- as high temperature protection.W1401:1. Digital Temperature Controller2. Condition: New
3. Three display window(srart, in progress, stop)
4. Automatic heating or cooling according to the temperature
5. Setting and testing range -9~99â„
6. Control accuracy:1â„
7. Temperature measurement accuracy:1â„
8. Refresh rate: 0.5S
9. Input power: DC9-15V
10. Environmental requirement:-10~60â„ , humidity 20% ~85%
11. Output: relay input, capacity 220v 10a/12v 10a
12. Measuring inputs: NTC(3950-10K 1% ) Waterproof type sensor
13. Size: approx. 78 x 51mm
14. Start light: red
15. Stop light: green
16. Color is shown as picturesPLS NOTEthat due to lighting effects, monitor's brightness/ contrass settings ect,
there could be some slight differences in the color tone of the pictures and the actual item!
