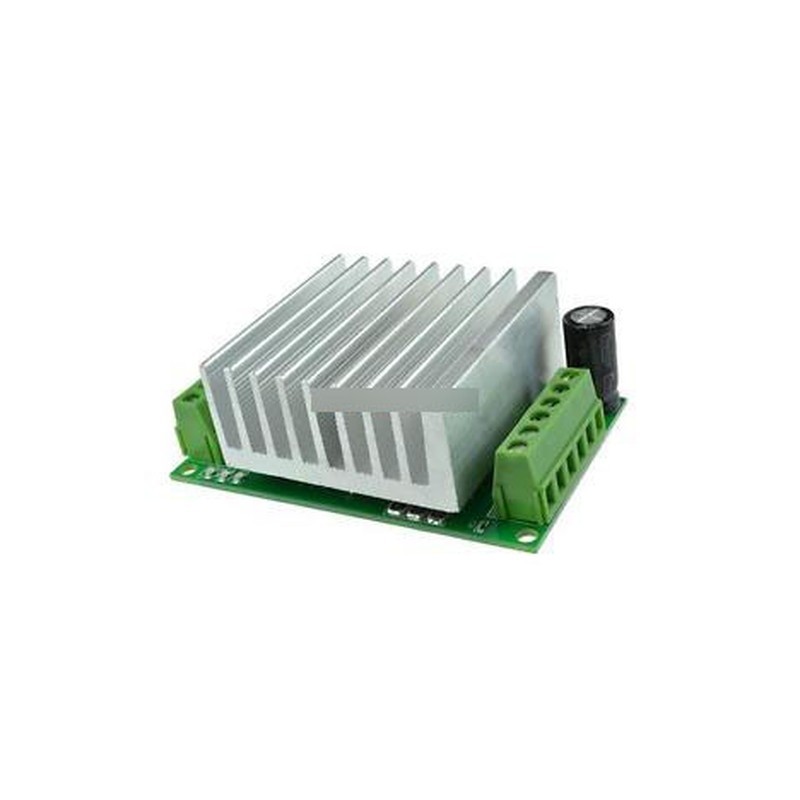

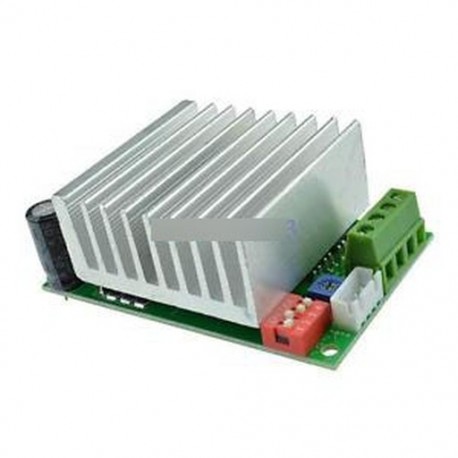

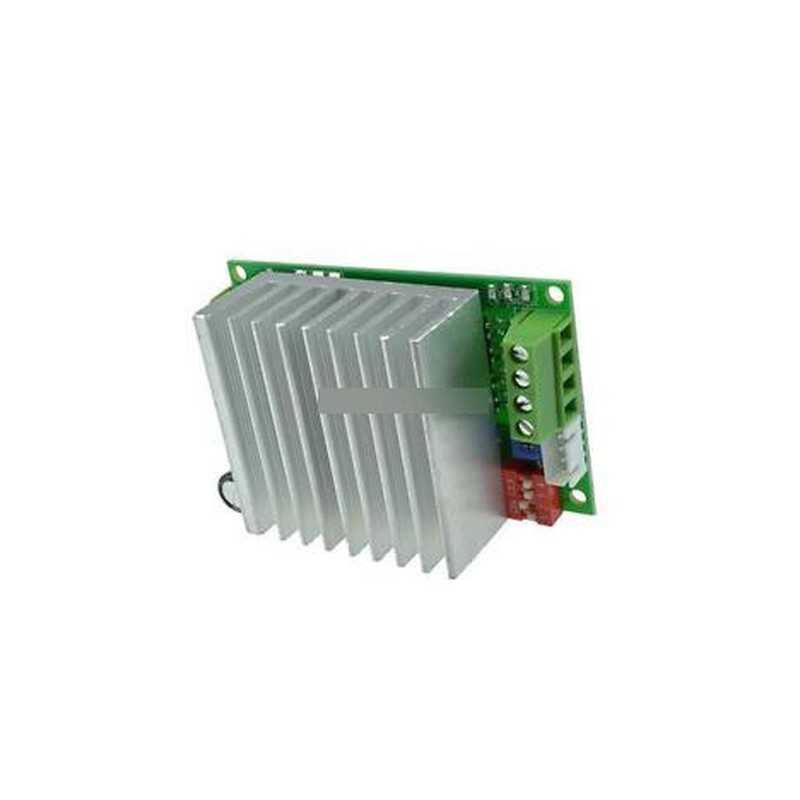

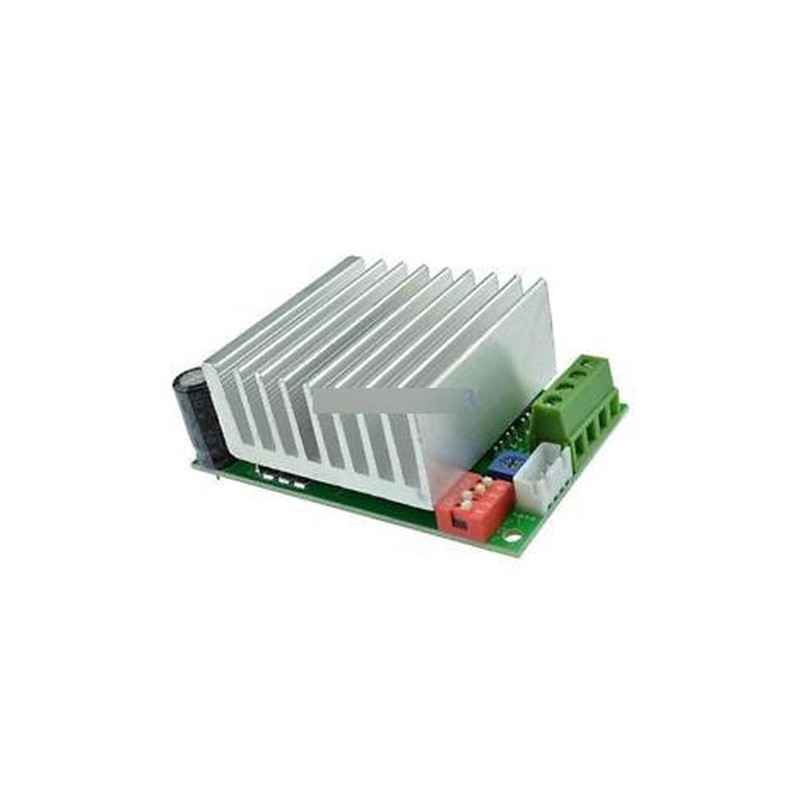

TB6600 4.5A CNC egytengelyes léptetőmotoros meghajtó kártya vezérlő ÚJ

TB6600 4.5A CNC single-axis stepper motor driver board controller NEW 1) Operating voltage DC 10V-45V. DC32V switching power supply is recommended.2) high-speed optical coupling 6N137, ensure high speed without losing step.3) Toshiba's new high current, high voltage TB6600HG new original chip, there are low-pressure shut-off, overheating parking and over-current protection circuit, short-circuit protection and increased compared to TB6560.4) Rated maximum output reached: ± 4.5A.5) for 4.2A 42,57,86 within the two-phase / four-phase / four-wire / six-wire stepper motor.6) Automatic half current function.7) Subdivision: full step, half step, 1/4-step, step 1/8, 1/16-step, up to 16 segments.8) Volume: Width Length 82 * 50 * high 35 (MM) Product Features:1, the output current is infinitely adjustable to meet your various application requirements.2, automatic half current function. And a semi-automatic flow switch, easy to use.3, the use of high-speed optical coupling 6N137 ensure high-speed without losing step.4, printed on the back panel are subdivided setup instructions.5, used to increase the heat sink, good heat dissipation.6, output short-circuit protection, the use of mind.7, using common anode input mode, there are two input terminals, wiring more convenient.Package Included:1 x TB6600 4.5A CNC Single-axis Stepper Motor Driver Board Controller
