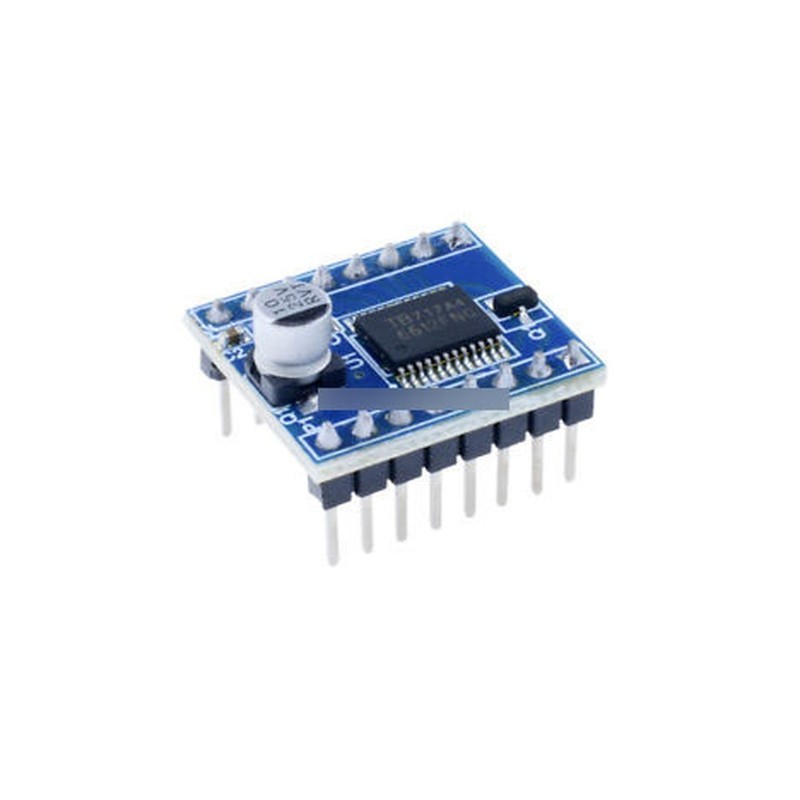

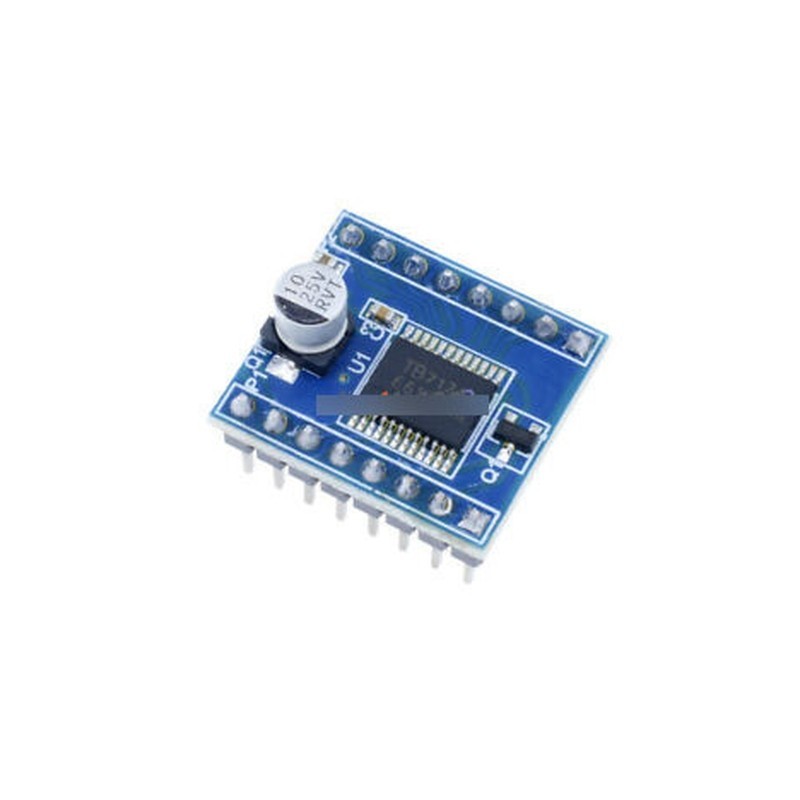

Replce L298N kettős motorvezérlő modul motorvezérlők TB6612FNG Arduino STM32 ARM

Replce L298N Dual Motor Driver Module Motor Controls TB6612FNG Arduino STM32 ARM
Features:
â… ,Characteristic1).TB6612FNG used in the design is a new drive device can independently controltwo bidirectional DC motor, it has a high level of integration, while providing sufficientoutput capability, operating performance and energy consumption also has advantages,so the integration miniaturization of the motor control system, it can be ideal as a motor driving device.
2).It has a high current MOSFET-H-bridge, dual circuit outputs can drive two motors.3).TB6612FNG highest output per channel 1.2 A continuous drive current,peak current start up 2A/3.2 A (continuous pulse / single pulse);4 kinds of motor control modes: Forward / Reverse / Brake / Stop;PWM supports frequencies up to 100 kHz; standby mode;chip low-voltage detection circuit and thermal shutdown protection circuit;working temperature: -20 ~ 85 ℃; SSOP24 small SMD package.Ⅱ,ApplicationsConstitute use TB6612FNG and DC motor control unit MCU and its applicationin the wheeled mobile robot system in the differential drive. Test runs showedthat this combination of devices and SCM applications to achieve a stable andflexible motor drive control. TB6612FNG achieve in terms of integration,performance and output capability to run a better balance for single,dual DC motor design and development of a digital control system.Ⅲ,Parameters
Supply voltage (VCC): 5V
Motor supply voltage (VM): 5V ~ 13.5VInterface:
AIN1、AIN2 Channel A input
AO1、AO2 Channel A Output
BIN1、BIN2 Channel B input
BO1、BO2 Channel B OutputBy controlling Arduino AIN1, AIN2 or BIN1, BIN2 different levels to achieve different combinations of functions.
Motor speed is controlled by PWM.â…¦,Precautions
Input voltage must not be greater than 13.5V, otherwise there might be damage to the circuit.
Package included
1x Replce L298N Dual Motor Driver Module Motor Controls TB6612FNG Arduino STM32 ARMx
