5V-35V 5A 20 kHz LED PWM DC motorvezérlő fordulatszámszabályozása

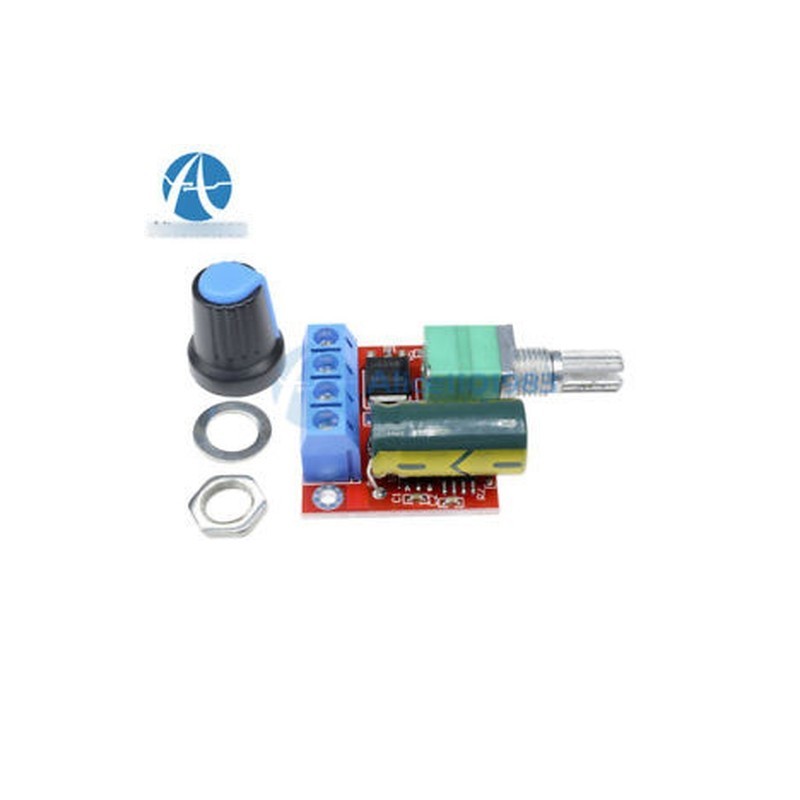

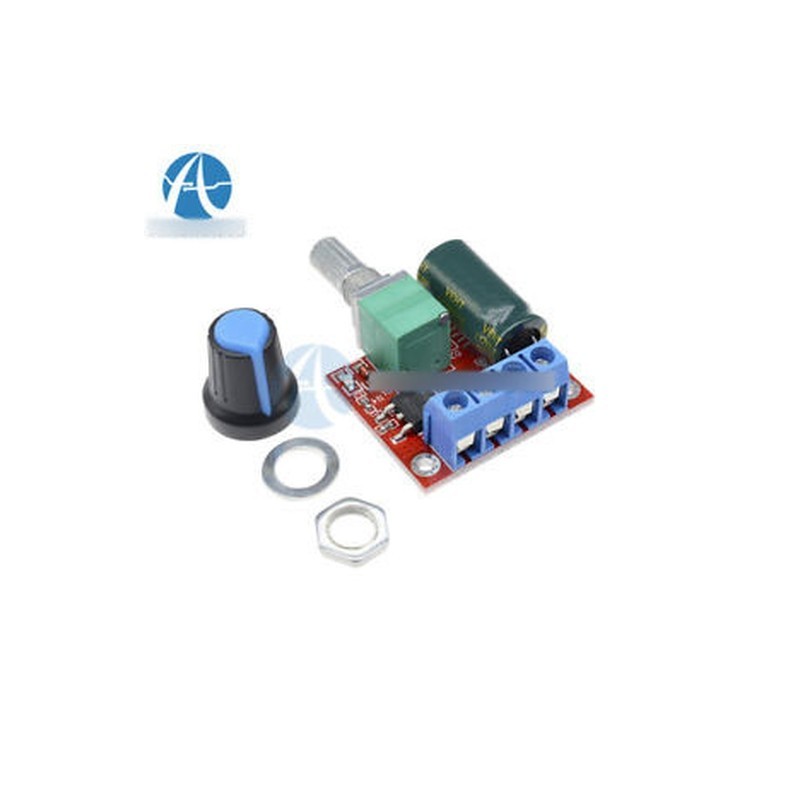

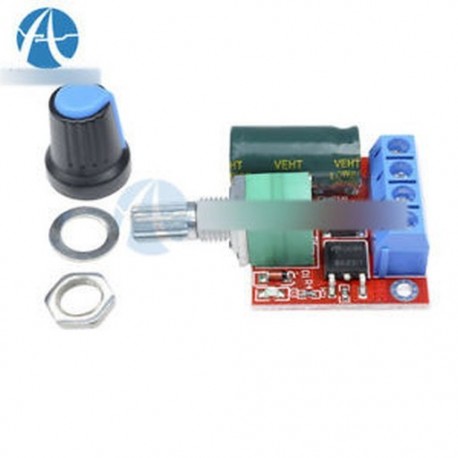

5V-35V 5A 20khz LED PWM DC Motor Controller Speed Regulation Dimmer
Product parameters:Operating voltage: DC4.5V-35V
Output current: 0-5A
Output power: 90W (max)
Quiescent current: 7uA (standby)
PWM duty cycle: 1% -100%
PWM frequency: 20khz
Size: 30mm x 26mm x 14mm (Without Handle)Precautions:DC motor governor input is DC, can not directly connected to the AC (for example: home 220V AC), otherwise it will burn!
DC power supply positive and negative terminals do not reverse, otherwise the governor may be damaged.
The motor can be positive or negative, when the direction of operation and expectations do not match, you can adjust the line order to change the direction.
Adjust the potentiometer knob to change the governor output duty cycle, the motor speed changes.Package Included:1 x 5V-35V Speed Control Switch
