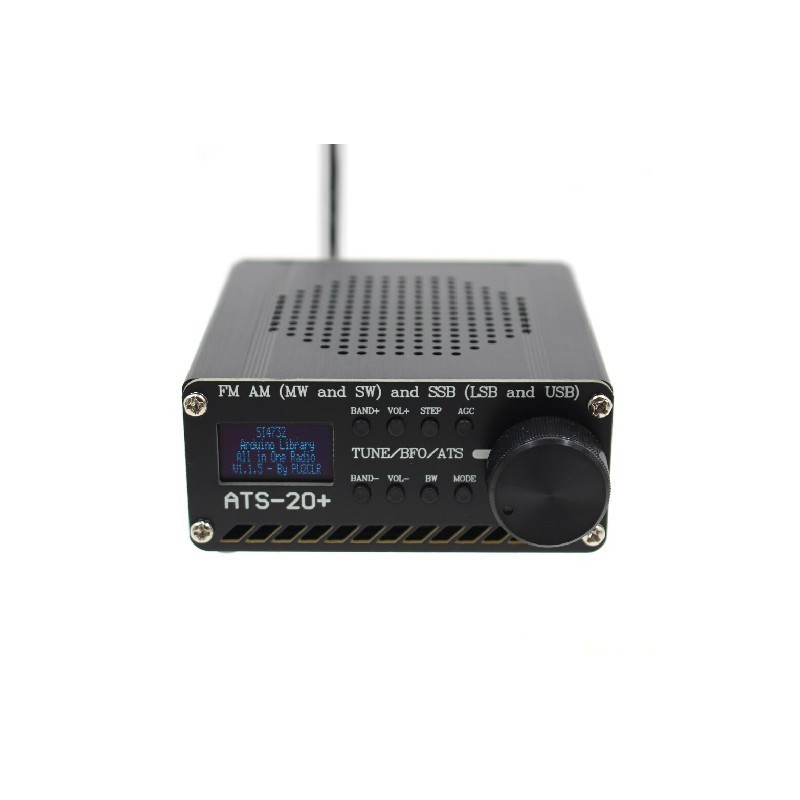

ATS-20 PLUS SI4732 minden sávos rádióvevő FM AM (MW és SW) és SSB (LSB és USB) antennával és C típusú töltő

ATS-20 PLUS SI4732 minden sávos rádióvevő FM AM (MW és SW) és SSB (LSB és USB) antennával és C típusú töltő adatkábellel
ATS-20 PLUS SI4732 All Band Radio Receiver FM AM (MW And SW) And SSB (LSB And USB) With Antenna And Type-C Charging Data Cable
SI4732 Full Band Radio Receiver ATS-20 Receiver FM AM (MW SW) SSB (LSB USB) Antenna
Description:
0.96-inch OLED display, you can view FM bands, AGC on/off, mono as needed.
Supports automatic retention of settings after power failure.
The built-in 3.6V, 1000mAH polymer lithium battery provides a stable and sustainable power supply.
Supports USB charging, provided using a type-c charging cable.
Equipped with audio output function, supports 3.5mm headphones.
Also supports 1.5W output for 8 ohm speakers.
The antenna interface adopts SMA interface, the printed circuit board retains the SI4732 package, and the chip can be replaced by itself, and the software is compatible.
22 commercial and ham radio bands are pre-configured and you can use them freely.
Supported frequency bands: FM, AM (MW and SW) and SSB (LSB and USB).
Audio Bandwidth Filters 0.5, 1, 1.2, 2.2, 3 and 4Khz.
Feature:
1. Using the ATS-25 encoder, has long service life and better hand feeling
2. Added FM amplifier and M filter
3. Use the knob cap of ATS-25
4. Added TYPE-C socket.
Specification:
Band:
FM_BAND_TYPE, 8400, 10800, 10430, 10,
LW_BAND_TYPE, 100, 510, 300, 1,
MW_BAND_TYPE, 520, 1720, 810, 10,
SW_BAND_TYPE, 1720, 3500, 1900, 1, // 160 meters
SW_BAND_TYPE, 3500, 4500, 3700, 1, // 80 meters
SW_BAND_TYPE, 4500, 5500, 4850, 5,
SW_BAND_TYPE, 5500, 6300, 6000, 5,
SW_BAND_TYPE, 6300, 7800, 7050, 5, // 40 meters
SW_BAND_TYPE, 7800, 10000, 9600, 5,
SW_BAND_TYPE, 10000, 11000, 10100, 1, // 30 meters
SW_BAND_TYPE, 11000, 12500, 11940, 5,
SW_BAND_TYPE, 12500, 13900, 13600, 5,
SW_BAND_TYPE, 13900, 14500, 14270, 1, // 20 meters
SW_BAND_TYPE, 14500, 15900, 15300, 5,
SW_BAND_TYPE, 15900, 17900, 17600, 5,
SW_BAND_TYPE, 17900, 18300, 18100, 1, // 17 meters
SW_BAND_TYPE, 18300, 21900, 21200, 1, // 15 meters
SW_BAND_TYPE, 21900, 26200, 24940, 1, // 12 meters
SW_BAND_TYPE, 26200, 27900, 27500, 1, // CB band (11 meters)
SW_BAND_TYPE, 27900, 30000, 28400, 1; // 10 meters
Shell material: ABS
Size: 91*82mm
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

1 X Receiver Host
1 X Telescopic Antenna
1 X Type-C Charging Data Cable
1 X Mirror Cloth
1 X Corner Pad
