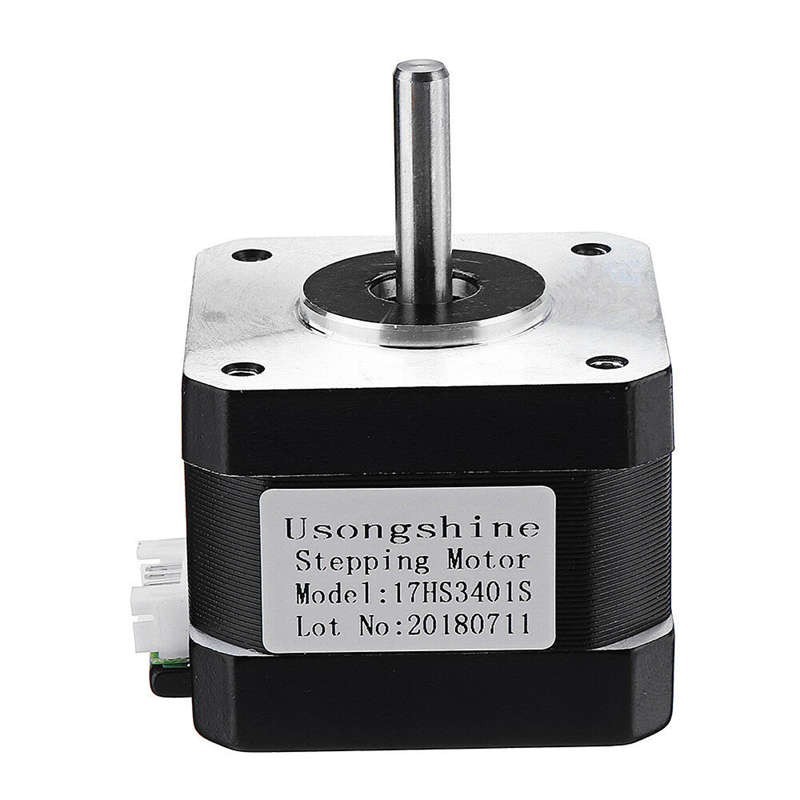

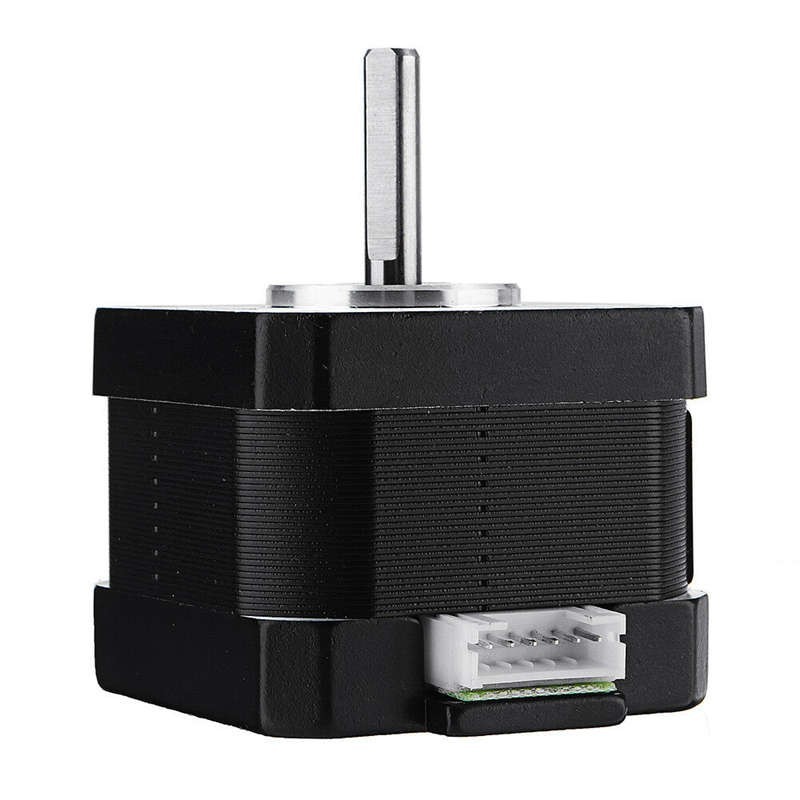

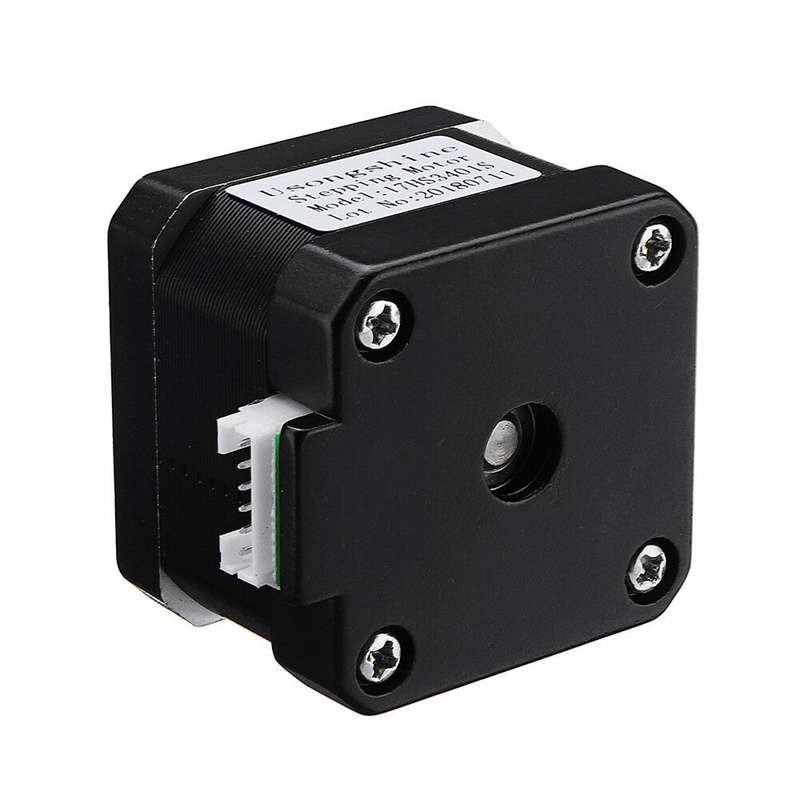

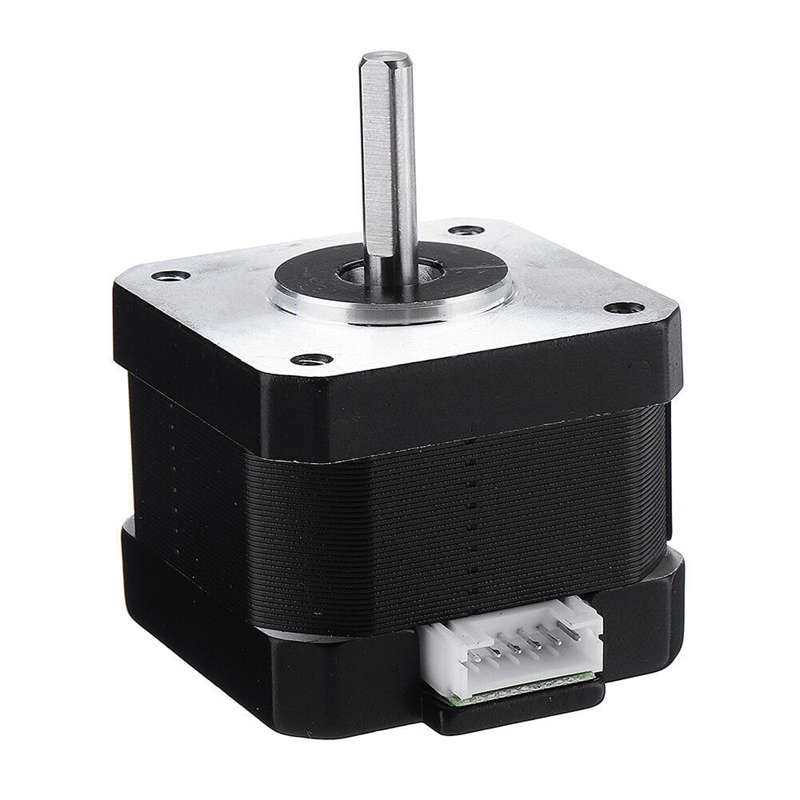

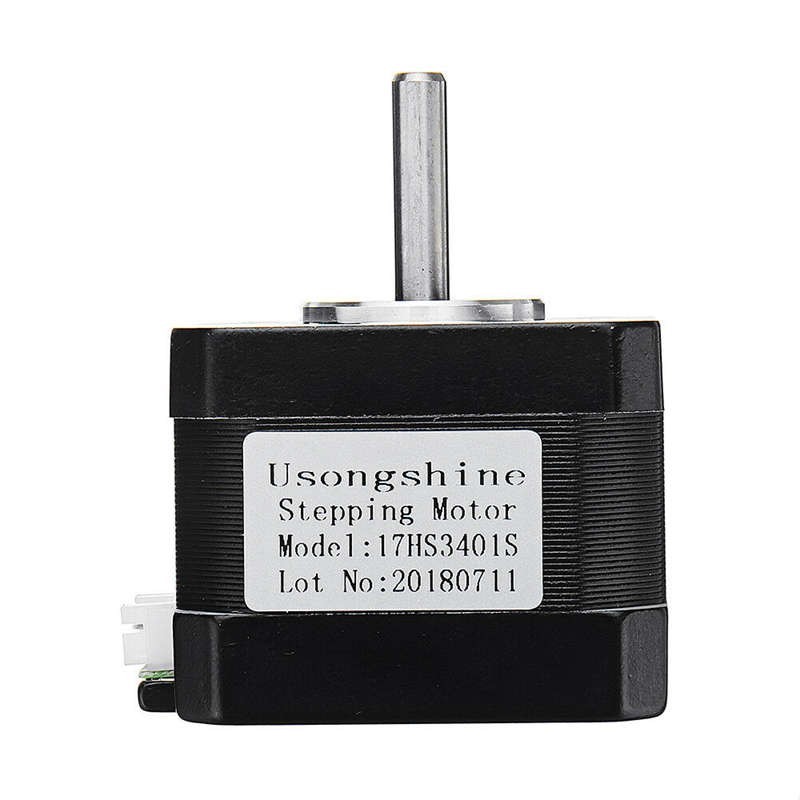

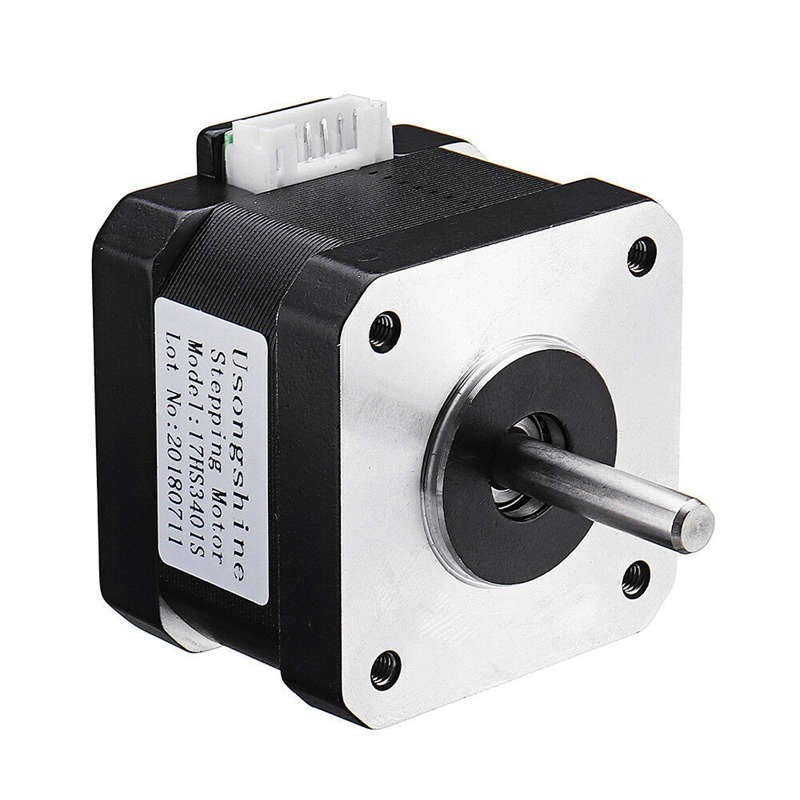

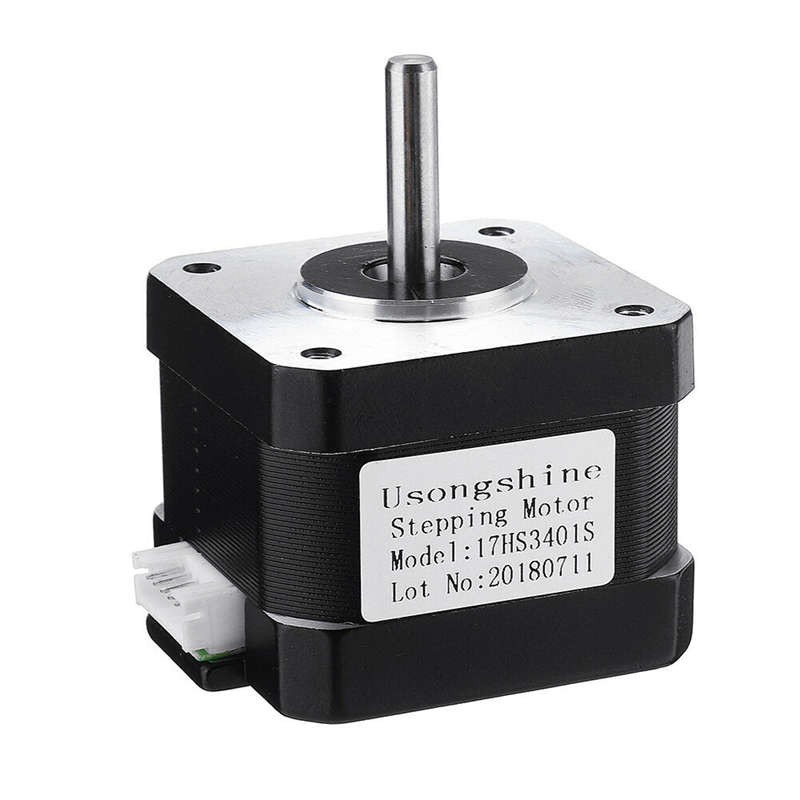

4X (17Hs3401S 4-vezetékes Nema léptetőmotor 42 motor 42Bygh 1.3A CNC és 3D PrinM7D7

4X(17Hs3401S 4-Lead Nema Stepper Motor 42 Motor 42Bygh 1.3A Cnc And 3D PrinM7D7

4X(Holding Torque:2800
Current / Phase:1.3A
Step Angle(degrees):1.8
Model Number:17HS3401S
Phase:2
Type:Hybrid
Step angle accuracy: - 5% (full step,not load)
Resistance accuracy: - 10%
Inductance accuracy: - 20%
Temperature rise: 80deg Max(rated current,2 phase on)
Ambient temperature :—20deg ~ 50deg
Insulation resistance:100MΩ Min,500VDC
Insultion Strength:500VAC for one minute
Red: A
Green: A-
Yellow: B
Black: B-
colour:Silver black
Material:Metal ABS
Package Contents:

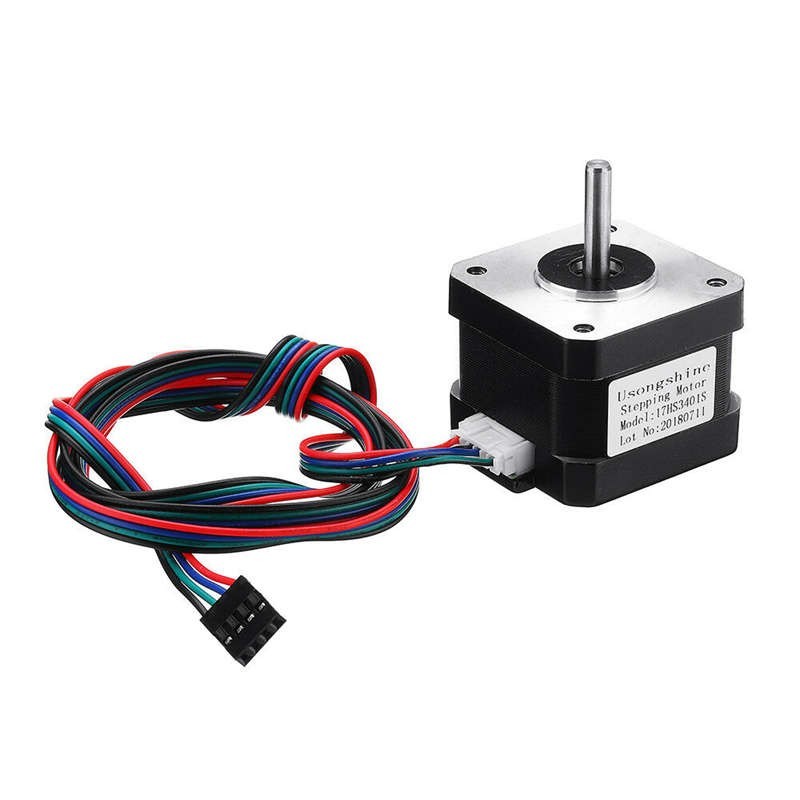

1 * 17HS3401S motor
1 * 4Pin Cables)
