2X (Mk2.5 / Mk3 - Mk2.5S / Mk3S) A legfrissebb 3D Ir Filament érzékelő frissítésének észlelése Stu F5O5

2X(Mk2.5/Mk3 To Mk2.5S/Mk3S Latest 3D Ir Filament Sensor Upgrade Detect Stu F5O5

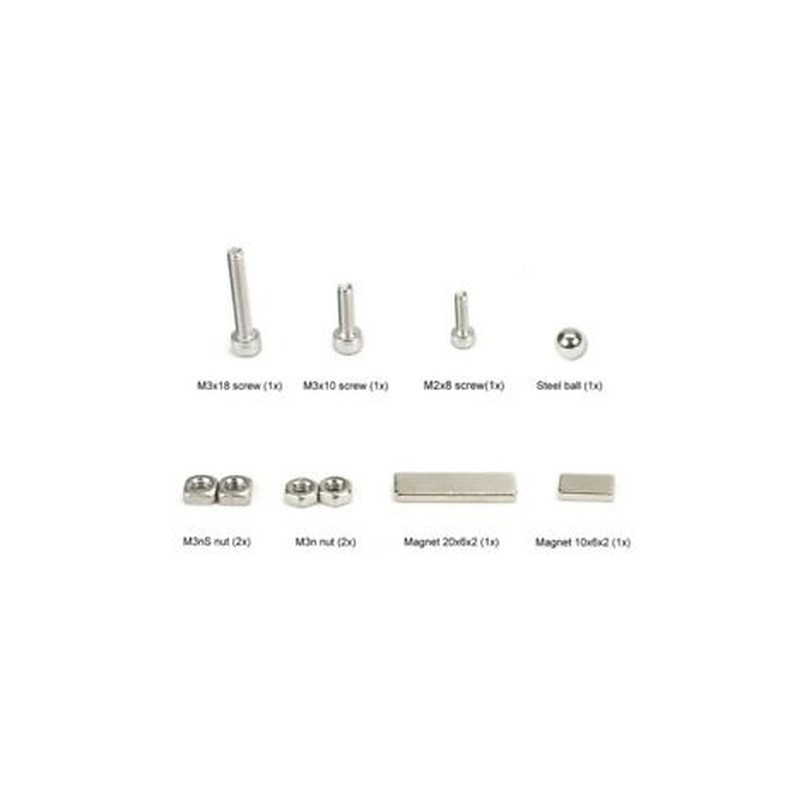

2X(1.Place the IR-sensor on the top of the Extruder-body and secure it with the M2x8.
2.Tighten the M2x8 screw, the sensor shouldn`t be able to move, but be careful the PCB isn`t indestructible ;)
3.Connect the cable, mind the correct orientation of the connector and wires.
4.Leave a slack behind the sensor like in the picture. Don`t create too big loop as it might interfere with the frame. If needed adjust the length by gently pulling/pushing the cable.

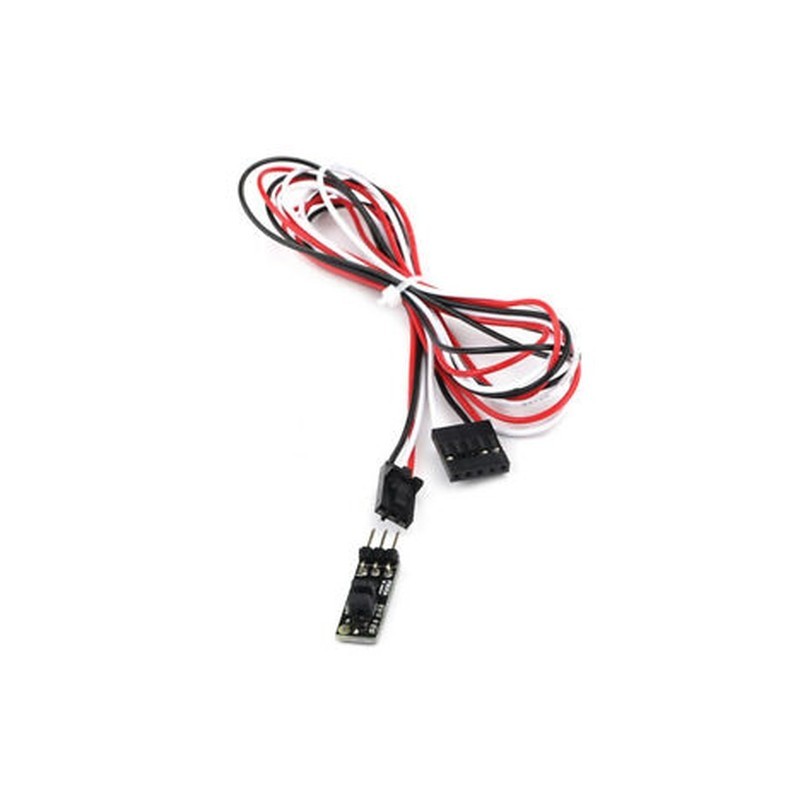

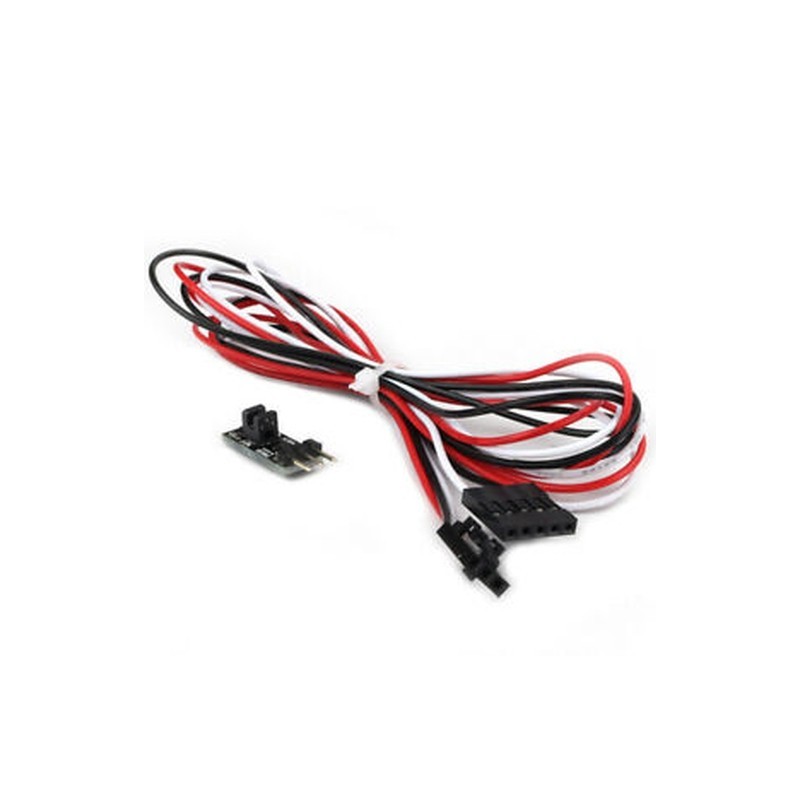

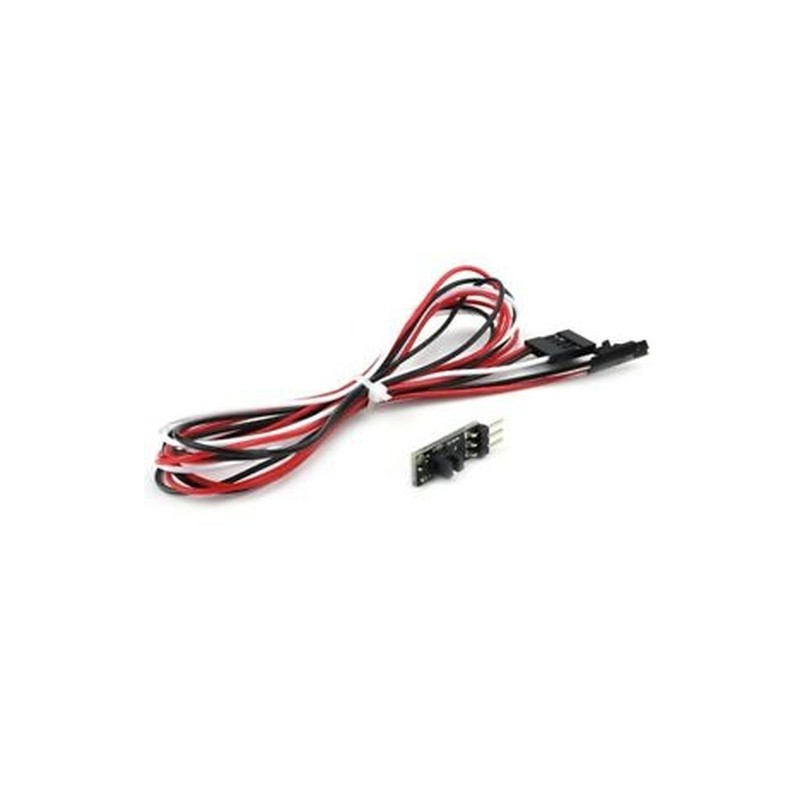

The new sensor is using the optical sensor which is triggered
by a simple mechanical lever.
This sensor doesn`t care about the optical properties of the filament (it can be completely invisible) and cannot die because of mechanical wear.
Colour: Black
Material: metal plastic

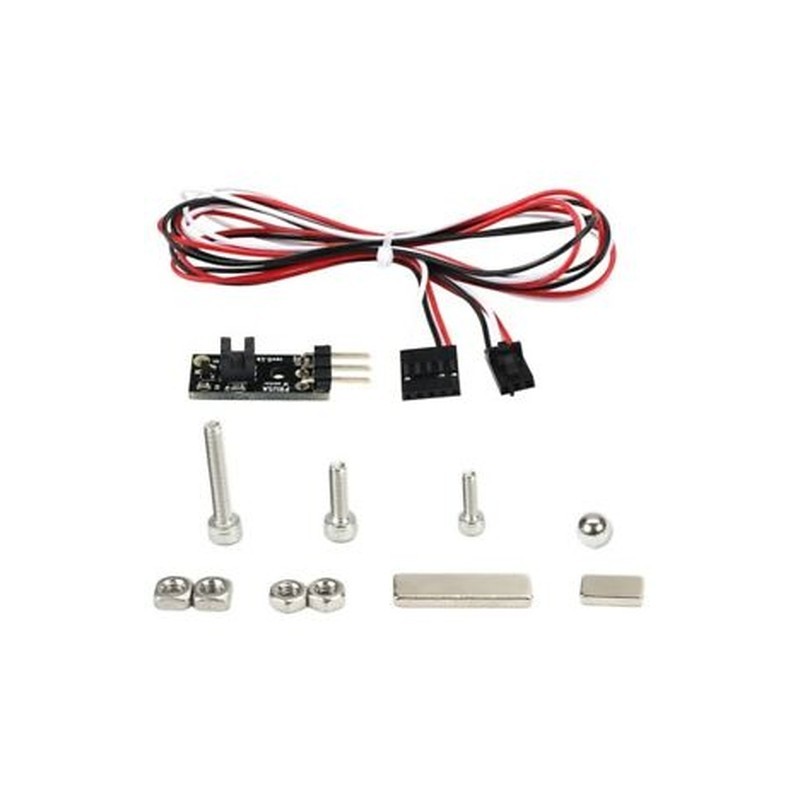

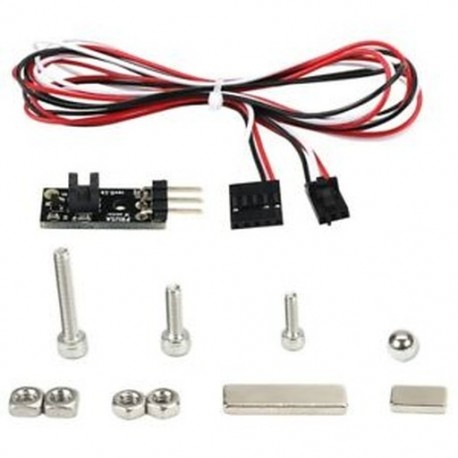

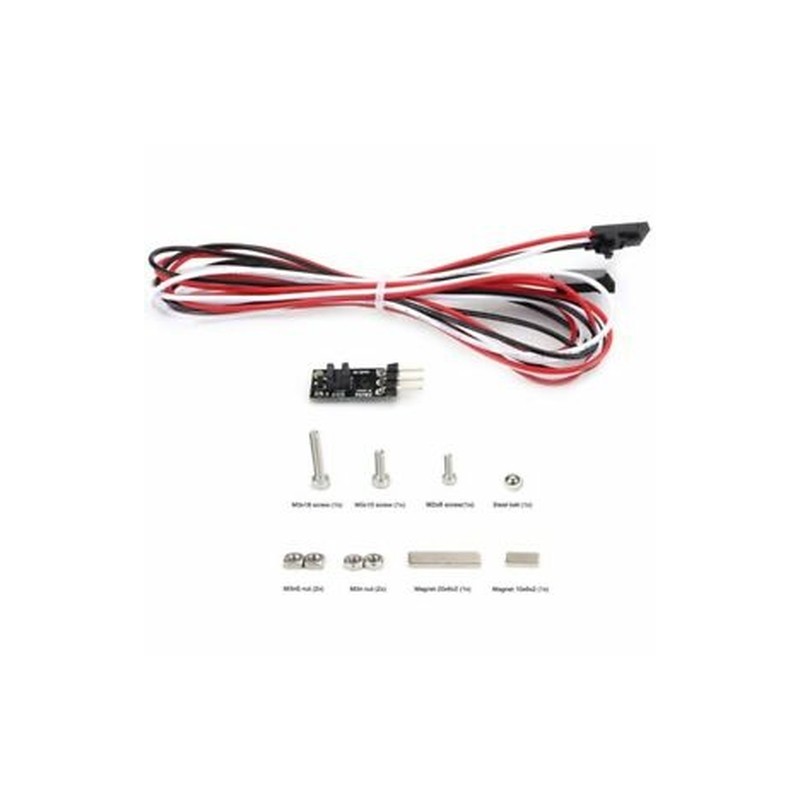

Package Content: 1* Sensor Module)
