5X (rámpák 1.6 bővítő vezérlőpult hűtőborda javított rámpákkal 1.4 / 1.5 f S4S2

5X(Ramps 1.6 Expansion Control Panel with Heatsink Upgraded Ramps 1.4/1.5 f S4S2

5X(About Ramps 1.6

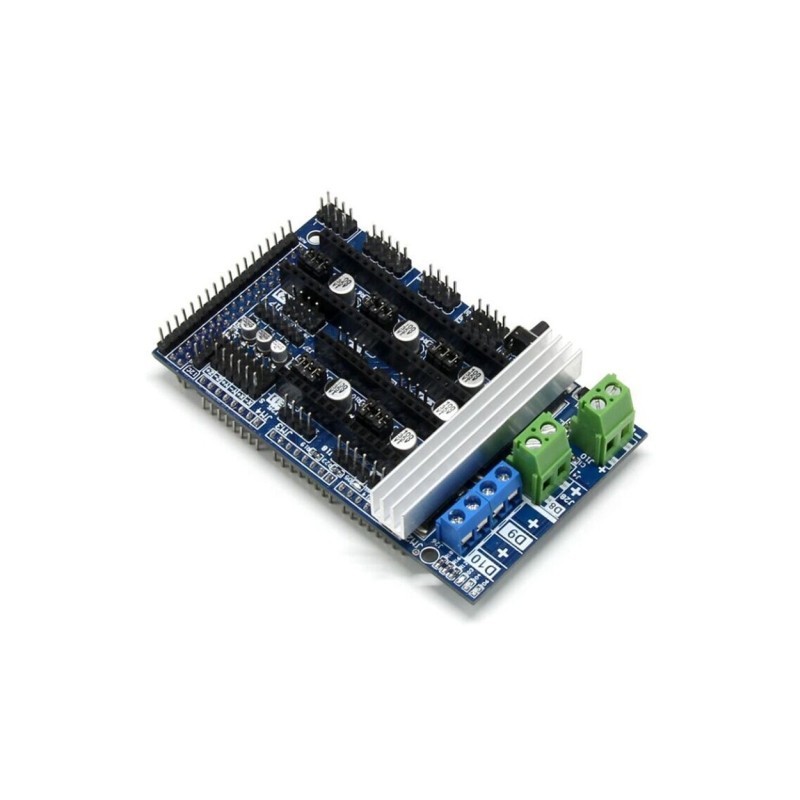

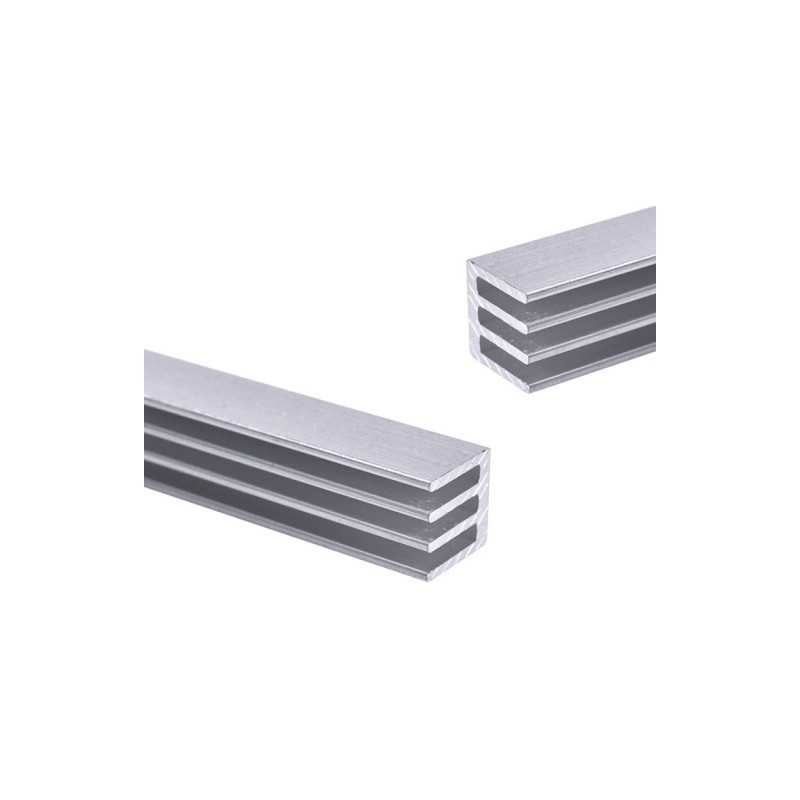

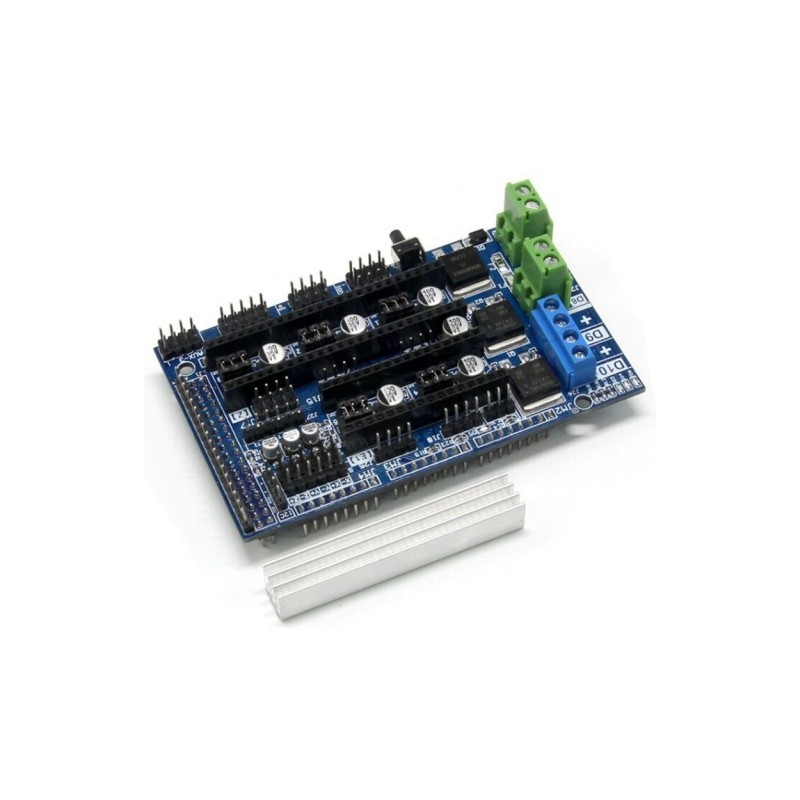

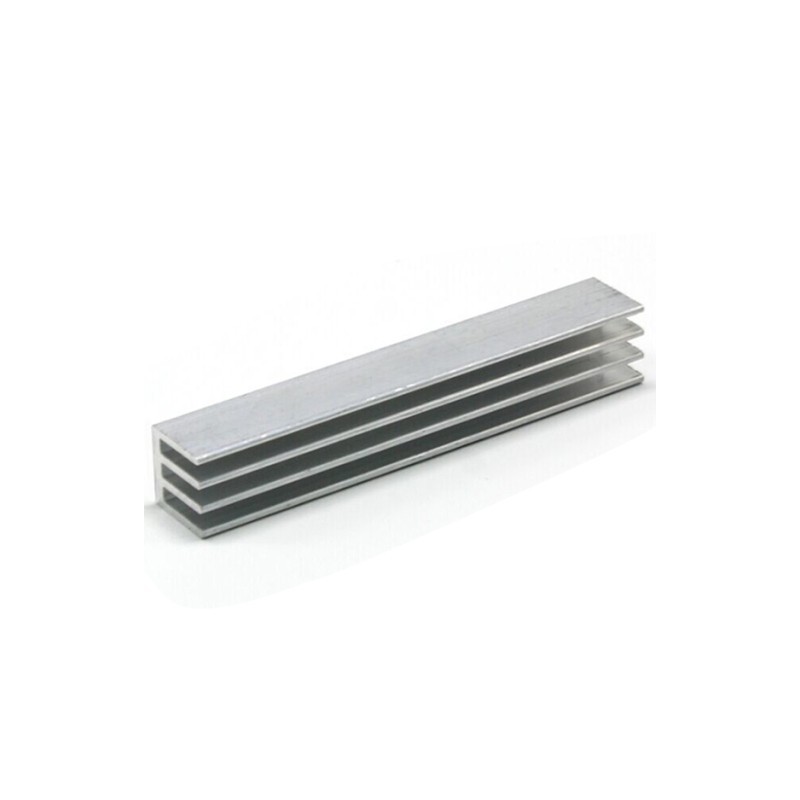

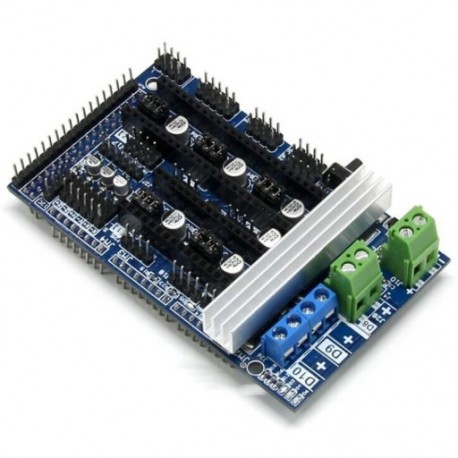

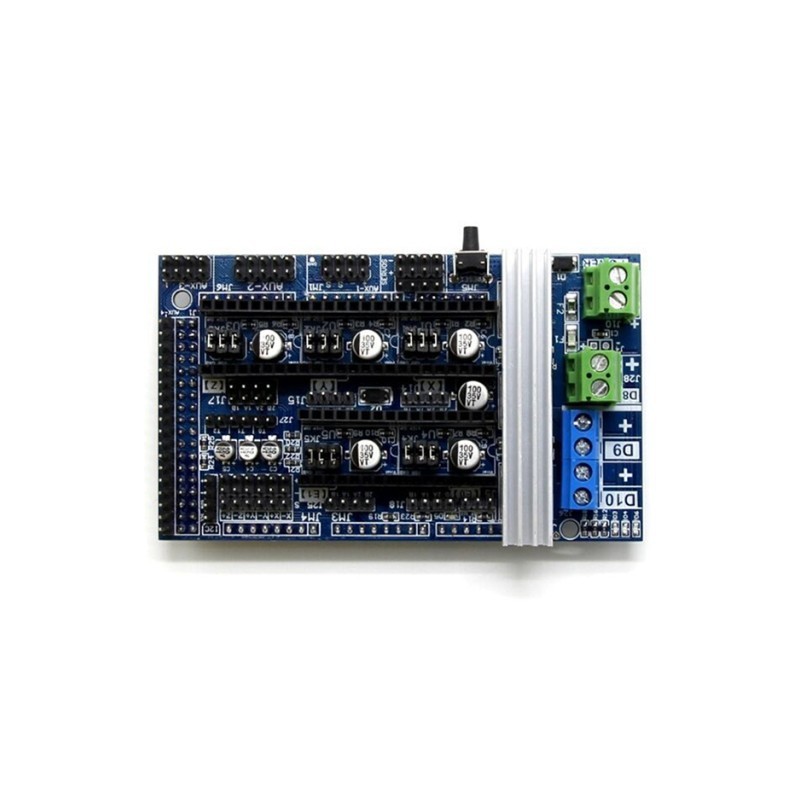

Ramps 1.6 is optimized and launched based on Ramps 1.4 & Ramps 1.5 by Biqu .The Struture almost same as Ramps 1.5 , the difference is Ramps 1.6 have new 2pin connectors,which more simple and convenient to connect,also will not be burnt easily,what`s more ,Ramps 1.6 have a good Heatsink above MOS tube in order to give a better function to heat dissipation .
Beside, the Power of Ramps 1.6 is more larger than Ramps 1.5, the largest power will be up to or 270W , and Ramps 1.5 just can be up to 200W, or samller than 200W
Product Features
1.It can be connected to LCD and other parts.
2.There are heater and fan MOSFET outputs and 3 thermistor interfaces
3.5A additional security and component protection fusion
4.Heated bed controls additional 11A fuses
5.Applied to 5 Pololu stepper drive board
6.Design of Pololu plate pin socket can be easily replaced or removed for future design
7.I2C and SPI pins are available for future expansion
8.Servo connectors are used for connecting limit stops, motors and light-emitting diodes.
These connectors are gold-plated and have a rated current of 3A, which is very compact.
9.The LED will light when the heater has output
10.Support 2 motors to connect to Z Prusa Mendel
Q: Why choose our ramps 1.6 type contorller board ?
A: You can check the different with the three-dimensional diagram.Our ramps 1.6 have 4 layer .A high quality ramps 1.6 effect more than 10pcs cheaper copy board .
Color: picture color
Material: plastic, metal
Packing list:
1 * ramps 1.6 type contorller board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.)
