5X (multifunkcionális feszültségáramú USB-tesztelő LCD-kijelző Adatrögzítő Pow G2U3

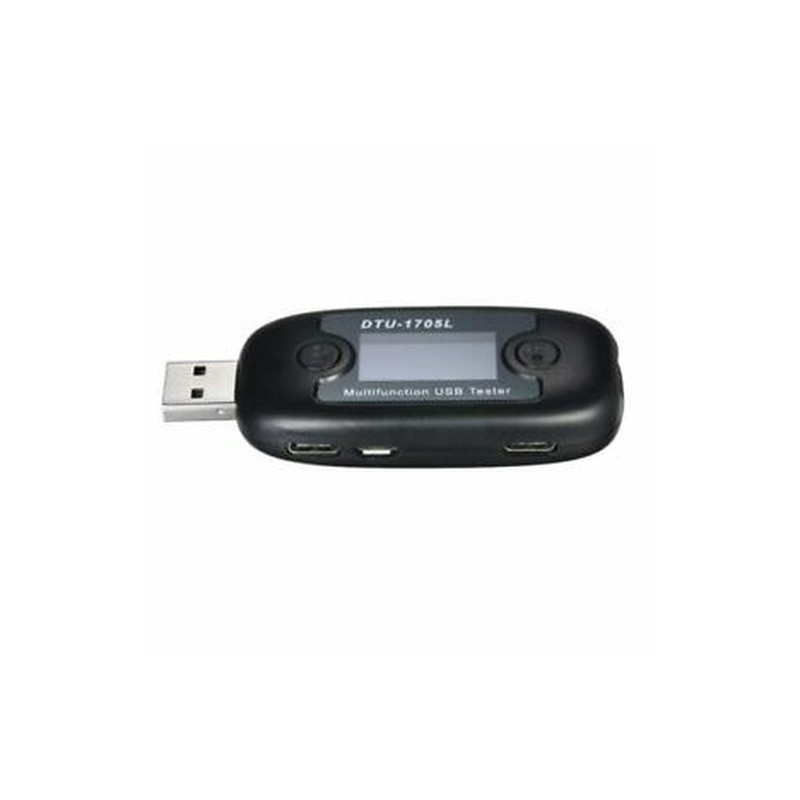

5X(Multi-functional Voltage Current USB Tester LCD display Data logging Pow G2U3

5X(With only two buttons for easy operation.
LCD display to show the data of voltage/current/capacity/wire resistance clearly. Includes data logging function.
Built-in Input Interface: USB-A, TYPE-C, Micro-USB.
Compact and portable design, convenient to carry. Wide Testing Range: Input Voltage: 4V~30V; Input Current: 0~5A.
Perfectly compatible with such electronic devices as phone, computer, power bank, wall charger, car charger, notebook, etc.
Note:
Please do not use it over 30V, or it will be destroyed.
Please do not reverse power supply, or the meter will be damaged.
When the output is off or current is less than 0.001A, the energy counter stop recording.
Specifications:
Model Number: USB Tester
Display Type: Digital Only
DIY Supplies: Electrical
Display: 128 * 64
Input Voltage: 4V~30V
Input Current: 0~5A
Voltage Resolution: 0.001V(1mV)
Current Resolution: 0.001A(1mA)
Voltage Accuracy: /-(0.2% 2d)
Current Accuracy: /-(0.3% 2d)
Power Consumption: 6~10mA
Capacity Counter: 0~9999.9Ah(Resolution 0.0001Ah)
Power Counter: 0~9999.9Wh(Resolution 0.0001Wh)
Input Interface: USB-A, TYPE-C, Micro-USB
Logger Capacity: 100 Group(Loop logging)
Log Rate: 0~60mins
Protocol Trigger: for QC2.0, QC3.0, FOR Apple,FOR HuaWei, FOR Samsung
Protocol Auto Test: Support
Item Weight: Approx. 22g / 0.78oz
colour: black
Material: ABS
size: Item Size: Approx. 8.2 * 3.3cm / 3.23 * 1.30in
Package Size: Approx. 16.1 * 7.2 * 1.8cm / 6.34 * 2.83 * 0.71in
Package Contents:
1 * USB Tester
1 * User Manual (English)
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.)
