2X (0-5 V-os terhelésmérő érzékelő, erősítő adó) Súly-jeladó C9S4 héjjal

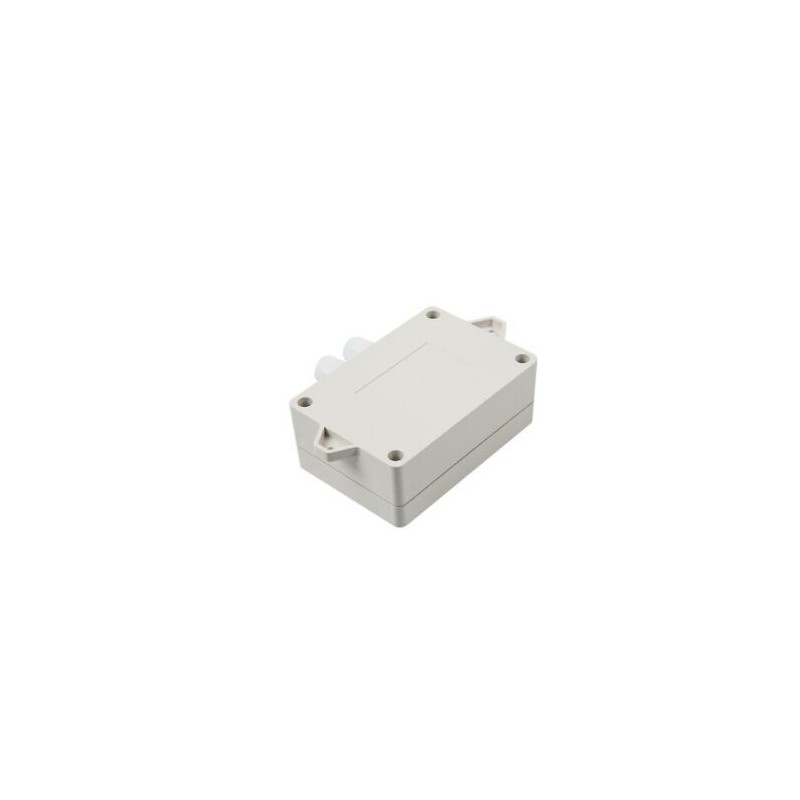

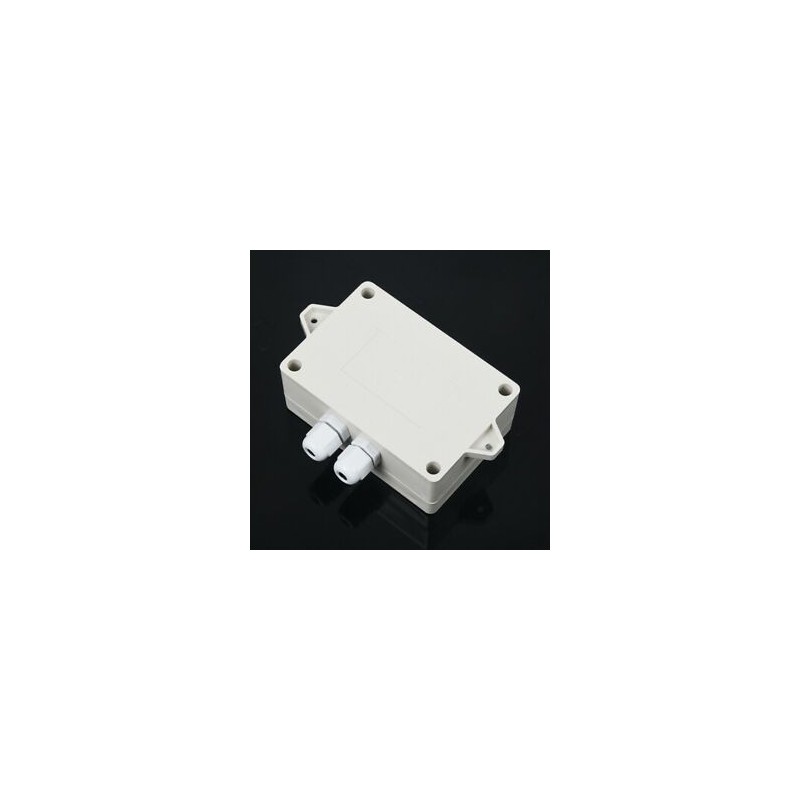

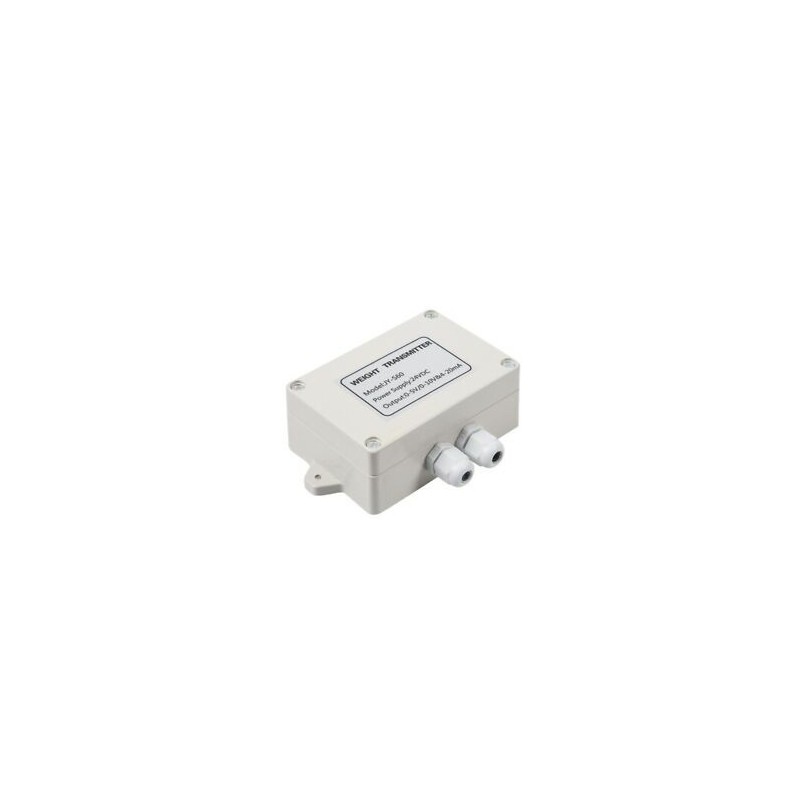

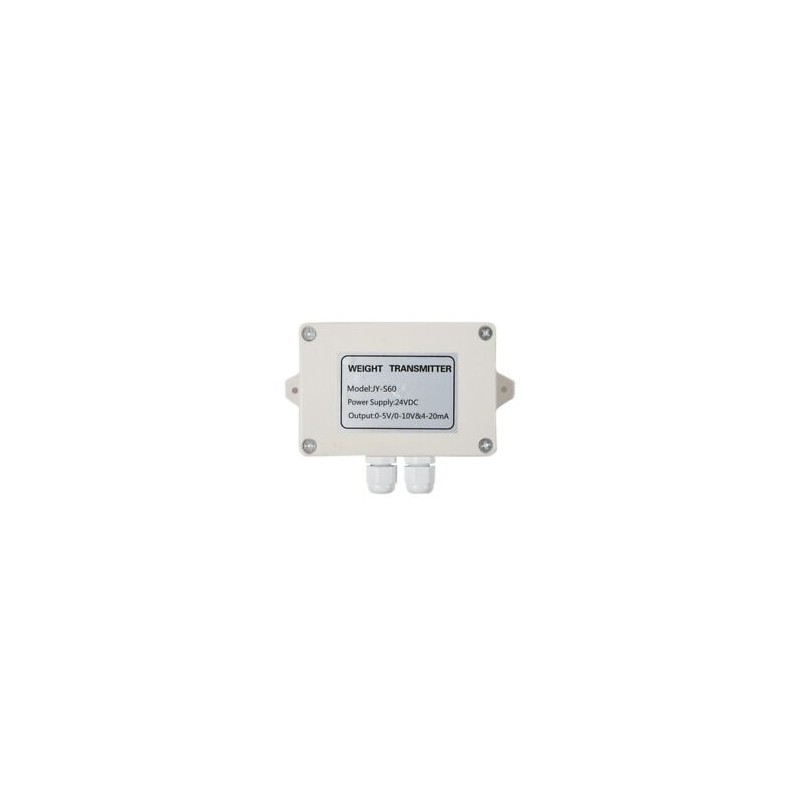

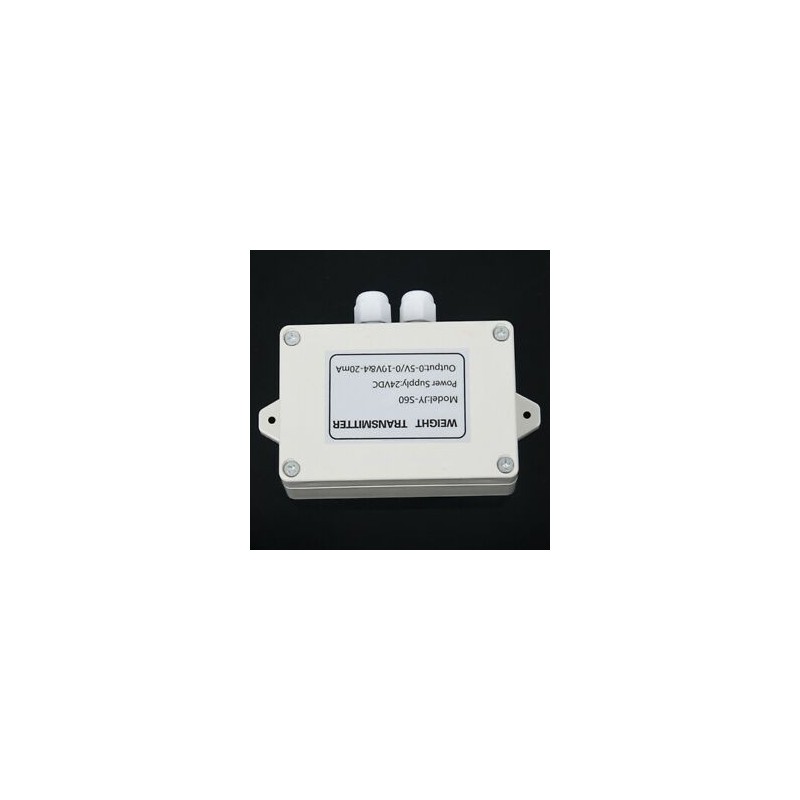

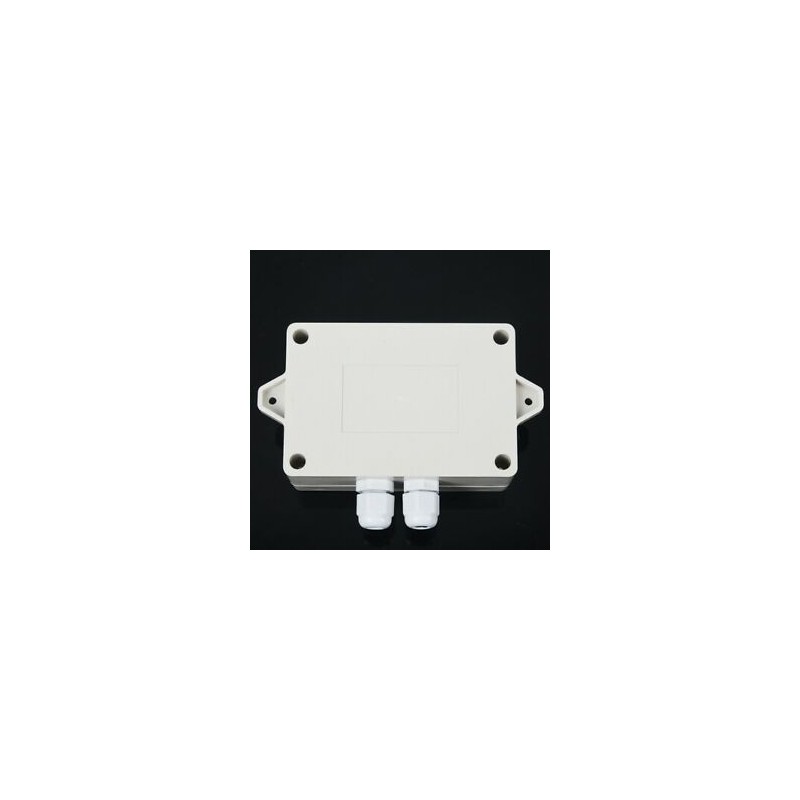

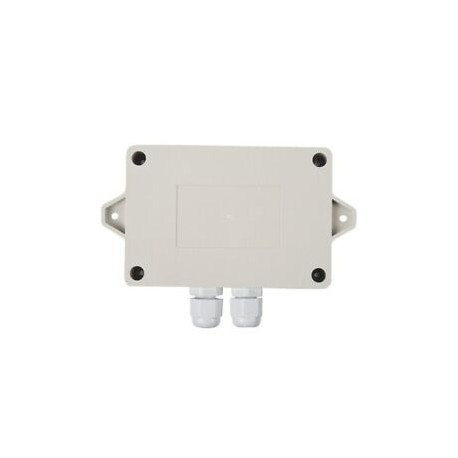

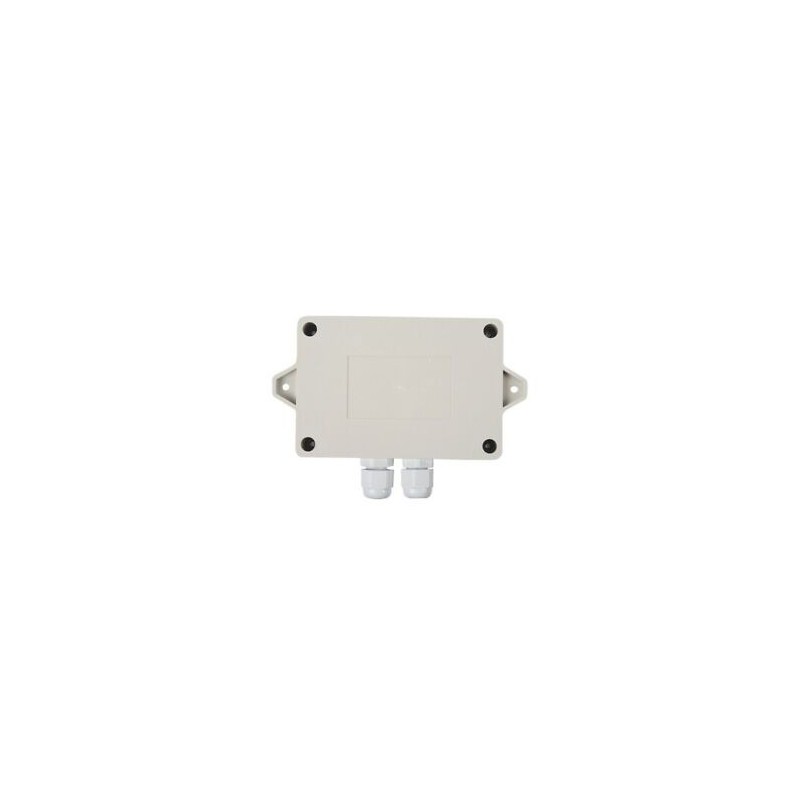

2X(0-5V Load Cell sensor Amplifier Transmitter Weight transducer With shell C9S4

2X(Housing and wire connectors are waterproof design, good sealing, suitable for harsh environments
Look beautiful, durable, anti-jamming performance
Ultra- high-precision op amp circuit, high accuracy, good stability
The power supply has reverse polarity protection, surge protection, overcurrent protection
Suitable for weighing, pull pressure, torque, and other strain sensor.
Color:green
Material:CCL
Working voltage: 12VDC, 24VDC
Input Sensor Sensitivity: 2.0MV / v
Output signal: voltage 0-5V
Operating temperature range: -20 - 80
Operating Humidity: 10% RH-90% RH (non-condensing)
Accuracy: better than 0.1% F.S
Precision is better than 0.05% F.S
1 zero adjustment
First of all, make the system is in the idle state, adjust the marking "ZERO" potentiometer to adjust the zero offset. The multimeter is used to measure the output voltage or current, let show a value as close as possible to the zero value display. Or change the magnification zero change will become big.
2 gain adjustment
The system loading a certain weight value (the recommended range: 80% ~ 100% FS), the calculation of the output current value according to the load weight and the maximum weighting value relation, using the digital multimeter monitoring output, potentiometer to adjust amplifier gain spin labeled "SPAN"
3 the retest
The system is in the idle state, measuring the zero output; loading a certain weight value, output voltage measurement whether fluoride expectation magnification If not, repeat steps 1, 2 adjust again..
Package Contents:1 x 0-5V Load Cell Sensor Transmitter With shell
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.)
