1X (DC 6,5-100 V 0-100A LCD kijelző Digitális áram feszültség Teljesítmény energiamérő W1U1

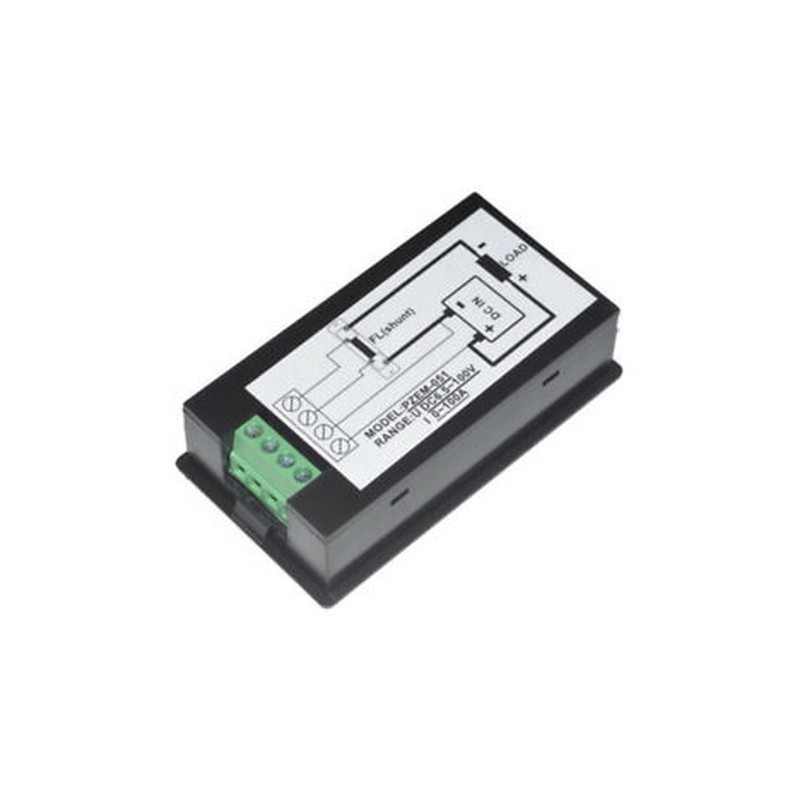

1X(DC 6.5-100V 0-100A LCD Display Digital Current Voltage Power Energy Mete W1U1

Rated power: 100A / 10kW
Measurement accuracy: 1.0
A. Function
1. electrical parameter measurement function (voltage, current, active power, power).
2. The power alarm threshold preset function (can set up their own power alarm threshold).
3. The power button clear function.
4. Power-down data storage function.
5. Large-screen LCD screen full display function (display voltage, current, active power, power).
6. Backlight.
B. display and key
Display Interface
Display voltage, current, power, energy parameters from the large-screen LCD screen simultaneously.
Display Format
C. Display
Power: measurement range 0 ~ 10kW:
1kW display format within 0.0 ~ 999.9W;
From 1kW display format 1000 ~ 9999W
2. Power: measurement range 0 ~ 9999kWh:
Below 10kWh display format 0 ~ 9999Wh;
Above 10kWh display format 10 ~ 9999kWh;
3. Voltage: Test Range 6.5 ~ 100V:
Display Format 6.50 ~ 99.99V
4. Current: Test Range 0 ~ 100A:
Display Format 0.00 ~ 99.99A.
D. Notes:
1. This module is suitable for indoor, not outdoor use.
2. Applied load can not exceed the rated power.
3. The wiring order can not be wrong.
4. This module is without shunt
colour:black
Material:plastic
Package Contents:
1 * Power Meter(Without Shunts)
