1X (3D nyomtatómotorok, 17 léptetőmotor 42-34 motor 1,8 lépcsős szög 1.5A 2 S4U8

1X(3D Printer Motors,17 Stepper Motor 42-34 Motor 1.8 Stepper Angle 1.5A 2 S4U8

widely work for Most 3D Printer Reprap Creality Ender 3 CR-10 CR-10s S5, Prusa i3 Monoprice selece mini, Makerbot Mendel Kossel Tevo printer etc.
High torque -Holding torque up to 0.35Nm. Low loss stators have better high speed performance.
Condition: 100% brand new
Number of phase: 2
Step angle: 1.8 degree
Rated Voltage: 4.83 V DC
Rated Current: 0.84A
Holding Torque: 0.35 Nm Typ.(Two phase on/rated current)
Phase Resistance: 5.75 ohm /-10% (20 Celsius）
Phase Inductance: 8.4mH /-20% (1kHz 1V rms)
Rotor Inertia: 38 g.cm2
Motor Weight: 0.22 kg
Insulation Class: B(130 Celsius)
Connection:
Yellow(A ), Green(A-), Red(B ), Blue(B-)
colour:black
Material:metal
size:42x42x34mm
39.3 in/ 1 Meter cable

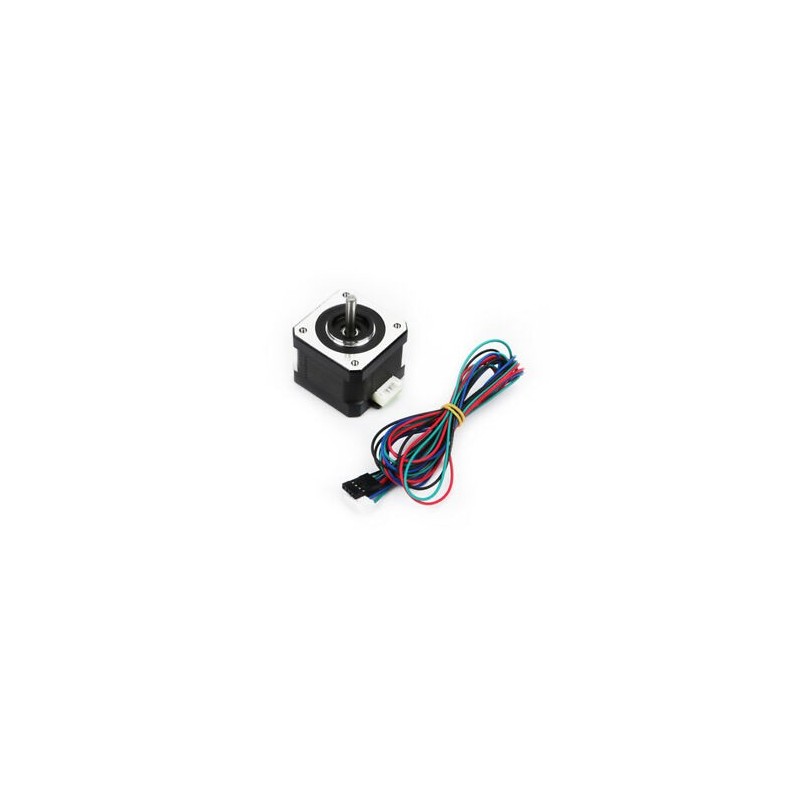

Package Contents:
1 x 42 Stepper Motor
1 x Cable
Warning:
Make sure the motor connect to a constant current or chopper drive controller before you test motor.
Connecting the motor directly to a power supply will destroy the motor.
