1X (1 db 4-20mA 4-csatornás áramjel-generátor modul kártya Digital Sou P5A0

1X(1 Pcs 4-20mA 4 Channel Current Signal Generator Module Board Digital Sou P5A0

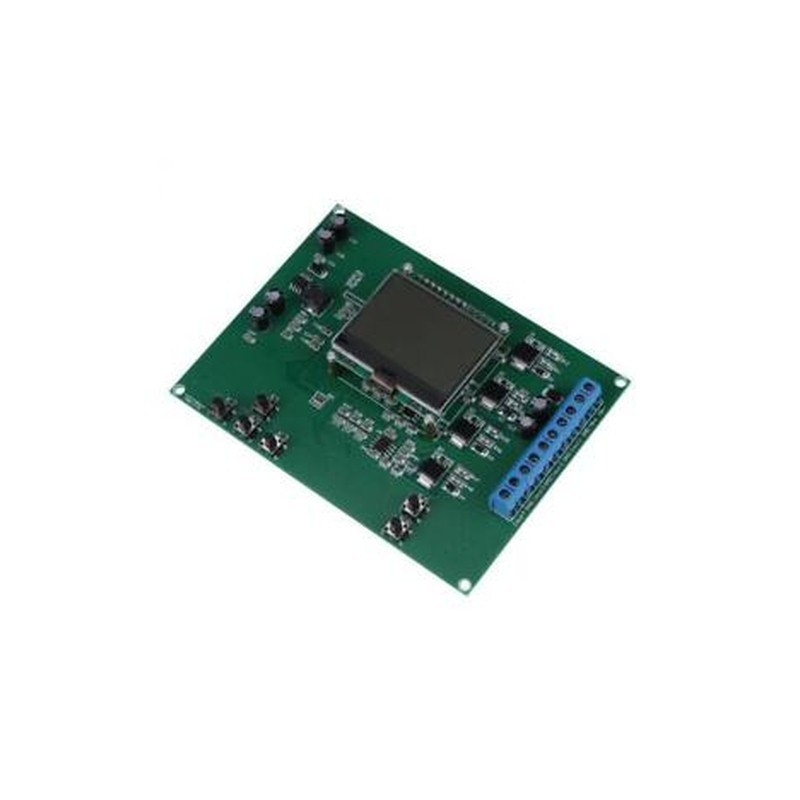

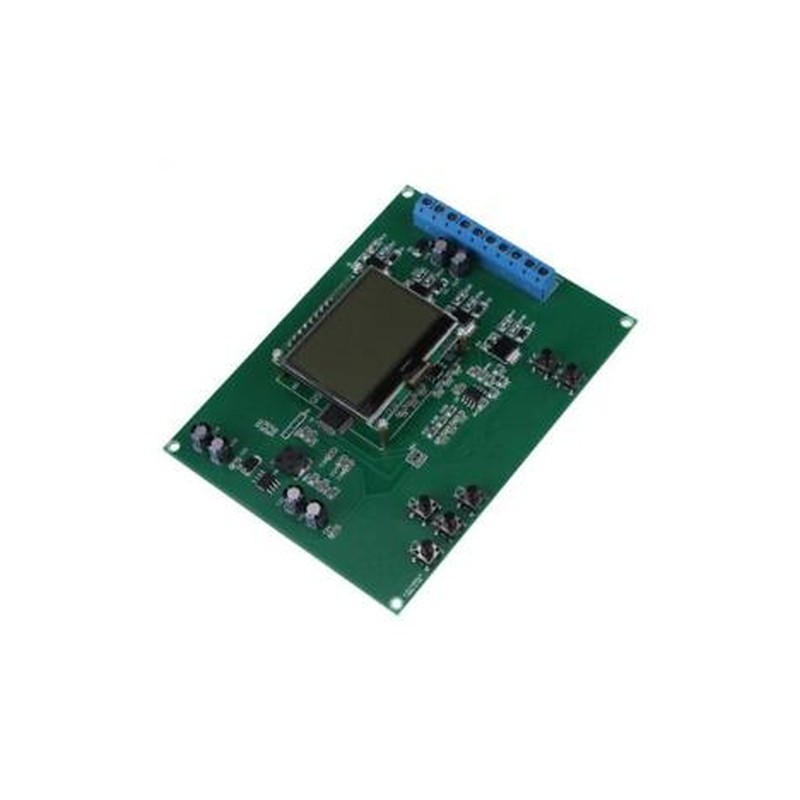

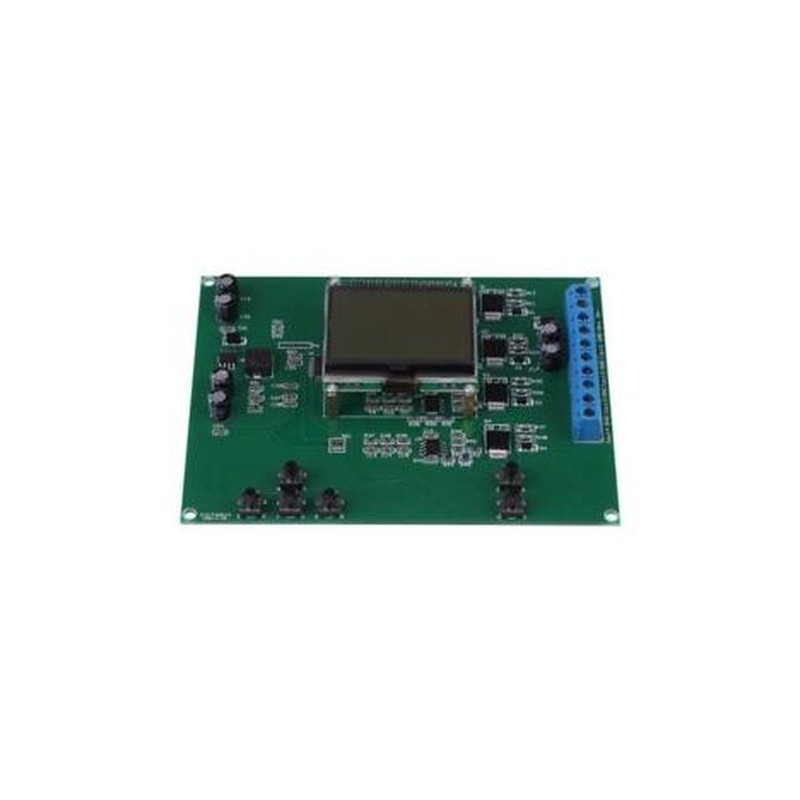

This module is a multichannel current signal generator that generates 4 channels 4~20mA current signal. The module is simple to use and input data by keystroke operation, and the output signal is updated immediately
Use 12864 LCD display. Active output current 0~20mA. Display resolution 0.01mA and control accuracy 0.1mA. Polarity protection of input voltage.Can analog transmitter output. Compatible for signal generator, valve regulator, and instrument calibration.

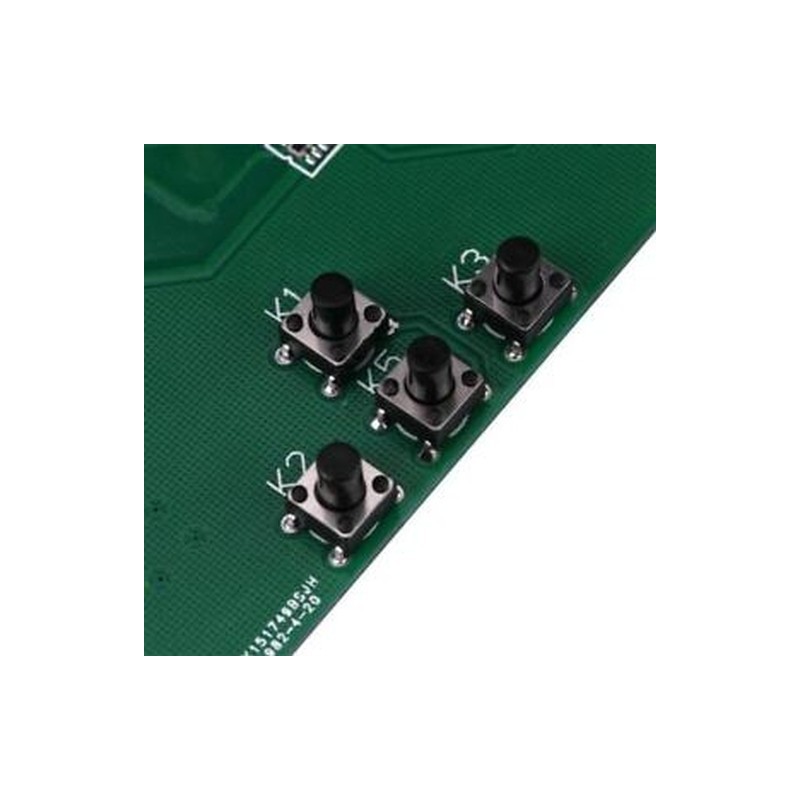

Using Methods & Steps: Output current OUT1 setting: Press K1 or K5 Key to switch to OUT1 Setup interface. Press K2 or K3, output current value increases 0.01 MA step by step. Hold down K2 or K3, output current value increases 0.01MA step by step. Output current OUT2 setting: Press K1 or K5 Key to switch to OUT2 Setup interface.
Press K2 or K3, output current value increases 0.01 MA step by step. Hold down K2 or K3, output current value increases 0.01MA step by step.
Output current OUT3 setting: Press K1 or K5 Key to switch to OUT3 Setup interface. Press K2 or K3, output current value increases 0.01 MA step by step. Hold down K2 or K3, output current value increases 0.01MA step by step. Output current OUT4 setting: Press K1 or K5 Key to switch to OUT4 Setup interface. Press K2 or K3, output current value increases 0.01 MA step by step. Hold down K2 or K3 output, current value increases 0.01MA step by step.
colour: blue
Material: PC metal
12864 LCD display: Yes
Output current: 4~20mA
Resolution: 0.01mA
Control accuracy: 0.1mA.
Application: signal generator, valve regulator, and instrument calibration.
Size: Approx. 12 x 9 x 2CM / 4.72 x 3.54 x 0.19inch
Weight: 75g

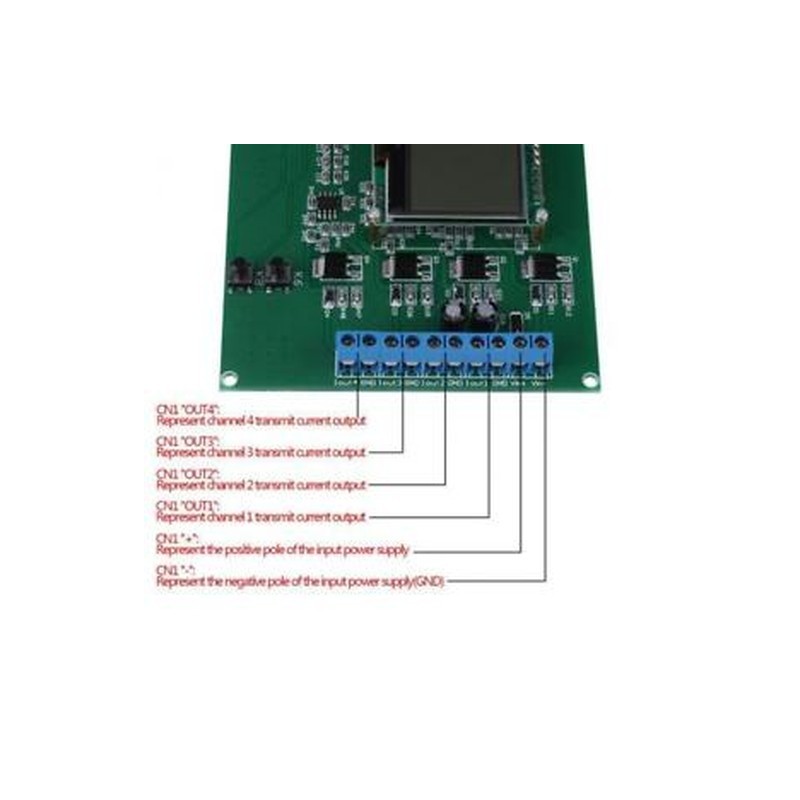

Interface description and related operations:
Interface(Power interface):
CN1 " ": Represent the positive pole of the input power supply.
CN1 "-": Represent the negative pole of the input power supply(GND)
CN1 "OUT1": Represent channel 1 transmit c
