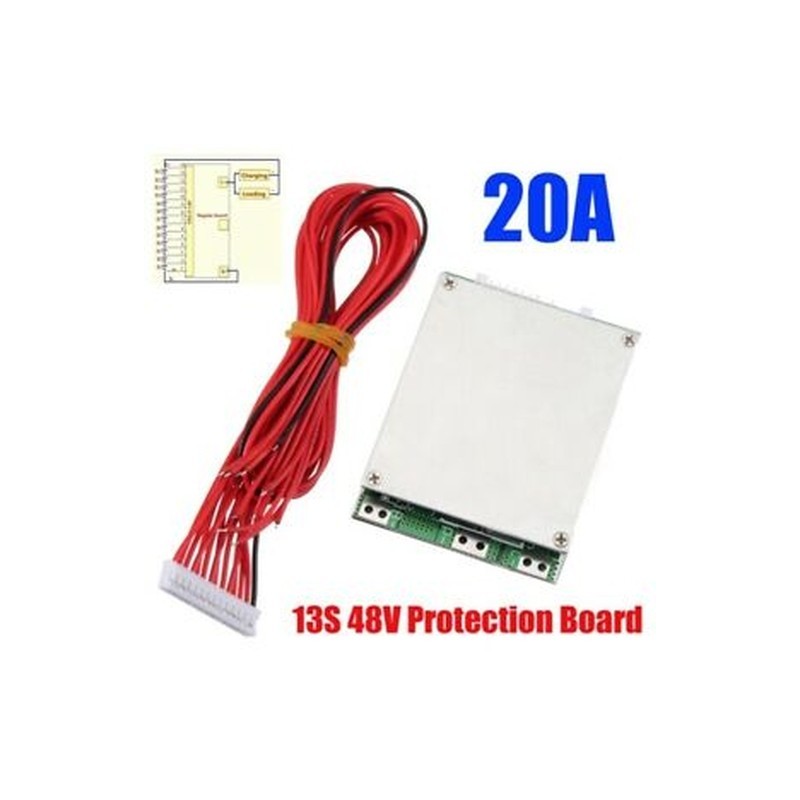

13S 48V 20A lítium-cellás lítium cellás akkumulátor védelem Bms PCB kártya védelem X6I2

13S 48V 20A Li-Ion Lithium Cell Battery Protection Bms Pcb Board Protection X6I2

Continuous discharging current:20A
Instantaneous diacharge current:100A
Charging voltage:54.6V
Charging current:20A(Max.)
Over-charge detect:4.28±0.05V
Protect delay:100ms
Color: Silver Green
Material: metal PCB
Over-charge release:4.08±0.05V
Over-discharge:2.55±0.08V
Over-discharge detect delay:50mS
Release voltage:2.9±0.1V
Detect voltage:150mV
Detect delay:15mS
Current detect:120±5A
Resistance:≤15mΩ
Working current:≤50uA
Sleep Current(when Over-discharge):≤10uA
Working temperature:-30~80℃

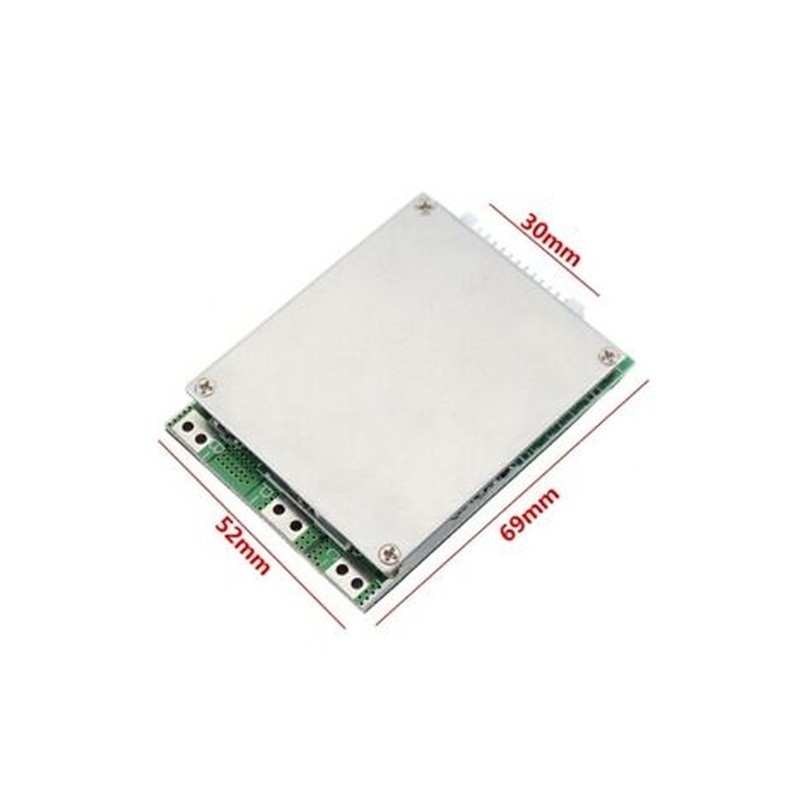

Size:69mm*52mm*8mm
Main function:
Over charge protection, over discharge protection function, short circuit protection
function, over current protection function,no with band-balance.

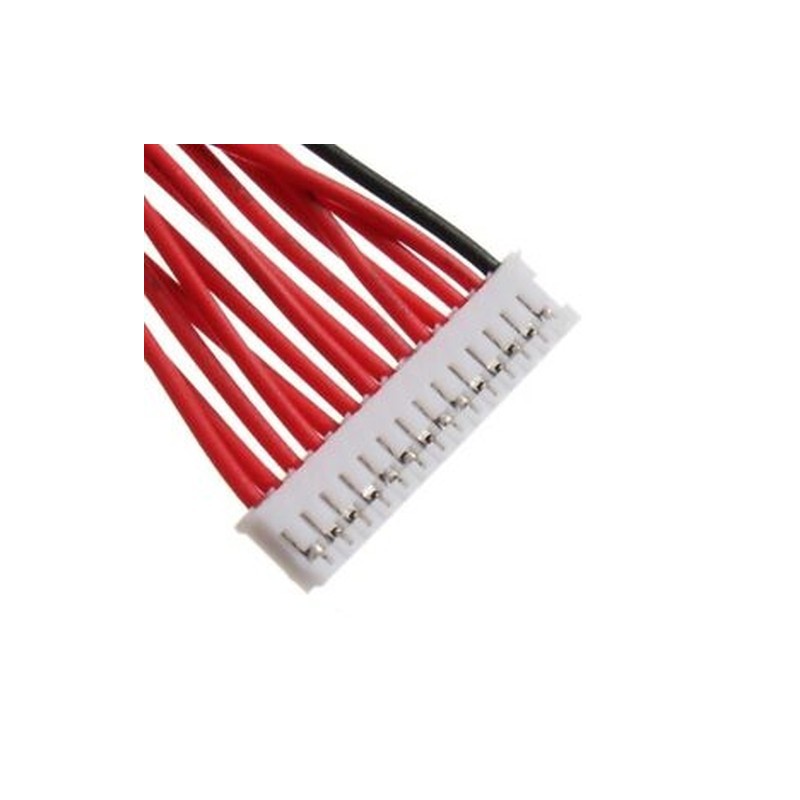

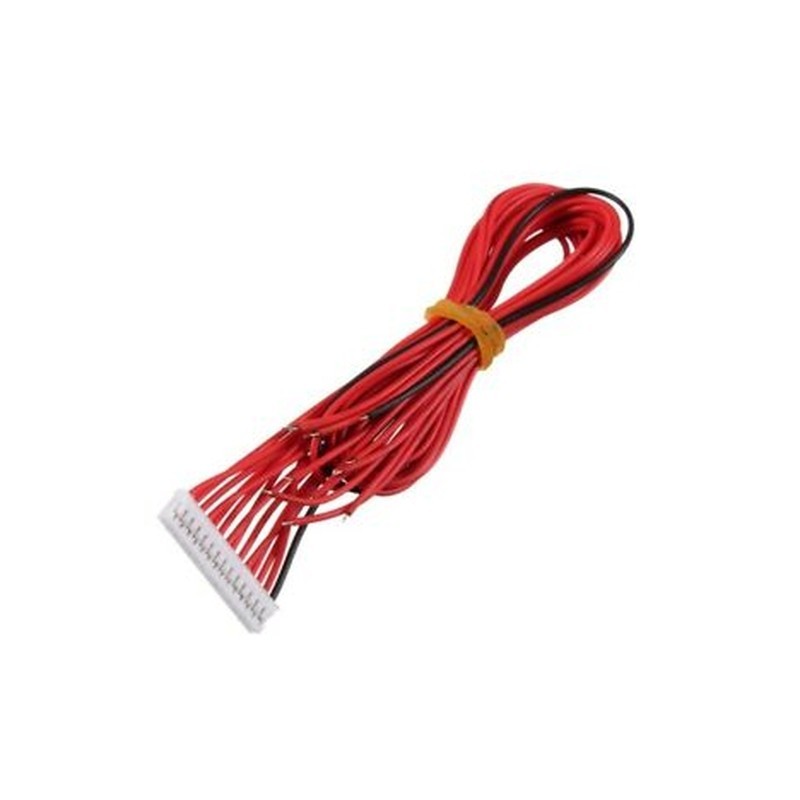

Connections:
Step1:Connect charging /discharging wire , battery pack negative wire
Step2: After confirm the wires are connected OK, plug the connector cable in the BMS
DO NOT plug CONNECTOR CABLE in the BMS before connect wire!!
Package include:

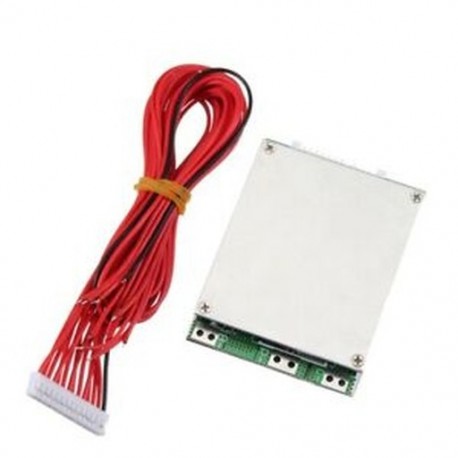

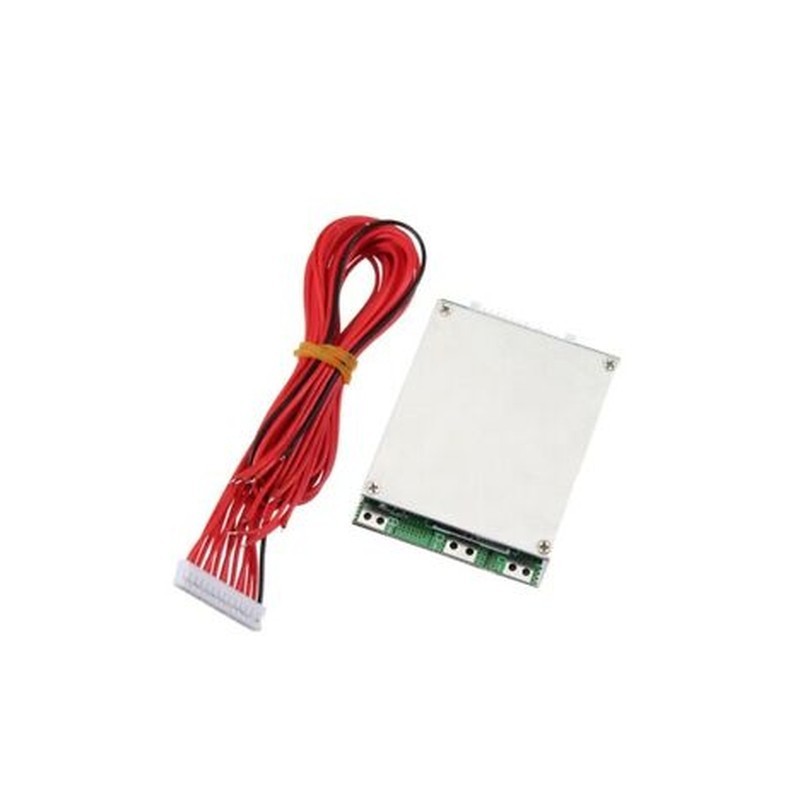

1x 13S 48V 20A Li-ion Battery Protection Board
