0,91 hüvelykes IIC I2C SPI 128x32 fehér OLED LCD kijelző modul Arduino PIC I4N6-hoz

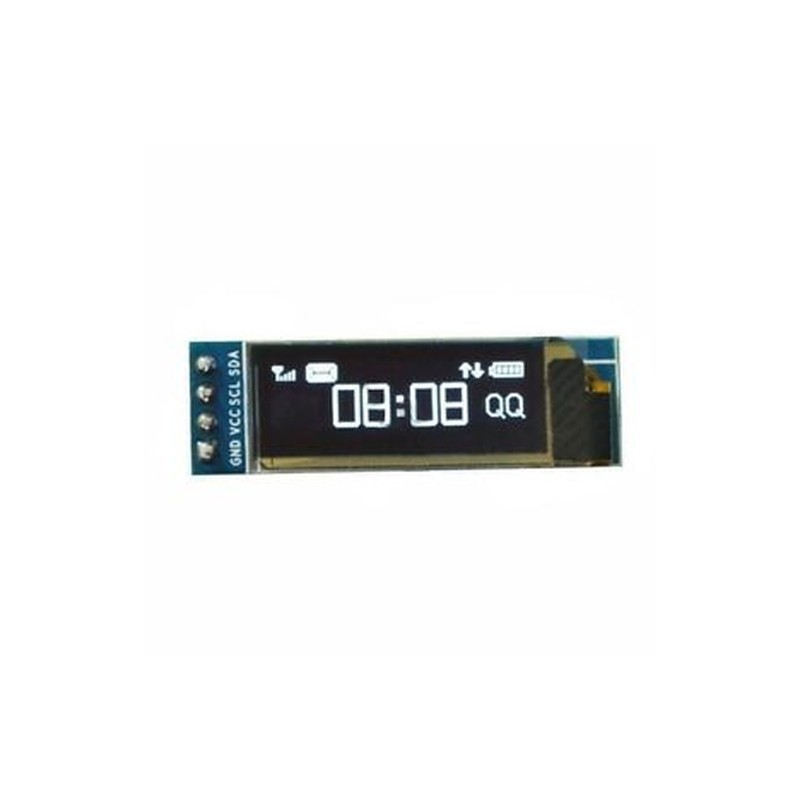

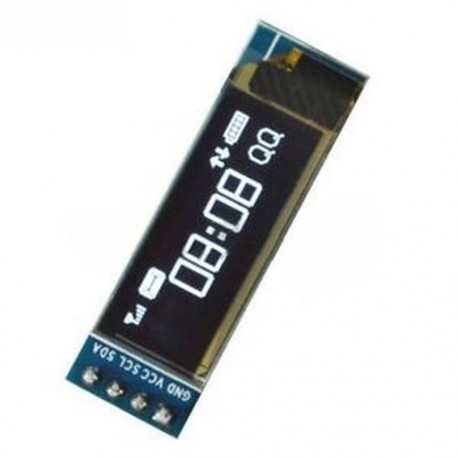

0.91 inch IIC I2C SPI 128x32 White OLED LCD Display Module For Arduino PIC I4N6

Driver IC: SSD1306
Size: 0.91 inch OLED
Resolution: 128 x 32
Font Color: white
Voltage: DC 3.3-5V
material: plastic
PIN Interface: IIC or SPI optional
OLED display, no need backlight, self-illumination, the display performance is better than the traditional LCD display, also lower consumption.
IIC Pin definition:
GND: Power Ground.
VCC: Power (DC 3.3 ~5v).
SCL: Clock Line.
SDA: Data Line.
SPI Pin definition:
GND: Power ground
VCC: Power
CLK: Clock line
MOSI: Data cable
RES: Reset line
DC: Data/commands
CS: Chip select (when not use can be grounded directly)
Packaged included:
1 x 0.91 inch OLED LCD Display Module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
