2PCS 39 hüvelykes SMA dugasz és BNC dugasz adaptercsatlakozó RF koaxiális Pigtail cabl S1X0

2PCS 39-inch SMA male to BNC Male Adapter Connector RF coaxial Pigtail cabl S1X0

100% Brand New ,Low signal attenuation; Used widely for router, booster and WLAN Wifi antenna convertion; The antenna adapter will connect your devices to the antenna to provide better reception in no signal areas; Connector: one end is SMA Male, the other end is BNC Male. Product Name : SMA to BNC Coaxial CableConnector Type : SMA Male to BNC Male;Cable Length : 1M /39.37 inch;Color : Champagne Gold Gold SilverNet Weight : 80gMaterial:MetalCable and Connectors Electrical Characteristics: Capacitance(pF/m):96.45Impedance(ohm):50Velocity(% ):70Bending radius(mm):13Max.operation voltage(VMS):1200Max.operation frequency(MHz):3000Operating Temperature range( Celsius ):-50 to 200Cable Attenuation(Typical value): For 100MHz frequency, Attenuation less than 0.262dB...
2PCS 39-inch SMA male to BNC Male Adapter Connector RF coaxial Pigtail cable P1V3
100% Brand New ,Low signal attenuation;
Used widely for router, booster and WLAN Wifi antenna convertion;
The antenna adapter will connect your devices to the antenna to provide better reception in no signal areas;

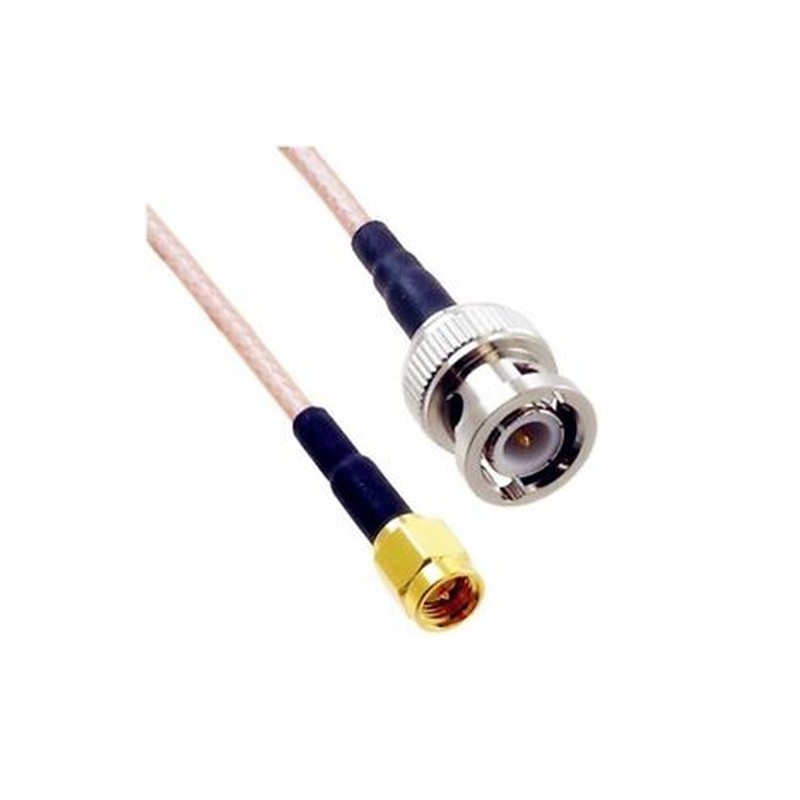

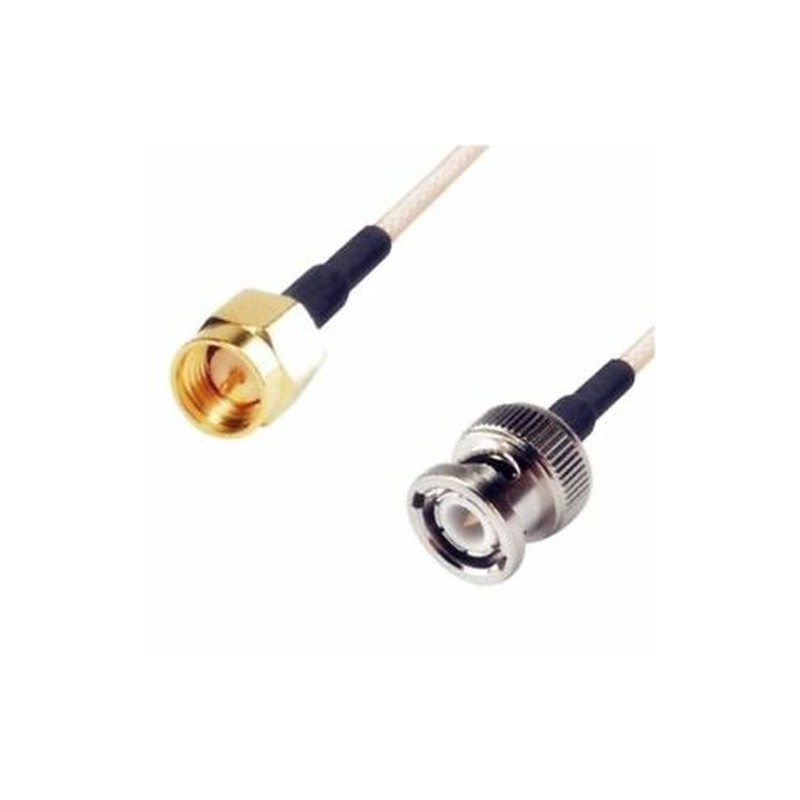

Connector: one end is SMA Male, the other end is BNC Male.
Product Name : SMA to BNC Coaxial Cable
Connector Type : SMA Male to BNC Male;
Cable Length : 1M /39.37 inch;
Color : Champagne Gold Gold Silver
Net Weight : 80g
Material:Metal
Cable and Connectors Electrical Characteristics:
Capacitance(pF/m):96.45
Impedance(ohm):50
Velocity(% ):70
Bending radius(mm):13
Max.operation voltage(VMS):1200
Max.operation frequency(MHz):3000
Operating Temperature range( Celsius ):-50 to 200
Cable Attenuation(Typical value):
For 100MHz frequency, Attenuation less than 0.262dB/m;
For 400MHz frequency, Attenuation less than 0.531dB/m;
For 1000MHz frequency, Attenuation less than 0.856dB/m;
For 3000MHz frequency, Attenuation less than 1.532dB/m.

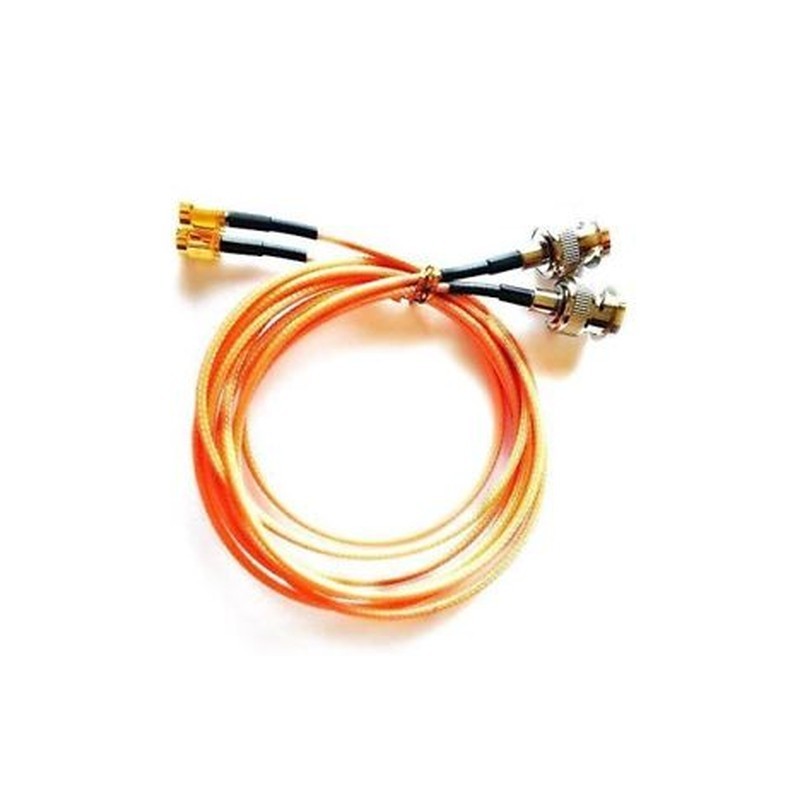

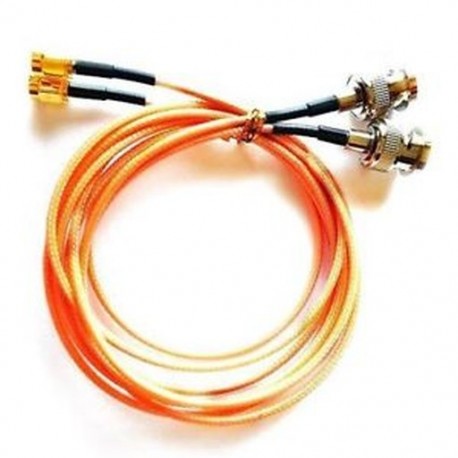

Package Include: 2 x RF SMA male to BNC male coaxial cable
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
