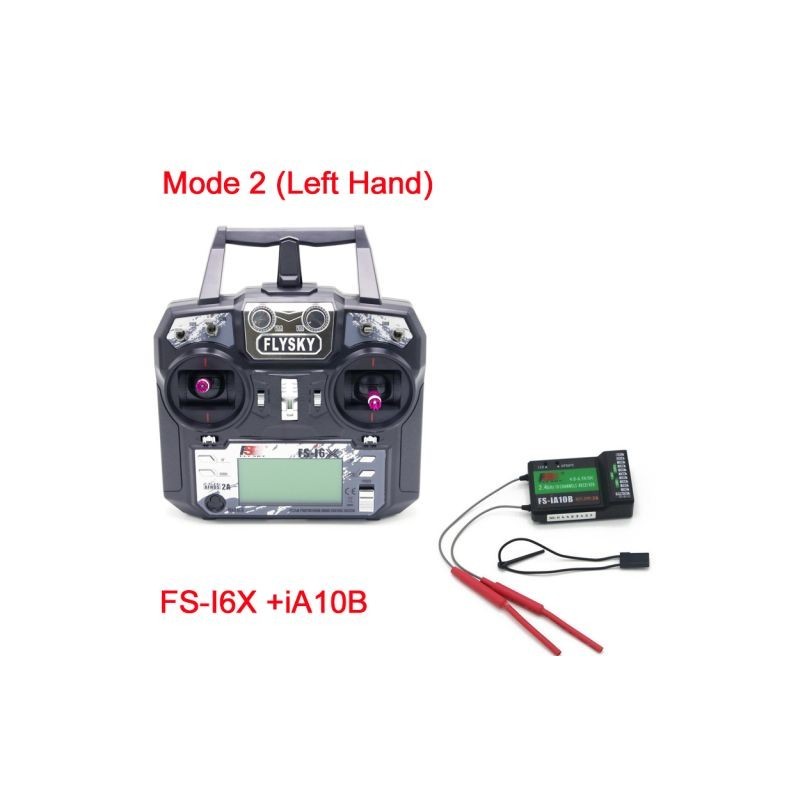

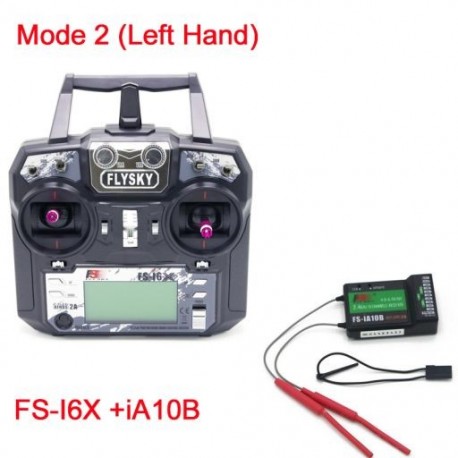

Szín: mode2 i6X IA10B-vel - Eredeti Flysky FS-i6X 10CH 2,4GHz AFHDS 2A RC adó FS-iA6B FS-iA10B FS-X6B FS-A8S vevővel Rc

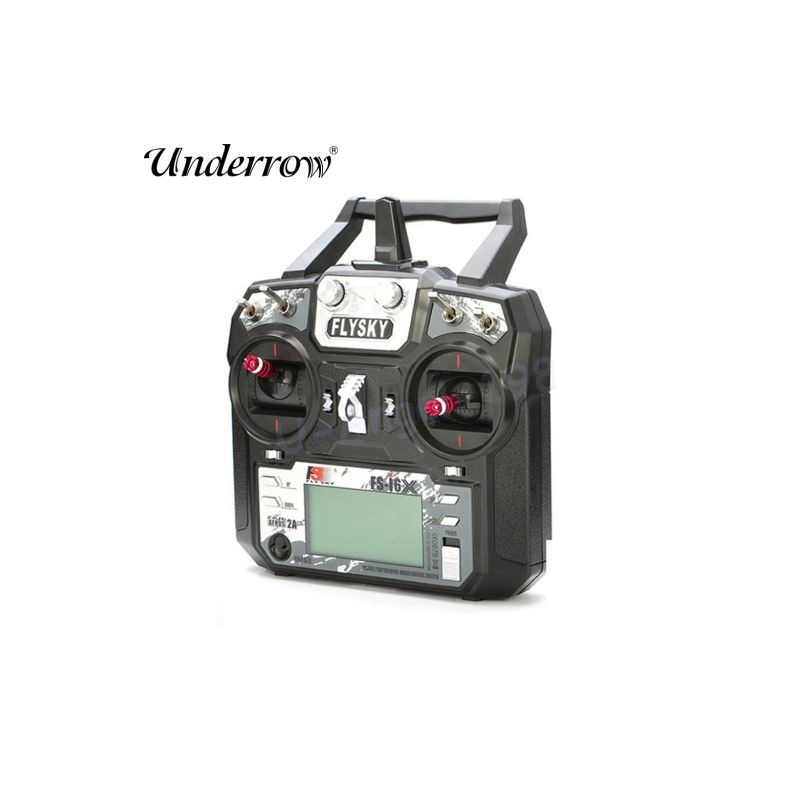

FS-i6X Specifications:
Item: FS-i6X RC
Transmitter
Channel: 6-10 (Default 6)
Model Type:
Fixed-Wing/Glider/Helicopter
RF Range: 2.408-2.475GHz
RF Power: <
20dBm
RF Channel: 135
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A /
AFDHS
Modulation Type: GFSK
Stick Resolution 4096
Low Voltage Warning:
< 4.2V
DSC port: PS/2 Port PPM
Chargeable: No
Antenna Length: 26mm
(Dual Antenna)
Weight: 392g
Power: 6V DC 1.5AA*4
Display:
STNTransflective Display, LCD 128x64 Lattice, VA 73x39mm, LCD with white
backlight
Size: 174x89x190mm
On-line Update: Yes
Color:
Black
Certificate: CE0678, FCC ID: N4ZFLYSKYI6X

X6B i-BUS Specifications:
Brand Name:
Flysky
Item: X6B i-BUS Receiver
Channels: 6(PWM), 8(PPM),
18(i-BUS)
Model Type: Multi-Totor
RF Range: 2.408-2.475
GHz
Brand Wigth: 500KHz
Number of bands: 135
RF Power: No
more than 20 dBm
RX Sensitivity: -95dBm
2.4GHz protocol:
AFHDS 2A
Modulation Type: GFSK
Stick resolution: 1024
Low voltage
alarm: Yes
DSC port: PPM/PWM/i-BUS
Antenna Length: 93mm (Dual
Antenna)
Power input: 4.0-8.4V
On-line Update:
Yes(Wireless)
Range: >300m
Weight: 4.5g
Size:
36*22*7.5mm
i-BUS Port: Yes
Certificate: CE0678, FCC ID:
N4ZX6B00
Item Name: IA6B
Channel: 6
Model type: fixed
wing/helicopter/glider
RF receiver sensitivity: -105dBm
Modulation:
GFSK
System type: AFHDS2A/AFHDS
Channel resolution: 1024 steps
Bind
port: yes
Power port: yes( VCC)
Power: 4V -6.5V DC
Weight:
14.9g
Antenna lenght: 26mm
Size: 47.4*262.2*15 mm
Certificate: CE
,FCC
FS-A8S:
Brand Name:Flysky
Item Name:FS-A8S
Receiver
Channels: PPM 8CH, i-BUS 18CH
Model type: Multi-rotor

Frequency range: 2.408-2.475GHz
b and width: 500KHz

b and number: 135
RX Sensitivity: -92 dBm
2.4GHz system:
AFHDS 2A
Modulation type: GFSK
DSC port: PPM/i-BUS/S.BUS
Transfer
method: FHSS
Data output: 1.5mm*3 Pin  PPM/i-BUS/S.BUS
Antenna
length: 26mm (Not including brass contacts)
Input power supply:
4.0-8.4V
Display method: LED
No ground interference ( Transmitting and
receiving 1 m from the ground): >300m
Working current: 40mA
Each
channel data: depend on the transmitter
Channel delay: <15mS
Size:
20*14*5.3mm
Weight: 1.2g
Certificate: CE0678, FCCID:
N45ZA8S00
FS-IA10B:
Number of Channels: 10
Suitable models: Airplane / glider / helicopter
Health
Frequency range :2.4-2 .48 GHz
Number of newspapers:
160
Transmitting power: not more than 20dBm
Receiver
sensitivity:-105dBm
2.4G modes: automatic frequency second generation digital
system
Encoding: GFSK
Antenna length: 26 mm * 2 (dual antenna)
Weight:
19.3 g
Input power :4.0-6 .5 V DC
Dimensions: 47 * 33.1 * 14.7
mm
Color: Black
Certification: CE0678, FCC
i-BUS Interface: Yes
Data
acquisition interface: Yes
Package Included:
1X Flysky FS-i6X 10CH
2.4GHz AFHDS 2A RC Transmitter
1X Flysky Receiver
