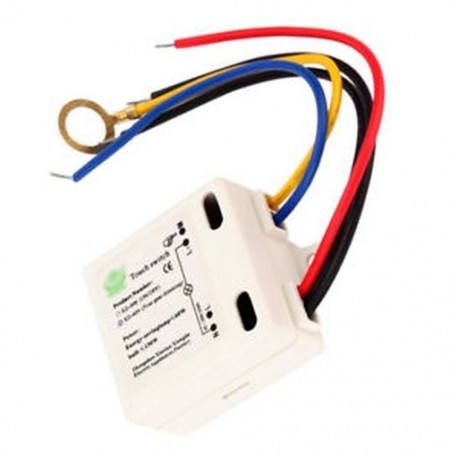

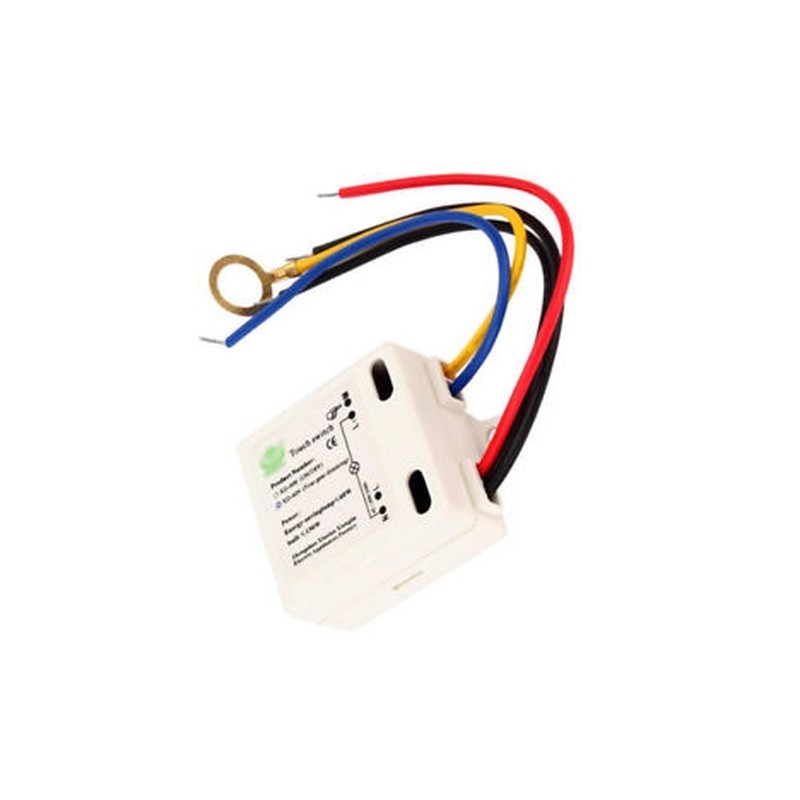

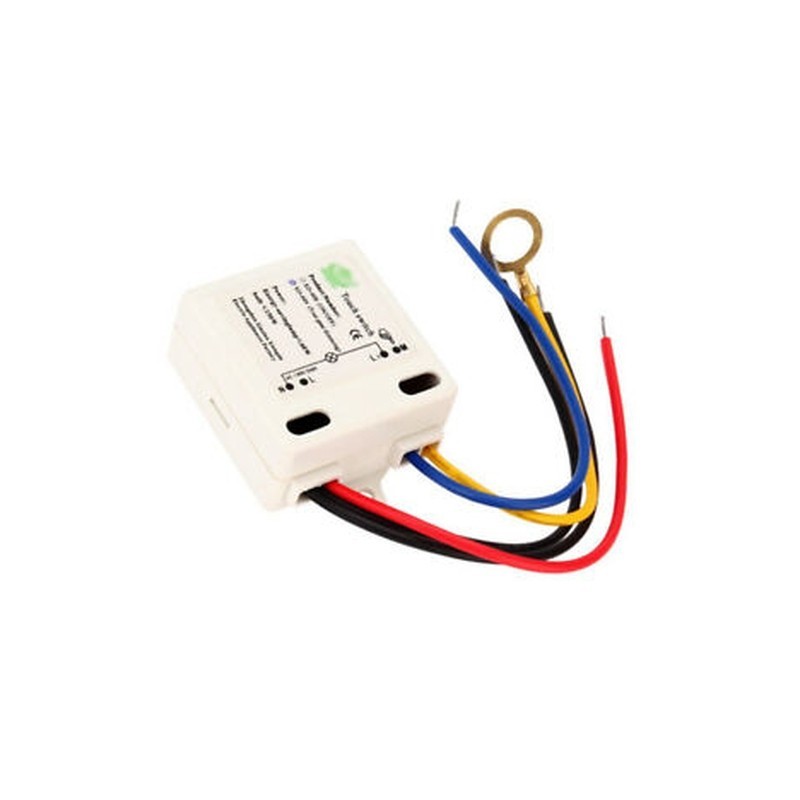

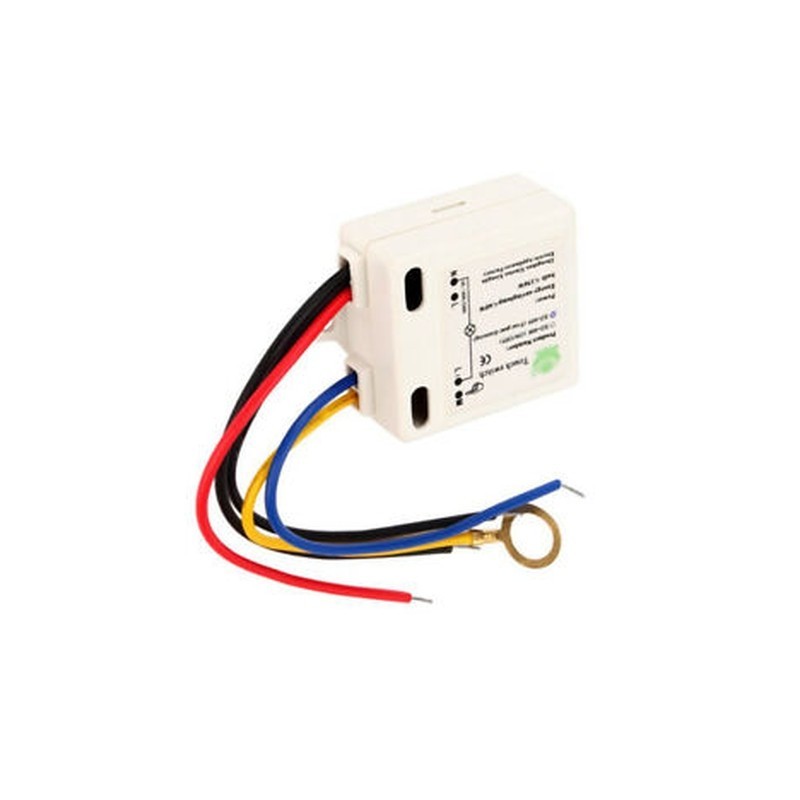

Xiongda XD-609 4-módú On / Off kapcsoló érintőérzékelője B5X T7H2 220 V-os volfrámlámpához

Xiongda XD-609 4-Mode On / Off Switch Touch-Sensor for 220V tungsten lampLoad power: 5-200WHow to Connect:1. The red line is connected to the 220V input positive wire.2. The Black Line connect to negative 220V input wire.3. the other black and blue lines are connected to the lamp,4. the yellow line is the touch signal lines.This touch switch applies to the lamp with metal housing, and the lamp house comes from the L1.77x0.44ED lamps, when the human touch of all parts of the metal lamp body, it will meet the following requirement: (3 levels: low, medium, High and then off):A. Touch time: the lamp will be at low light;B. touch again: the lamp in medium light;C. touch once again: the lamp in the high light;Model: XD-609Color: whiteThe cable length: approx. 12cm...
Xiongda XD-609 4-Mode On/Off Switch Touch-Sensor for 220V tungsten lamp B5X T7H2
Xiongda XD-609 4-Mode On / Off Switch Touch-Sensor for 220V tungsten lamp
Load power: 5-200W
How to Connect:
1. The red line is connected to the 220V input positive wire.
2. The Black Line connect to negative 220V input wire.
3. the other black and blue lines are connected to the lamp,
4. the yellow line is the touch signal lines.
This touch switch applies to the lamp with metal housing, and the lamp house comes from the L1.77x0.44ED lamps, when the human touch of all parts of the metal lamp body, it will meet the following requirement: (3 levels: low, medium, High and then off):
A. Touch time: the lamp will be at low light;
B. touch again: the lamp in medium light;
C. touch once again: the lamp in the high light;
Model: XD-609
Color: white
The cable length: approx. 12cm.
The cover size: Approx.4x4.2x2.2CM
Weight: 28g
Package Included:
1 x On / Off Touch switch
Note: Light shooting and differnent displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3 cm.
