Hot Sale 3D Printer Heated Bed Power Module 210A MOSFET upgrade RAMPS 1.4 X7Z3

Colour:black
Material:CCL

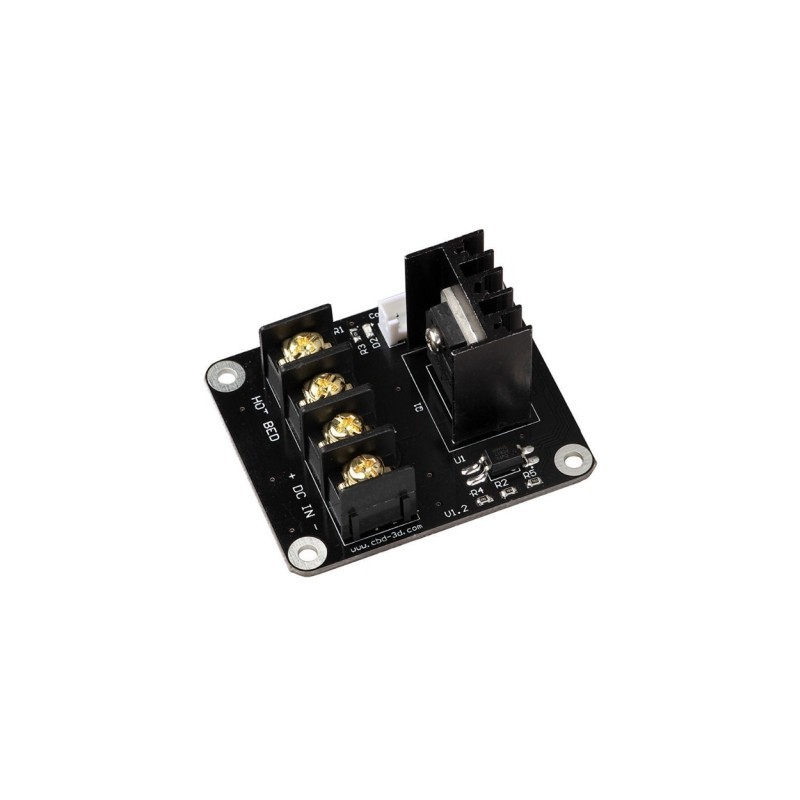

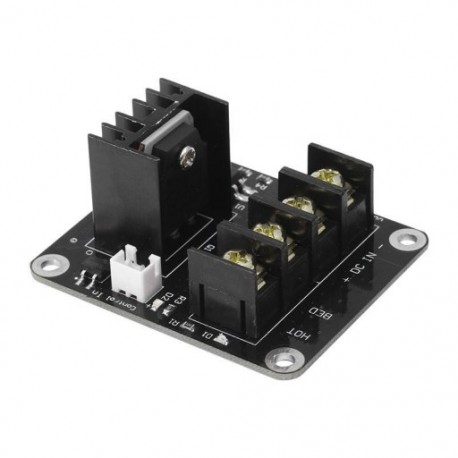

Heated bed power module
Based on powerful MOSFET HA210NO6
Size: 60*50mm
Mounting holes: 3.2mm diameter, for M3 screws.
Distance betweeen holes: 54*43mm
Very powerful MOSFET to withstand higher current than normal RAMPS or other 3D Printer controller can handle
Voltage: 12V-24V
Maximum current with active cooling: 210A
This module is based on power MOSFET and will allow PID control of the heated bed (DC-DC Relays usually do not allow this)
Package including:
1 x Heated Bed Power Module
1 x Connection cable for input signal
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
