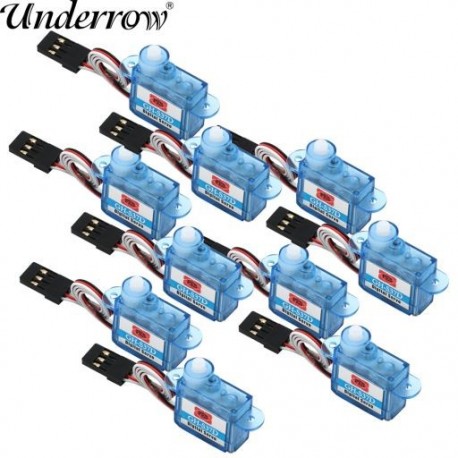

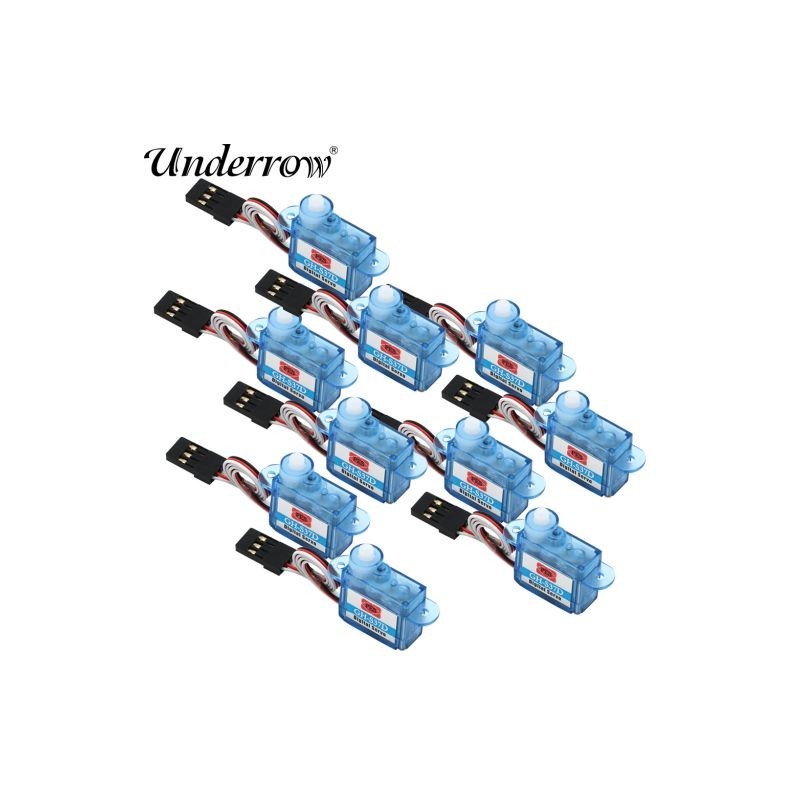

Szín: 2db - 2/5/10/20/50 db GH-S37D 3,7g Digital Servo Mini Micro Servo Hollow Cup RC repülőgép helikopterhez csónak

Weight: 3.7g
Servo Type: digital servo
Motor Type: hollow cup
Use: vehicles & remote control toys
Line Length: 150mm
Dimensions: 20.0 x 8.75 x 22.0 mm
Torque: 0.5kg/cm (at 3.6V) 0.7kg/cm (at 4.8V)
Speed: 0.13sec/60°(at 4.8V) 0.10sec/60°(at 6V)
Working Voltage: 3.6v-4.8v
Operating Temperature: 0 °C -60 °C
Standard Signal: 1000 to 2000 microseconds
Working Angle: 90°
Current: <300mA
Dead Zone Setting: 4 usec
Operating Speed(at no load): 0.15 Sec/60° 0.1 Sec/60°
Running Current(at no load): ≤ 10 m A ≤40 m A
Stall Torque(at locked): 0.42±0.1 kg-cm 0.6±0.1 kg-cm
Stall Current(at locked): ≤60 m A ≤200 m A
